27Section 7 — Service

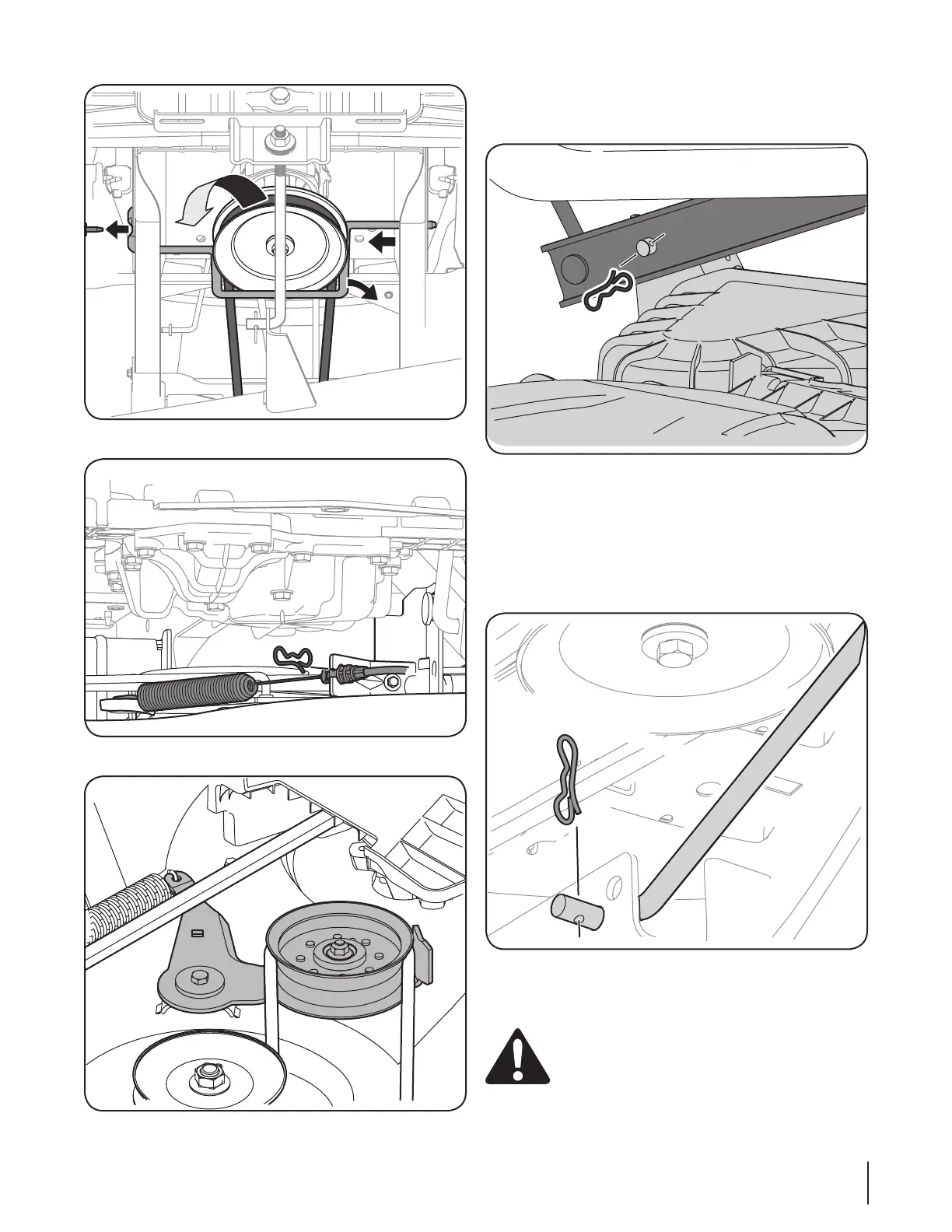

Figure 7-1
Figure 7-2
Figure 7-3
11. Looking at the cutting deck from the left side of the tractor,
locate the bow-tie pin on the rear left side of the deck. See
Figure 7-4.
Figure 7-4
12. Remove the pin and slide the deck pin out of the deck lift
arm. See Figure 7-4.
13. Repeat the above steps on the tractor’s right side.
14. Pull the bow-tie pin out of the front deck lift rod securing it
to the deck. See Figure 7-5. Slide the deck lift rod out of the
front hanger bracket.
Figure 7-5
15. Move the deck lift lever into the top notch to raise the deck
lift up and out of the way.
CAUTION: There is a certain amount of spring tension
due to the weight of the deck. When removing the lift
linkage from the deck the tension of the springs will go
from the deck to the deck lift handle and snap back.
16. Gently slide the cutting deck out from underneath the tractor.
To Next Page
