Section 6— Maintenance & adjuStMentS
Deck Spindle

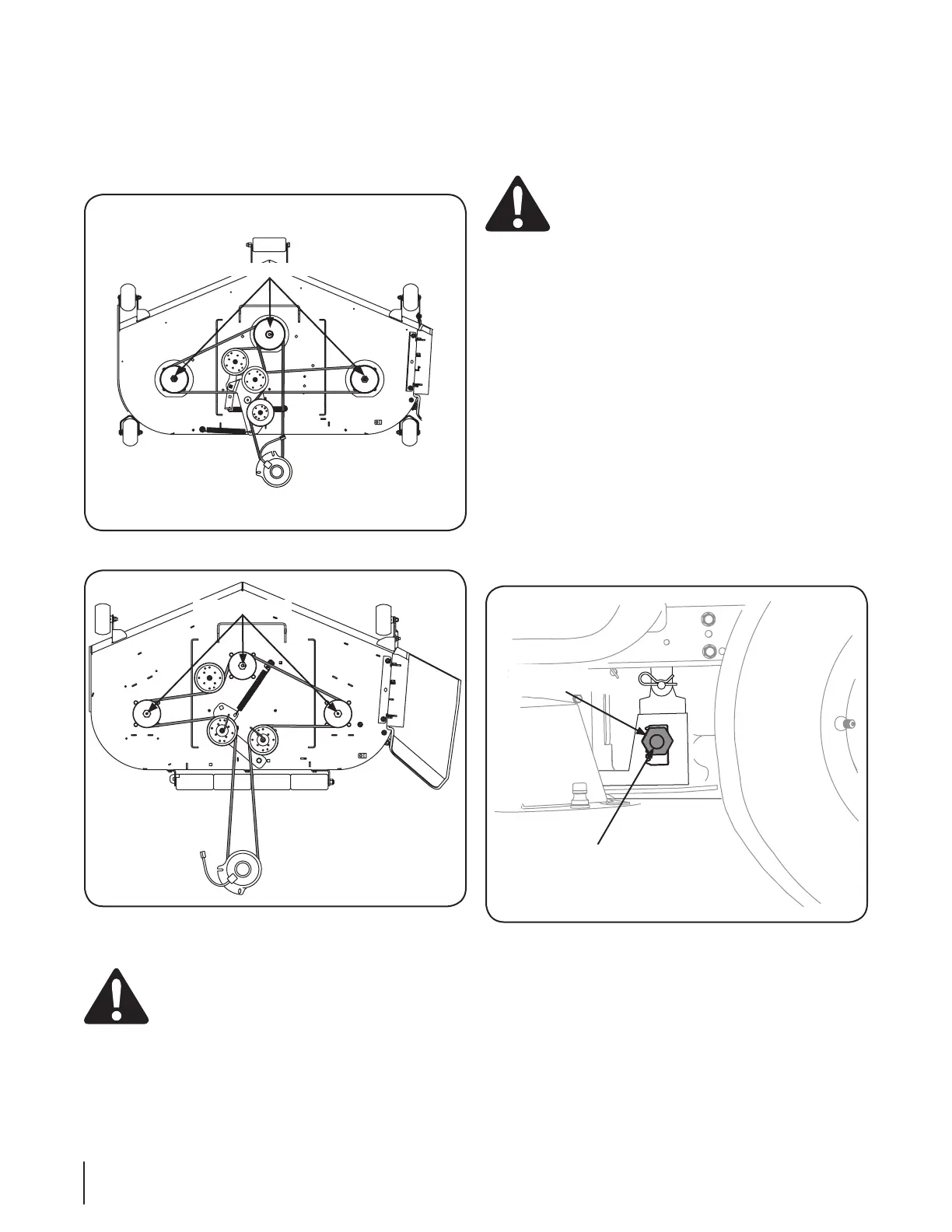

Grease fittings can be found on top of each spindle bolt. See
purpose lithium grease. Using a grease gun, apply two strokes
(minimum) or sufficient grease to the spindle shaft.
Figure 6-4
Figure 6-5
Tires
WARNING! Never exceed the maximum inflation
pressure shown on the sidewall of the tire.
recommended or maximum psi. Do not overinflate. Uneven tire
pressure could cause the cutting deck to mow unevenly.
Adjustments
NOTE:
any deck leveling adjustments. Refer to Tires on page 22 for
information regarding tire pressure.
WARNING! Shut the engine off, remove the
ignition key and engage the parking brake before
making adjustments. Protect your hands by using
heavy gloves when handling the blades.
Leveling the Deck (Side to Side)
NOTE:
deck leveling adjustments. Refer to Tires for information regarding
tire pressure. Always level the deck side to side before front to rear.
NOTE: When leveling the deck side-to-side, make sure the two rear
adjustment gears are set in the middle of the adjustment range.
If the cutting deck appears to be mowing unevenly, a side to side
adjustment can be performed. Adjust if necessary as follows:
With the tractor parked on a firm, level surface, place the deck
lift pedal in a middle mowing position and rotate both outside
blades so that they are perpendicular with the tractor.
2. Measure the distance from the outside of the left blade
tip to the ground and the distance from the outside of the
deck hanger link. See Figure 6-6.
Figure 6-6
NOTE: The front right deck hanger link is not adjustable
and is used to help adjust the other hanger links.
4. Using a wrench, raise or lower the left side of the deck by
turning the adjustment gears. See Figure 6-6.
The deck is properly leveled when both blade tip measurements
are equal. Retighten the hex bolt on the front left deck hanger
bracket when proper adjustment is achieved.
22
