Faltmechanismus CUBE Fold Hybrid
3 Build up
NOTICE
Before you start setting up the Fold
Hybrid, unfold the kickstand and
place the bike on it.

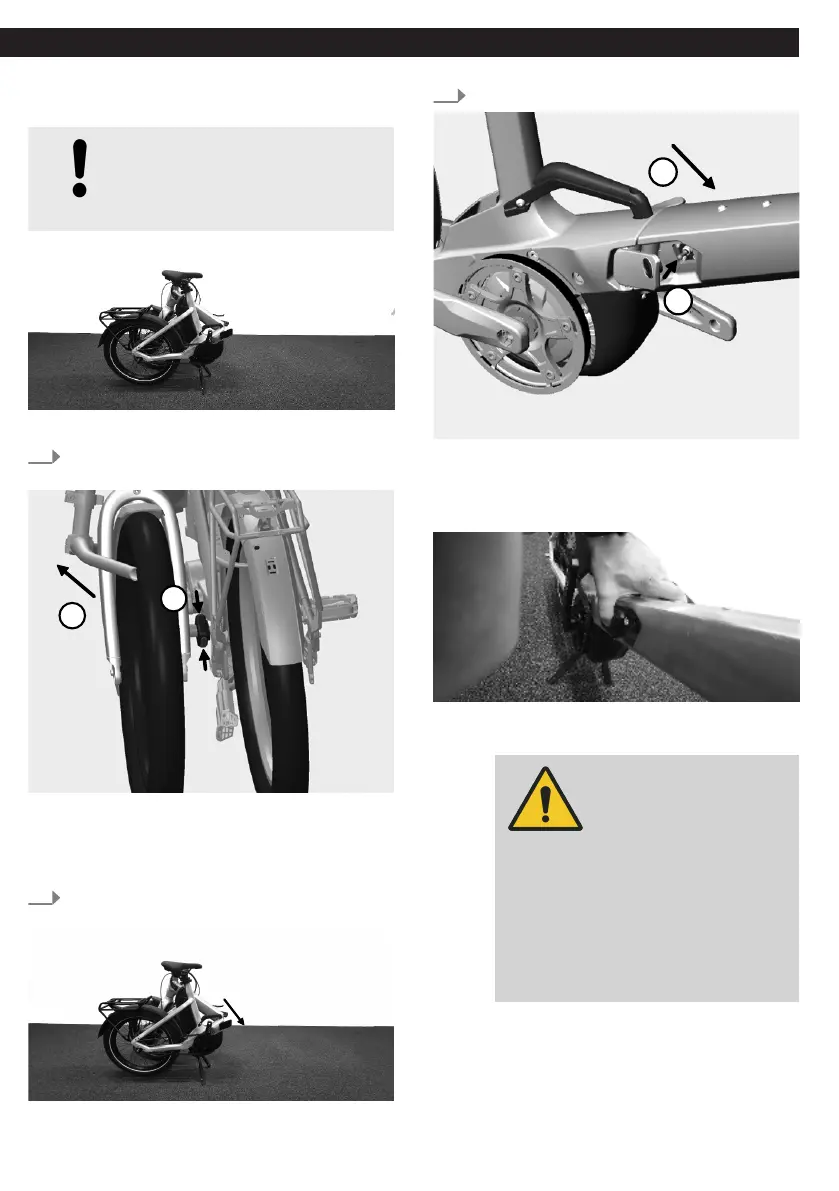

Fig. 9: Bike folded on stand
1.
Open the lock by pressing the Klickx Quadlock
adapter.
1
2
Fig. 10: Open Klickx Quadlock Adapter
1
Press the release mechanism of the Klickx Quad‐
lock Adapters.
2 Detach the front frame part from the adapter.
2.
Swing the front frame part 180° into the driving
direction until the joint is closed.
Fig. 11: Swing front frame (open)
3. Lock the Frame joint
1
2
Fig. 12: Close and lock frame joint
1 Close the frame joint completely.
2 Lock the folding mechanism by engaging the
lever in the ball head.
Fig. 13: Lock the folding mechanism by engaging the
lever in the ball head
🡆
DANGER
Make sure that the frame
joint is fully closed and the
lever is correctly locked in
the ball head.
Otherwise, the joint of the
frame may open while
driving.
This can lead to dangerous
driving situations, falls, acci‐
dents and property damage.
