ASSEMBLY INSTRUCTIONS
19

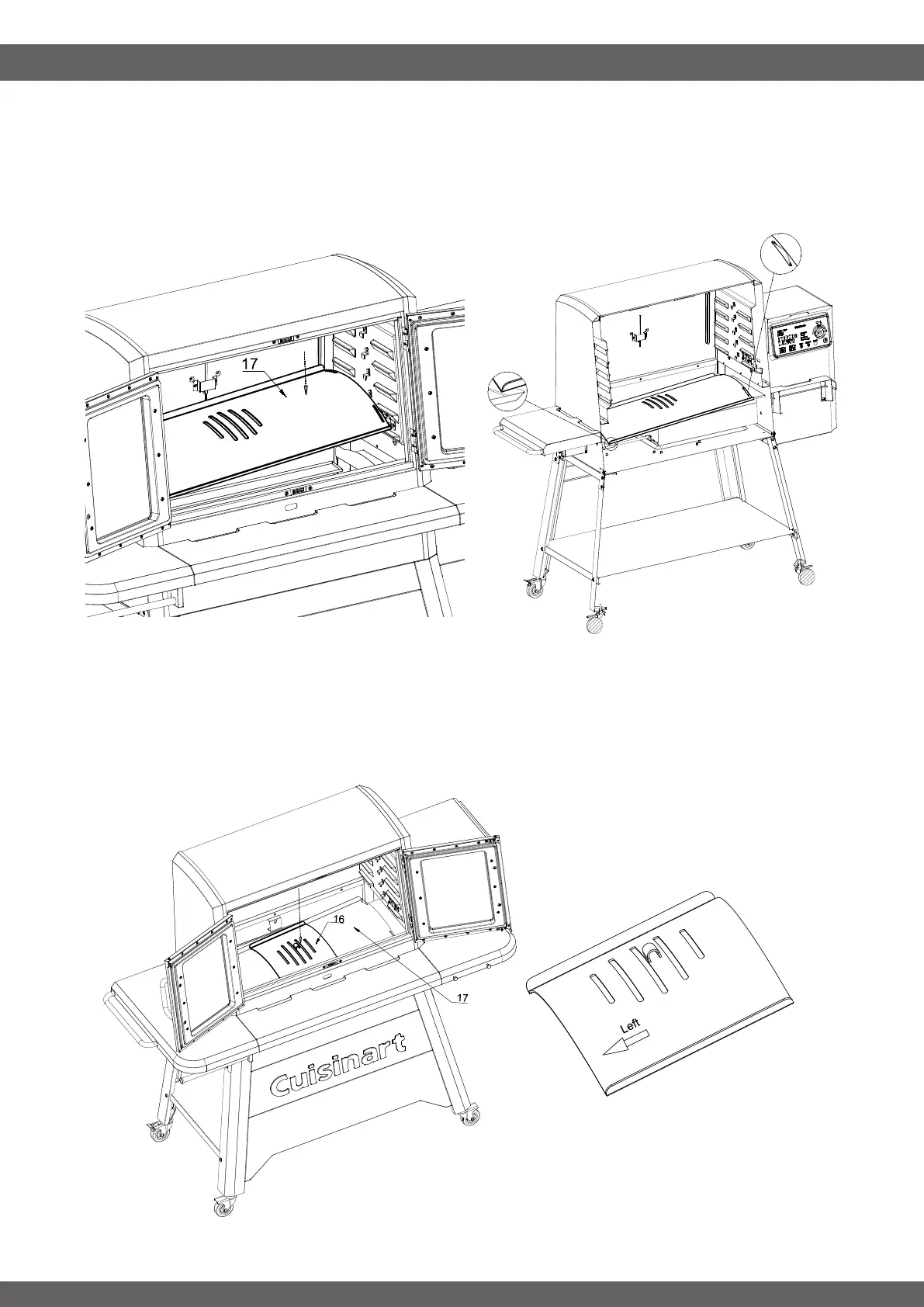

STEP 22
-----------------------------------------------------------------------------------
Insert the Drip Shield (17) into the cooking chamber. There are tabs on the right side of the cooking chamber •
that fit into slots on the Drip Shield (17). The opposite side of the Drip Shield (17) sits on top of the Grease
Collector (7).
Note: Grease Collector (7) Is pre-assembled in the Main Body (1)•
STEP 23
-----------------------------------------------------------------------------------
Place the Sear Shutter (16) on top of the installed Drip Shield (17). Note the orientation.•
