ASSEMBLY INSTRUCTIONS
18

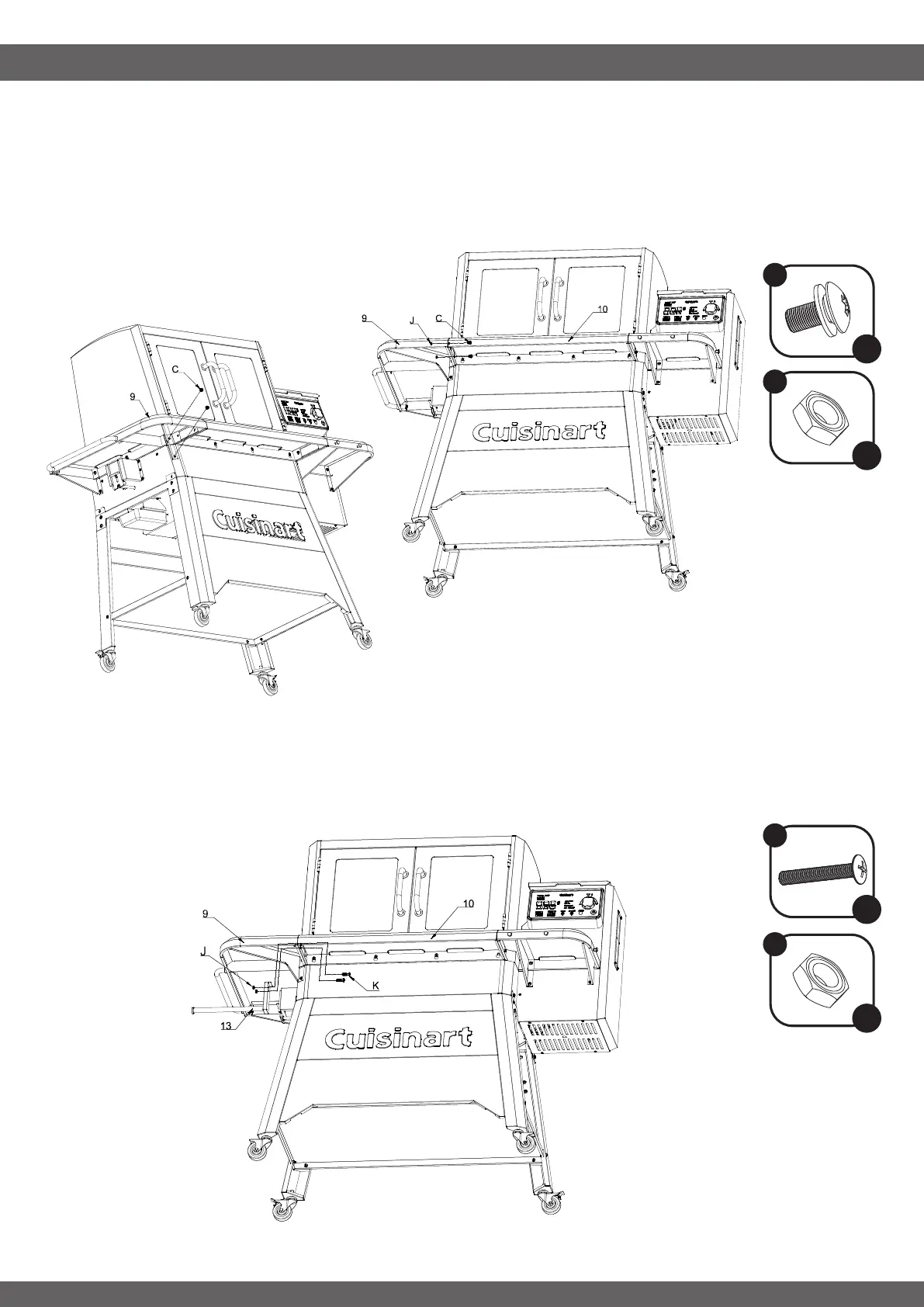

STEP 20
-----------------------------------------------------------------------------------
Connect the Front Table (10) to the Left Table (9) using 2x Lock Screw (C) and 2x Nut (J). Ensure table •
surfaces line up before tightening fasteners. Using 2x Lock Screw (C) to secure the left table corner
support to the Main Body (1).
Now that the three tables are level and fixed to each other, tighten all 14 loose screws that attach the •
tables to the Main Body (1).
STEP 21
-----------------------------------------------------------------------------------
Attach the Paper Towel Holder (13) to the Left Table (9) using 2x Screw (K) and 2x Nut (J). •
C
J
J
K
x 4
x 2
x 2
x 2
