ASSEMBLY INSTRUCTIONS
17

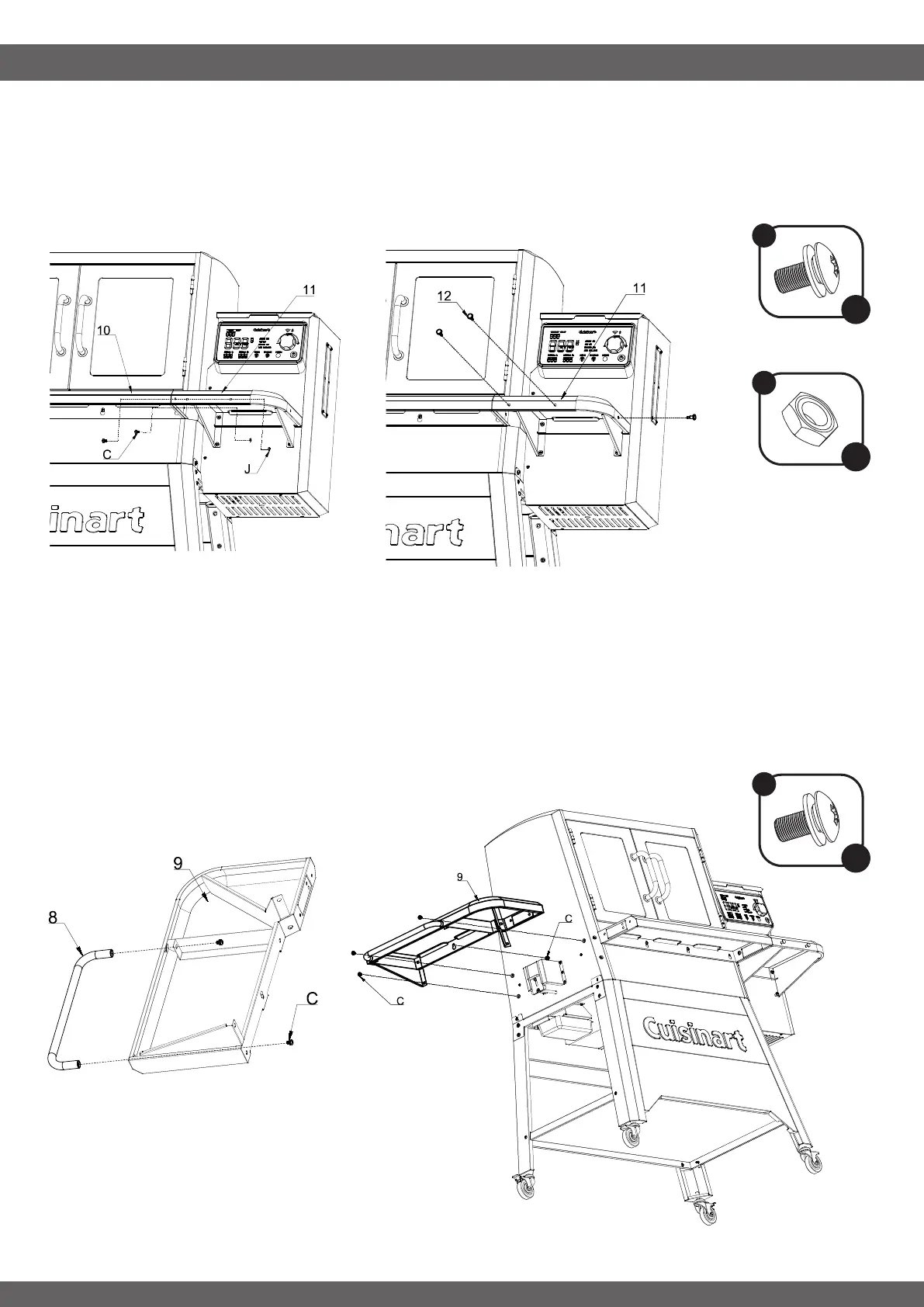

STEP 18
-----------------------------------------------------------------------------------
Connect the Front Table (10) to the Right Table (11) using 2x Lock Screw (C) and 2x Nut (J). Ensure table •
surfaces line up before tightening fasteners. Attach 3x Tool Hooks (12) to the Left Table (11).
STEP 19
-----------------------------------------------------------------------------------
Fasten Main Handle (8) to Left Table (9) with 2x Lock Screw (C).•
Loosen but do not remove 1x Lock Screw (C) on the left side of the Main housing. Hang the Left Table (9) •
to the Main Housing (1) using the keyhole slot. Secure the table to the main housing with 3x Lock Screw
(C) but do not tighten.
C
J
x 2
x 2
C
x 5
