Cuisinart CLERMONT - Final Assembly Steps

ASSEMBLY INSTRUCTIONS
16

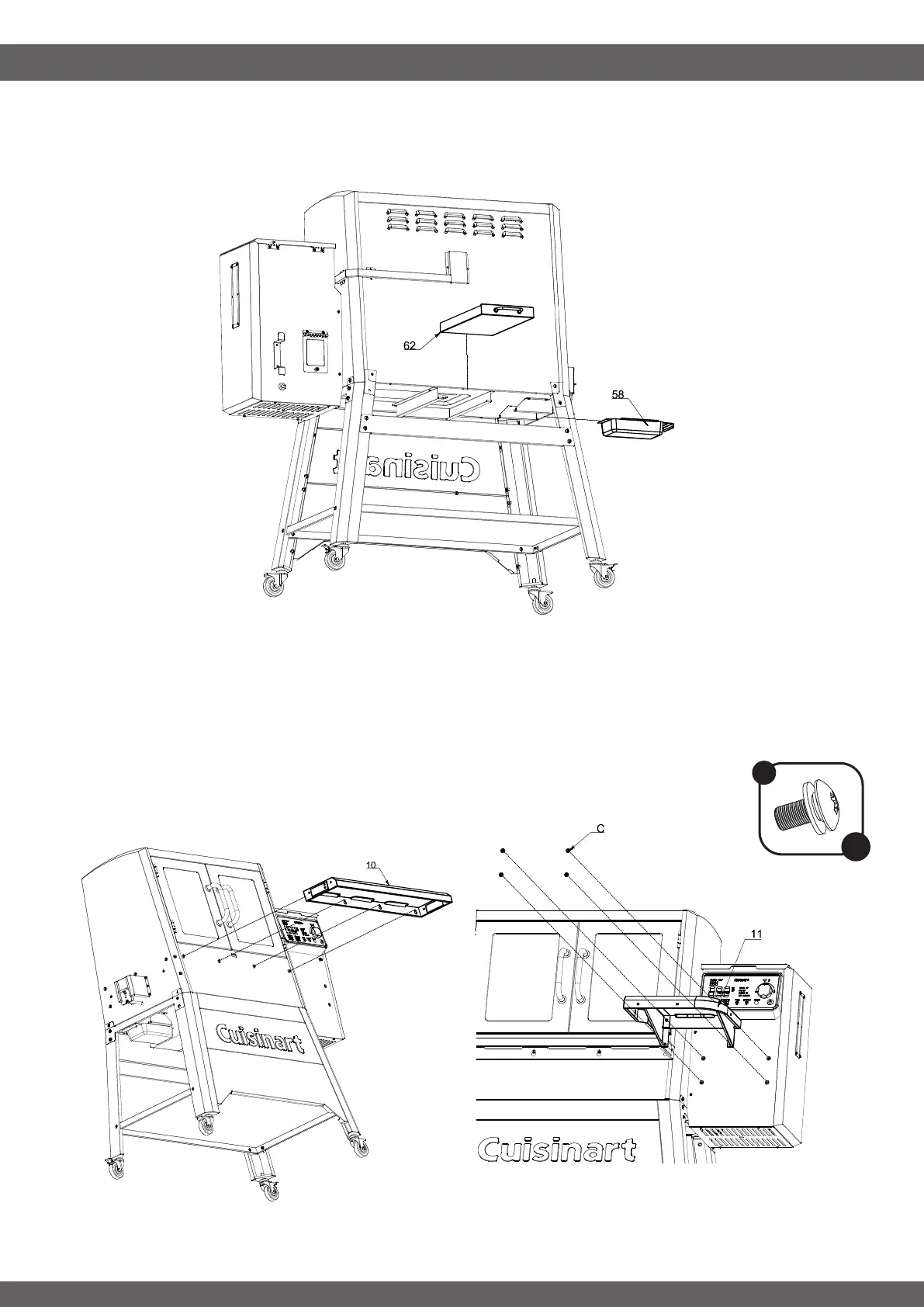

STEP 16
-----------------------------------------------------------------------------------
Insert the Ash Drawer (62) and the Grease Tray (58) into their respective locations. •
STEP 17
-----------------------------------------------------------------------------------
Loosen but do not remove 4x Lock Screw (C) on the front of the Main Body (1). Hang the Front Table (10) •
to the Main Housing using the keyhole slots.
Loosely attach the Right Table (11) to hopper using 4x Lock Screw (C). Do not tighten any screws yet. •
C
x 4
