ASSEMBLY INSTRUCTIONS
15

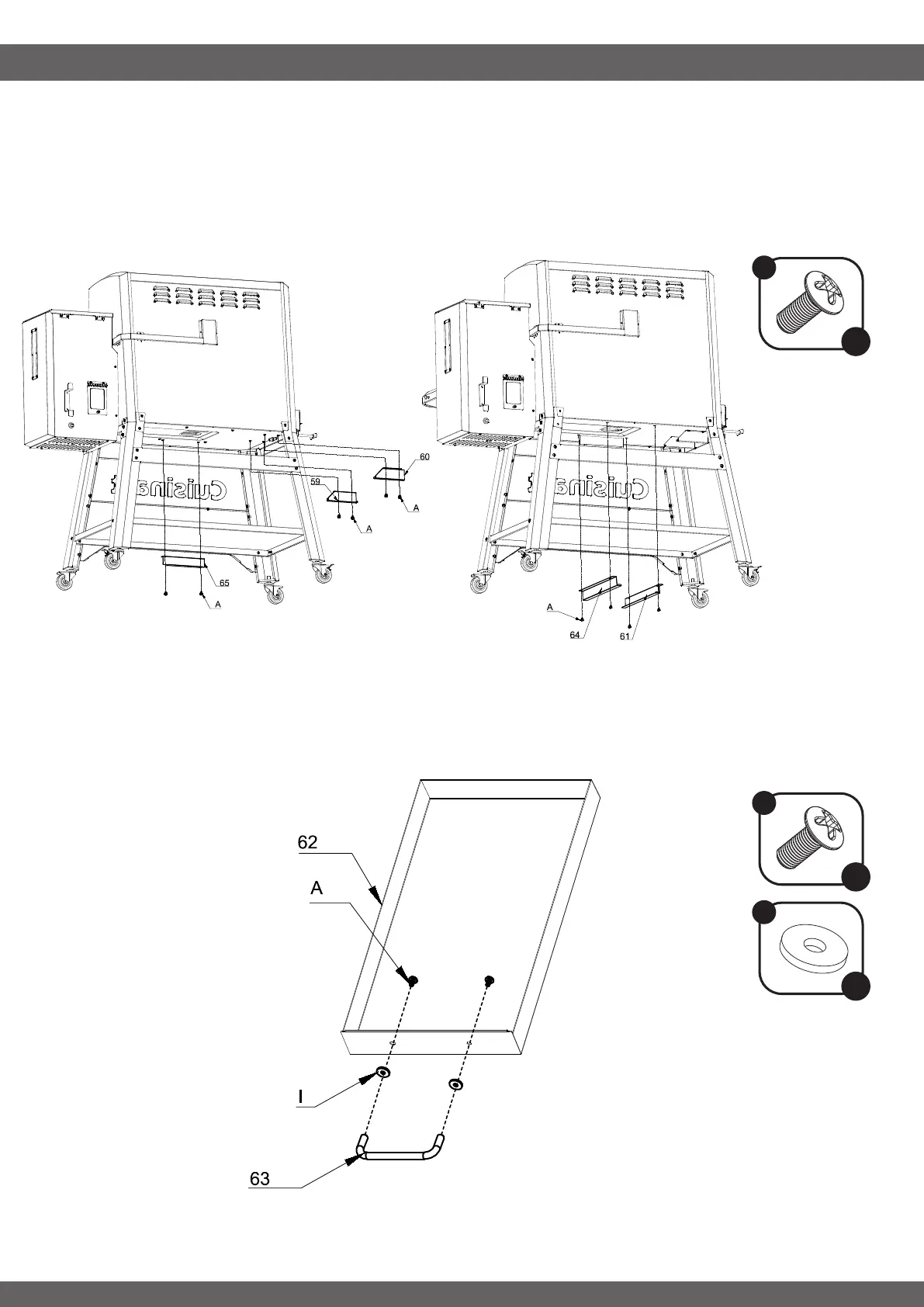

STEP 14
-----------------------------------------------------------------------------------
Attach the Right Grease Drawer Bracket (59), Left Grease Drawer Bracket (60), and Rear Ash Drawer •
Bracket (65) to the bottom of the Main Body (1) using 6x Screw (A).
Attach the Left Ash Drawer Bracket (64), and Right Ash Drawer Bracket (61) to the bottom of the Main Body •
(1) using 4x Screw (A).
STEP 15
-----------------------------------------------------------------------------------
Attach the Ash Drawer Handle (63) to the Ash Drawer (62) using 2x Screw (A) and 2x Insulative Washer (I).•
A
A
I
x 10
x 2
x 2
