ASSEMBLY INSTRUCTIONS
14

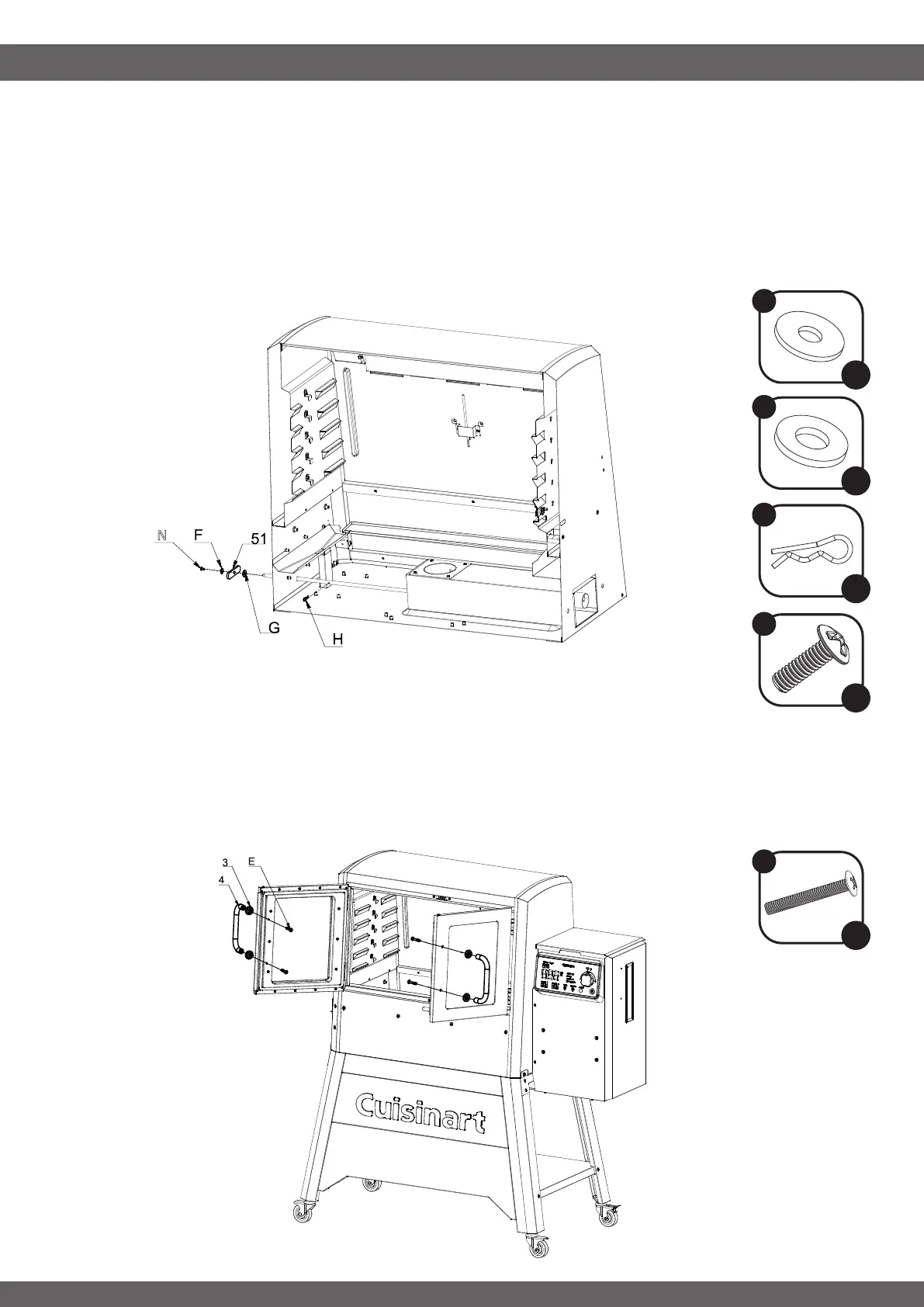

STEP 12
-----------------------------------------------------------------------------------
From inside the Main Body (1) assemble the Cotter Pin (H) into the hole on the Ash Cleaning Rod (50). •
On the outside assemble to the rod in order: Insulative Washer (G), Ash Cleaning Rod Handle (51), Flat
Washer (F), and tighten with Screw (N). When Assembly is complete, lift the lock plate from the Ash Clean
Lock Housing (57) and firmly press the Ash Cleaning Rod Assembly all the way in.
Tip: Verify correct assembly by looking into the Fire Pot. The flat plate from the Ash •
Cleaning Rod should be fully inserted and act as the floor in the fire pot.
STEP 13
-----------------------------------------------------------------------------------
Press 4x Screw (E), two per door, into the through holes from the inside of the door. The screws should •
protrude out the front of the door. For each door pair 2x Door Bezel (3) with 1x Door Handle (4) and attach
them to the doors using the protruding screws.
N
F
G
H
N
E
x 1
x 1
x 1
x 1
x 4
x 1
