Cuisinart CLERMONT - Page 9

C
D
L
M
C
x 2
x 2
x 2
x 2

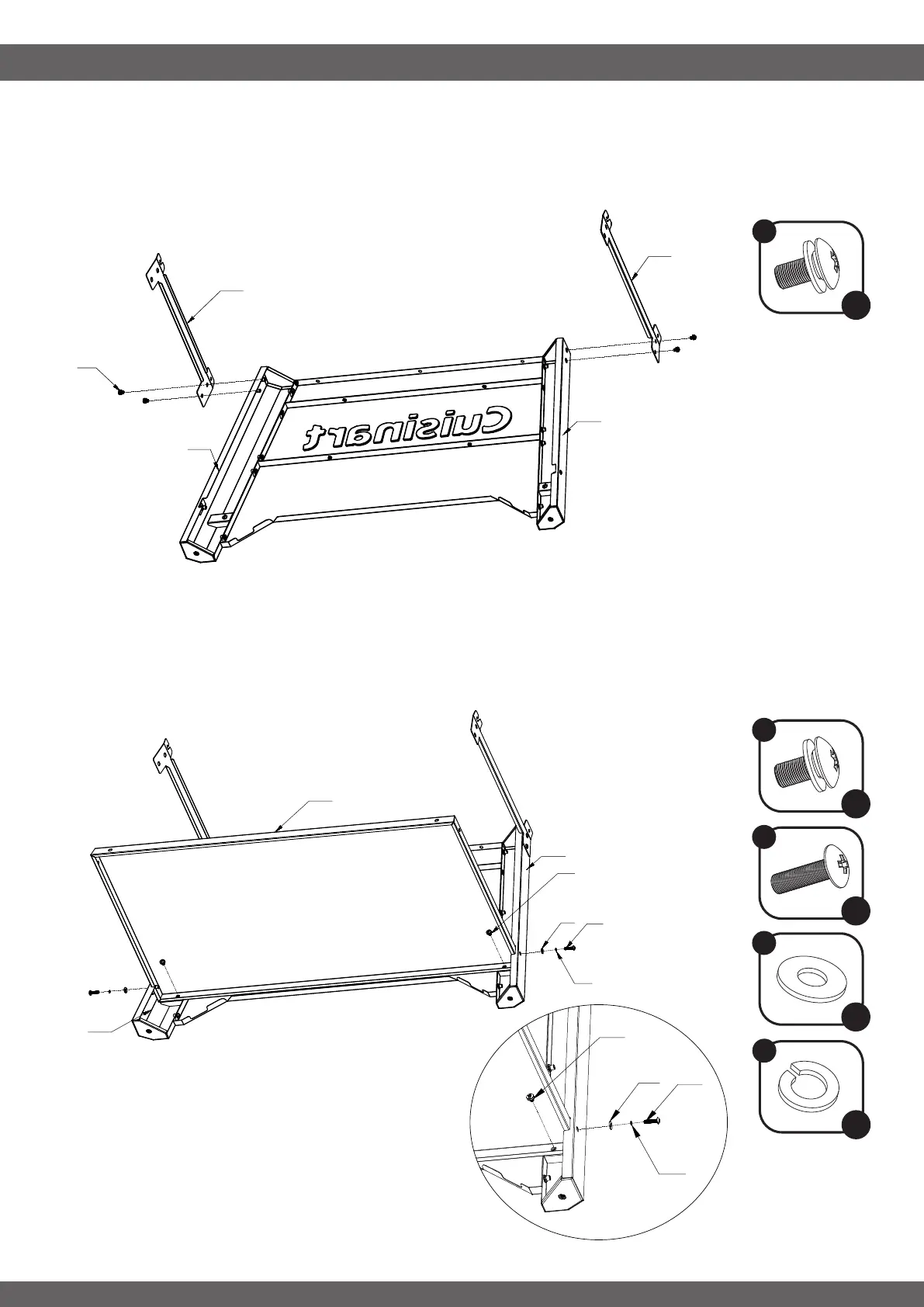

STEP 3
-----------------------------------------------------------------------------------
Attach the Cart Shelf (29) to the existing assembly using 2x Lock Screw (C) on the bottom inside edge of the •
shelf. Create 2x lock screw sets using one each of Screw (D), Spring Washer (M), and Flat Washer (L). Going
through the holes on the bottom left and right sides of the legs, tighten these screw sets into the bottom
shelf.
ASSEMBLY INSTRUCTIONS
STEP 2
-----------------------------------------------------------------------------------
Assemble the Left Cart Bracket (24) and the Right Cart Bracket (25) to the two front legs using 4x Lock •
Screw (C). Note the tabs at the top of the bracket should flare outward and the tab with the round hole
should be towards the front.
9
18
24
25
C
20
C
D
29
18
20
L
M
x 4
C
D
L
M
