Data Port Output 109
Cat. No. 01023095
The following data cable styles are available from Culligan (kits for Modbus, BACNET, and Profibus are also available
from your Culligan dealer):
Cable Part No. Description
01021507 USB style output cable—comes with CD-ROM which includes device drivers for Microsoft
®
Windows
®
2000, XP, Vista, and 7 operating systems
01021508 9-pin female RS-232 output
01021509 9-pin female RS-485 output

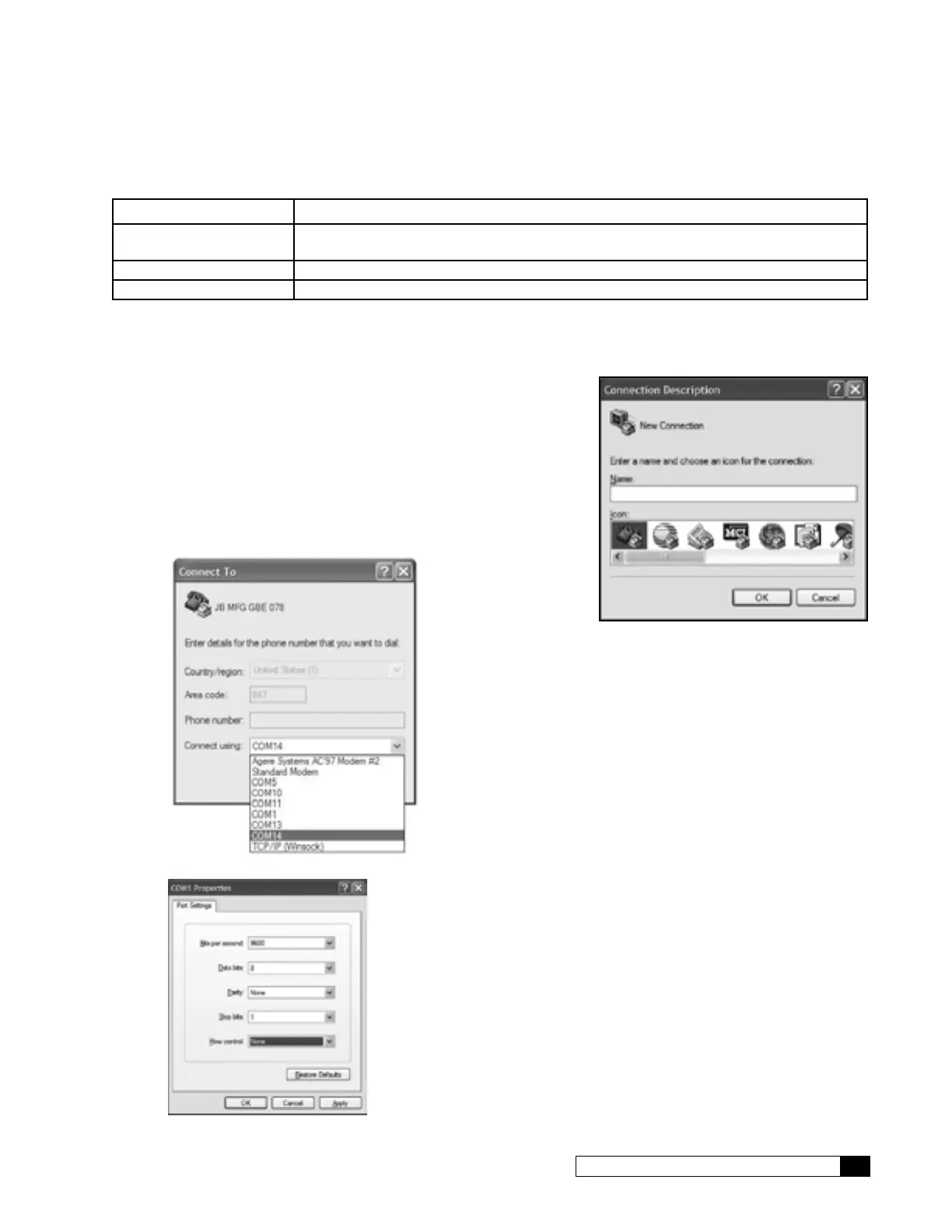

Test the Data Port
Once your cables are set up, you can test your connection using the Windows
®
Hyperterminal program. This program is
generally found under Start/All Programs/Accessories/Communications/Hyperterminal.
Name the New Connection
1. When you open Hyperterminal you will be prompted to create a
name for the connection. Enter any name.
2. Click on an icon that represents your connection.
3. Click on the OK button.
Set the COM Properties
1. Select a COM port. From the “Connect Using” drop down list, pick
the COM port with the highest number and click OK.
2. Now set the properties for this COM port as shown.
3. Click OK. The Hyperterminal is ready to accept data.
