Culligan M2 Series User Manual

Series M2 International 89
Cat. No. 01023095
Item Description Part Number
M2-2 M2-3 M2-4 M2-5 M2-6
— RO System , M2 01023855 01023856 01023857 01023858 01023859
4 Pump/Motor Cent 1.0HP 220-240, 1 ph, 50 Hz 01023882
5 Controller, M2 Series 01024371
6 Piping Feed 01021939
7 Piping Product 01021941
8 Piping Concentrate 01021940
9 Membrane Array, 2-1 01021927 01021927
9 Membrane Array, 3-1 01021928 01021928 01021928
9 Membrane Array, 2-2 01021963 01021963
9 Membrane Array, 3-2 01021962
12 Gate Valve 01021544
13 Filter, 10” Big Blue 01018049
— Flow Meter, 1/2” NPT 01021033
38 Flow Meter, 3/4” NPT 01021259
44 Pressure Gauge, 0-200 PSI 2-1/2”, 1/4”CBM 01022978
45 Cartridge Filter, 5 micron, 10”BB 00403232
59 Harness Meter, 38”L 01023700
— Cord, Motor Power,M2 01022319
Product Flow
Meter
Pump/Motor
4
Inlet Flow Meter
38 59
13 45

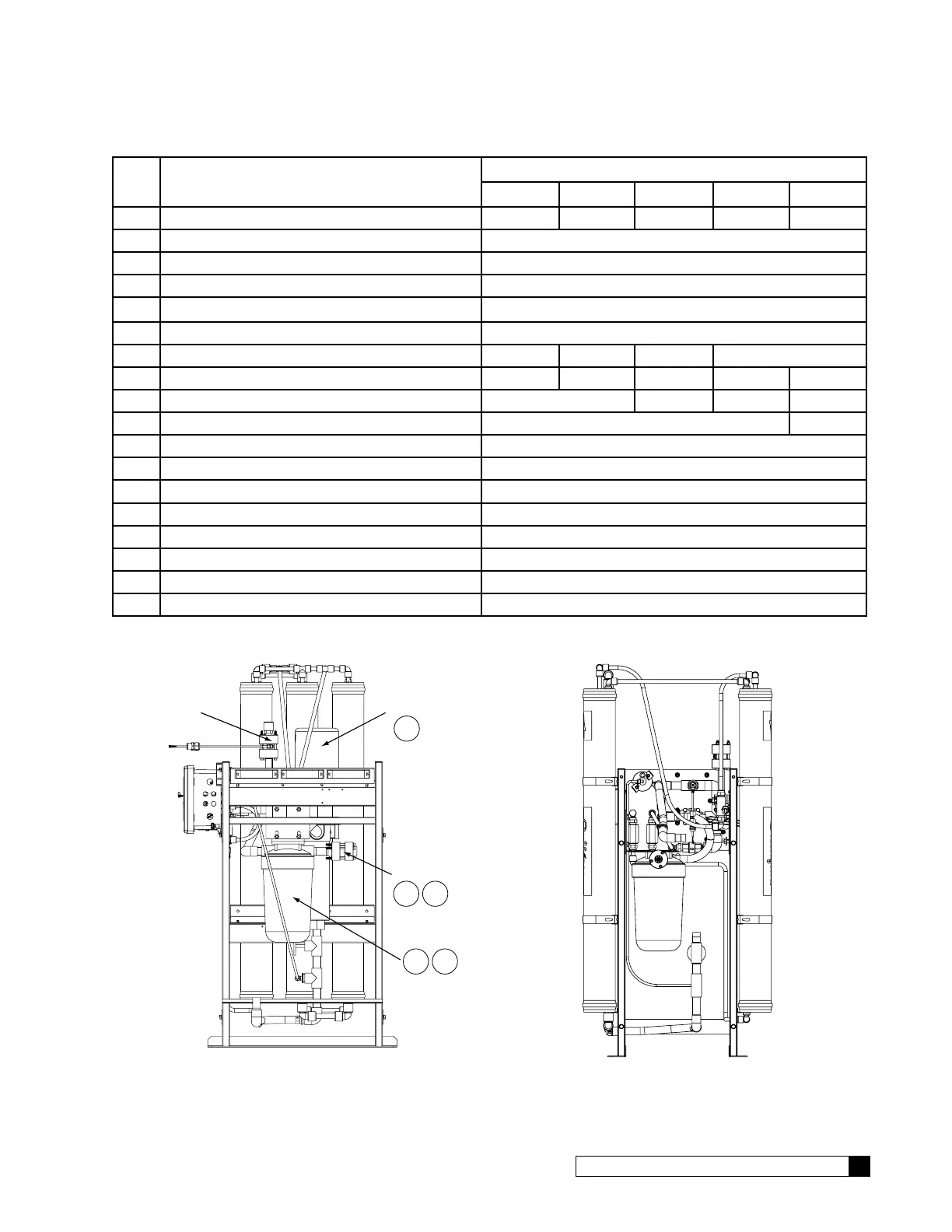

Figure 47. M2 right side view w/o membrane housings. Figure 48. M2 back view without pump and cross brace.
