Culligan M2 Series User Manual

92 Culligan® Series M2 Reverse Osmosis
92 Cat. No. 01023095
Concentrate Piping Sub-Assembly, 220V/ 50 Hz, International

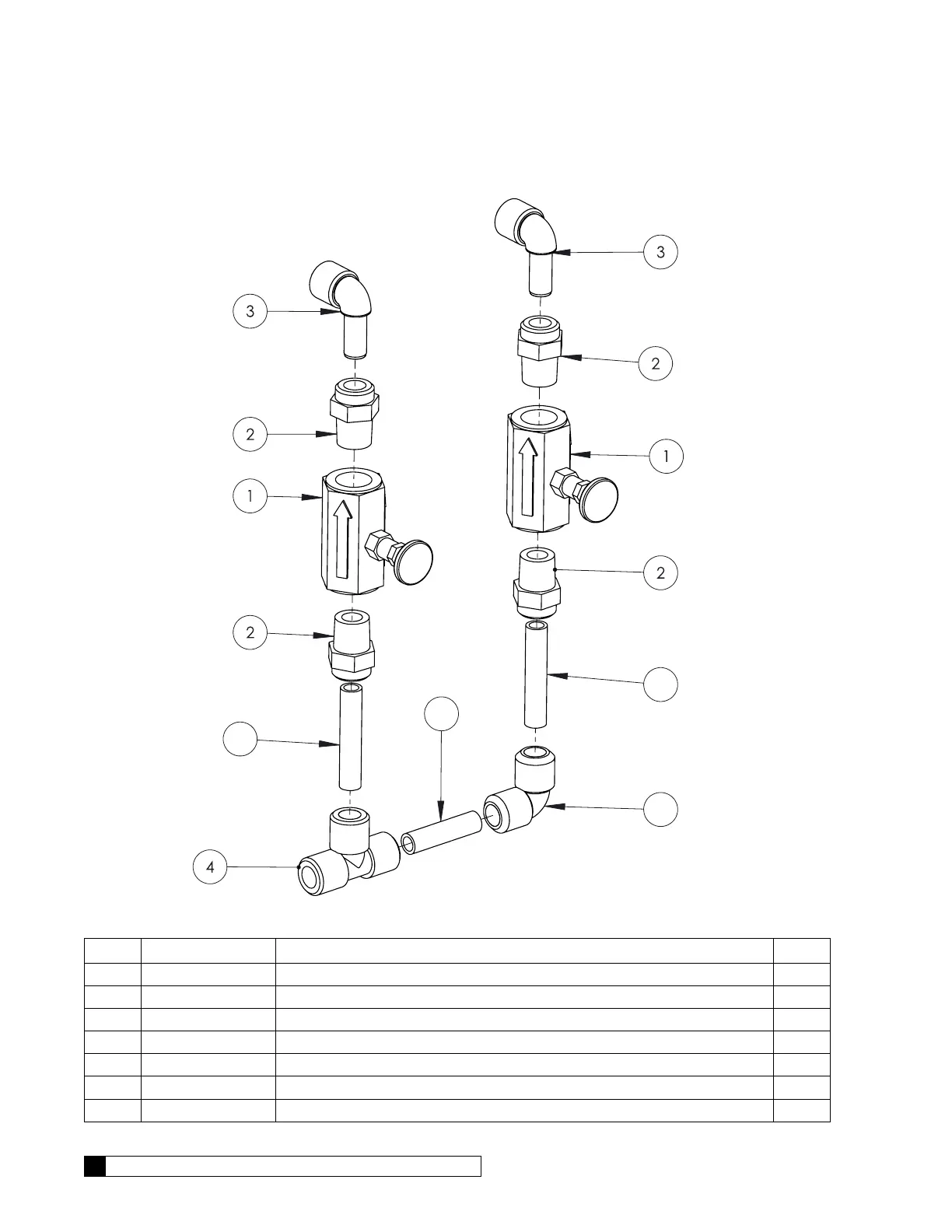

Figure 51. M2 concentrate piping sub-assembly.
Item Part No. Description Qty.
— 01021940 Piping Assembly M2 Concentrate
1 01021539 Valve,Needle,1/2" Brass 2
2 — Fitting,Male Adapter,1/2Tx1/2NPTE,PI 4
3 — Fitting,Stem Elbow,1/2Tx1/2Stem,PI 2
4 — Fitting,Union Tee,1/2T,PI 1
5 00901801 Tubing,1/2",PE,Natural —
6 — Fitting, Union Elbow, 1/2T, PI 1
5
55
5
NOTE: Cut
Tubing to 2”
NOTE: Cut
Tubing to 2.5”
NOTE: Cut
Tubing to 2.5”
6
