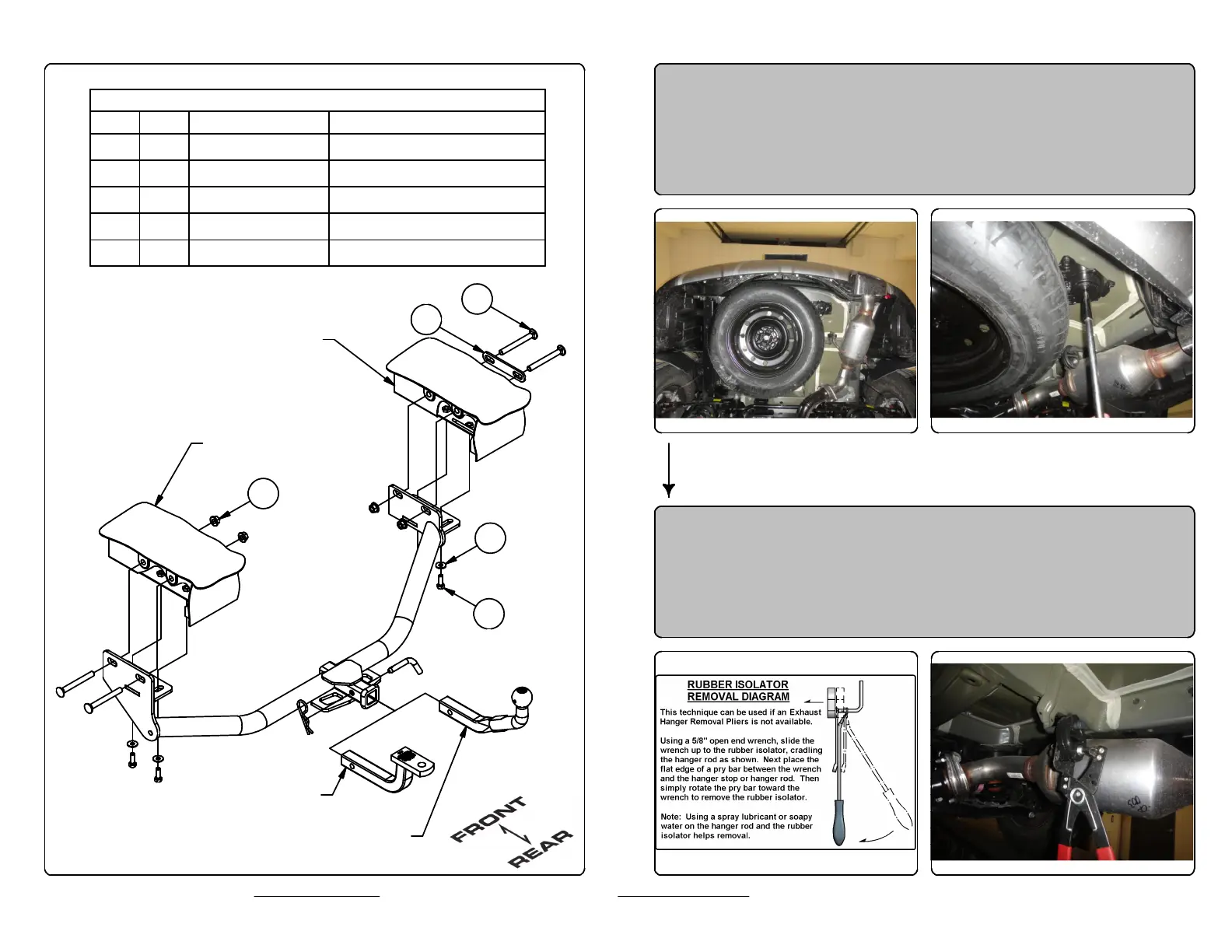

Curt Manufacturing 12113 - Installation Walkthrough; Parts List and Tools Required; Step 1: Spare Tire Removal; Step 2: Exhaust System Lowering

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
CARRIAGE BOLT1/2-13 x 4 1/241
HEX FLANGE NUTHFN 1213, GR842
HEX BOLTM10 - 1.25 x 25
4
3
CONICAL TOOTHED WASHER3/8"
44
.188" SPACER PLATE12113-SP
15
5
1
2
3
4
1. Lower and remove spare tire.
2. Lower exhaust by removing (3) rubber isolators.
DRIVER SIDE
FRAME RAIL
PASSENGER SIDE
FRAME RAIL
DESIGNED FOR USE WITH
BALLMOUNT #45520/D-20
DESIGNED FOR USE WITH EURO BALLMOUNT
#45561 (1 7/8" BALL) OR #45562 (2" BALL)
