CURTMFG.COM
•
PRODUCT SUPPORT: 877.287.8634
•
13200-INS-RA
•
05/13/2020
•
ECN7022
•
PAGE 2

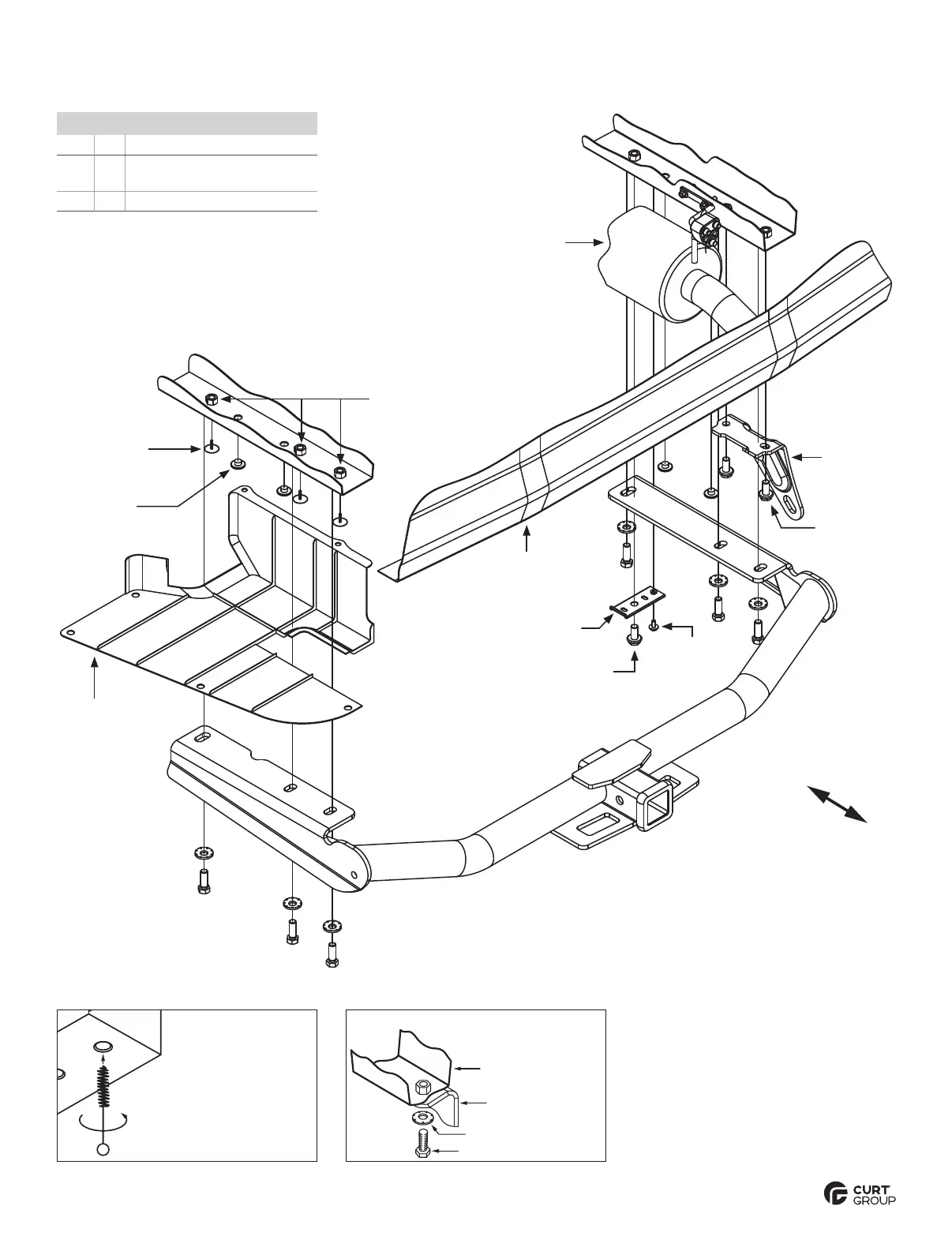

Passenger-side
frame rail
Driver-side
frame rail
Underbody panel
(shown trimmed)
Existing
M12 bolt
Existing
fascia screw
Two existing
M12 bolts
Existing
tow loop
Existing
weldnuts
(both sides)
Three existing
threaded
plastic inserts
Two existing
rubber plugs
(both sides)
Muffler
Rear fascia
Existing metal
fascia tab
ASSEMBLY
VEHICLE FRAME
CONICAL TOOTHED WASHER ORIENTATION
HITCH SIDE PLATE
HEX BOLT
CONICAL TOOTHED WASHER
To remove debris from weldnuts
in frame, spary lubricant or
compressed air into the hole.
For heavy debris, use a wire brush.
Take care not to damage threads.
WELDNUT CLEANING
2
1
Parts List
Item Qty Description
1 6 Hex bolt,
M12-1.25 x 35mm, CL 10.9
2 6 Conical-toothed washer, 1/2"
To Next Page
