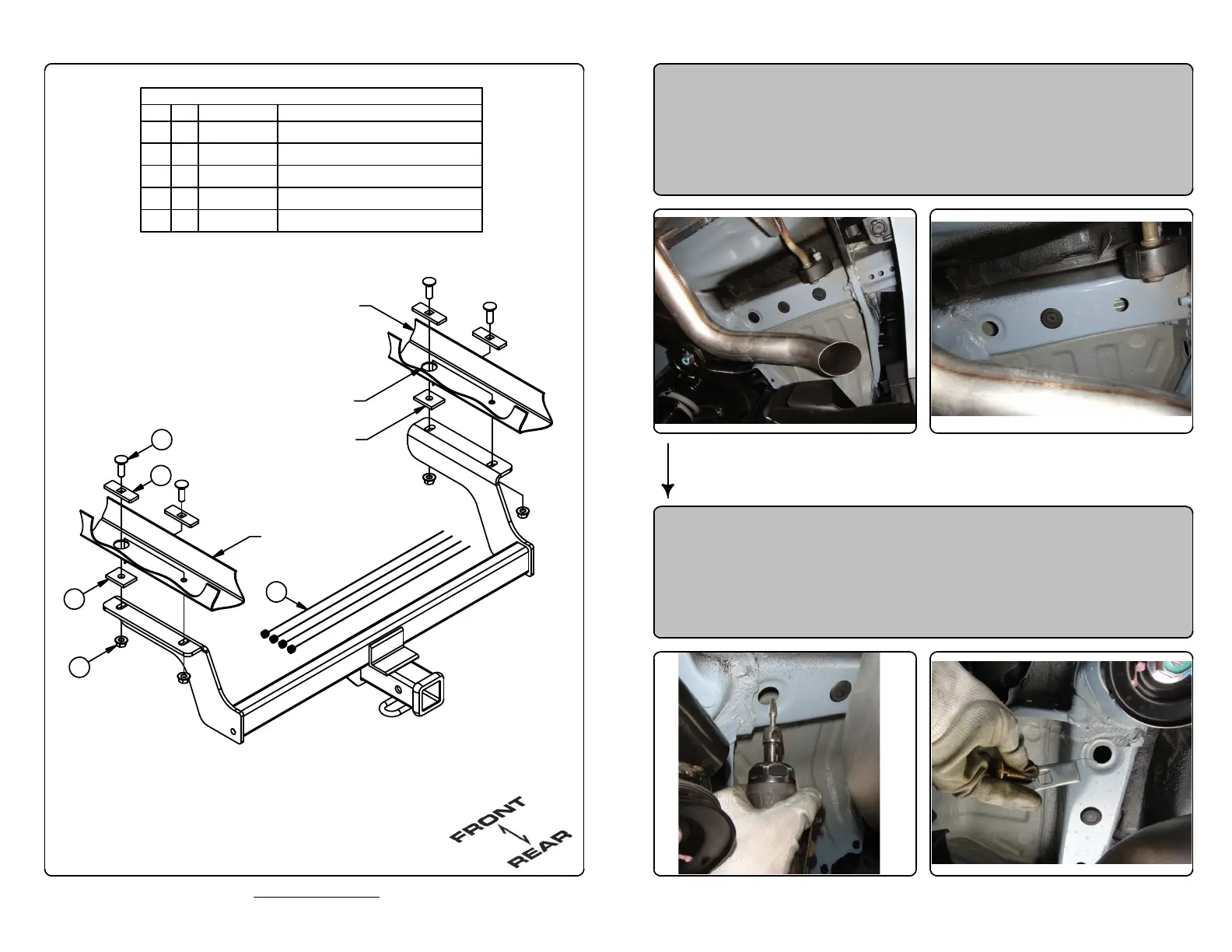

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com
Parts List
DESCRIPTIONPART NUMBERQTYITEM
CARRIAGE BOLT1/2-13 x 1 1/241
.250 x 1.00 x 3.00" SQUARE HOLE SPACERCM-SP642
.250 x 1.50 x 2.00" ROUND HOLE SPACERCM-SP1623
HEX FLANGE NUTHFN 121344
1/2" FISHWIRE1_2 FISHWIRE45
PASSENGER SIDE
FRAME RAIL
USE SPACERS TO
LEVEL HITCH
(AS REQUIRED)
ACCESS HOLE
BOTH SIDES
DRIVER SIDE
FRAME RAIL
1
2
3
4
5
1. Remove (2) rubber plugs from each frame rail and return
to vehicle owner (leave center plugs in the frame).
2. Enlarge access holes and fishwire 1/2" carriage bolts and
CM-SP6 spacers into position and reverse fishwire
remaining 1/2" carriage bolts and CM-SP6 spacers into
access hole. Leave fishwires attached.
To Next Page
