INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com

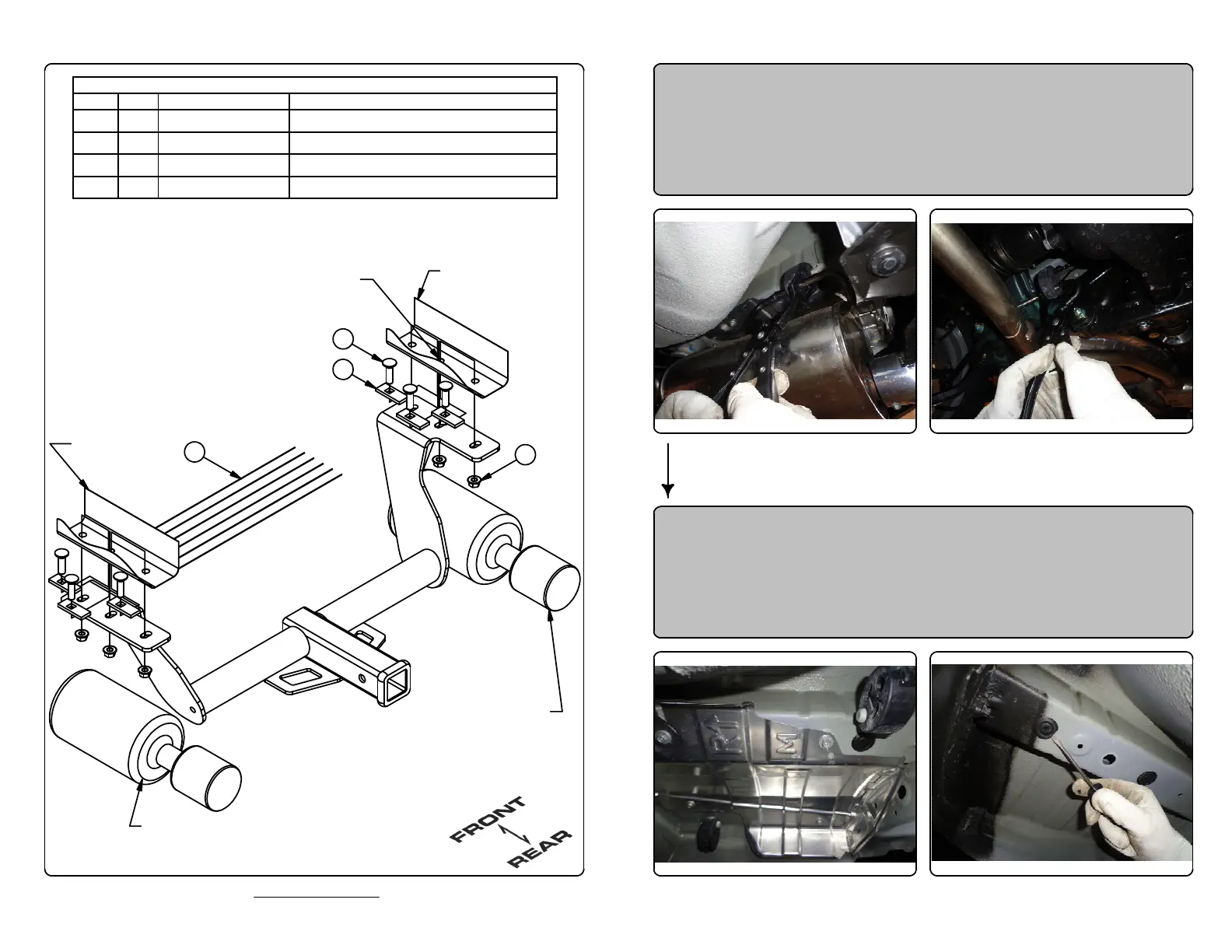

Parts List
DESCRIPTIONPART NUMBERQTYITEM
CARRIAGE BOLT1/2-13 x 1 3/4, GR8
61
.250 x 1.00 x 2.50" SQUARE HOLE SPACERCM-SP1062
HEX FLANGE NUTHFN 1213, GR863
1/2" FISHWIRE1_2 FISHWIRE
64
4
2
1
3
HOLE TO BE ENLARGED
(BOTH SIDES)
PASSENGER SIDE
FRAME RAIL
DRIVER SIDE
FRAME RAIL
1. Remove (2) exhaust hangers from the passenger side
muffler and (1) exhaust hanger from the center front of
vehicle for single exhaust vehicles, dual exhaust will remove
(2) exhaust hangers from the driver side muffler as well.
Support lowered exhaust with jack stand.
2. Remove (4) heat shield attachments with phillips head
screwdriver or 10mm socket (both sides if equipped with
dual exhaust and proceed to Step 3). Remove underbody
panel from driver side frame rail by removing (2) screws
and (5) push fasteners. Save for reinstallation.
VEHICLE MUFFLER
VEHICLE MUFFLER
(IF EQUIPPED WITH DUAL EXHAUST)
