INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com

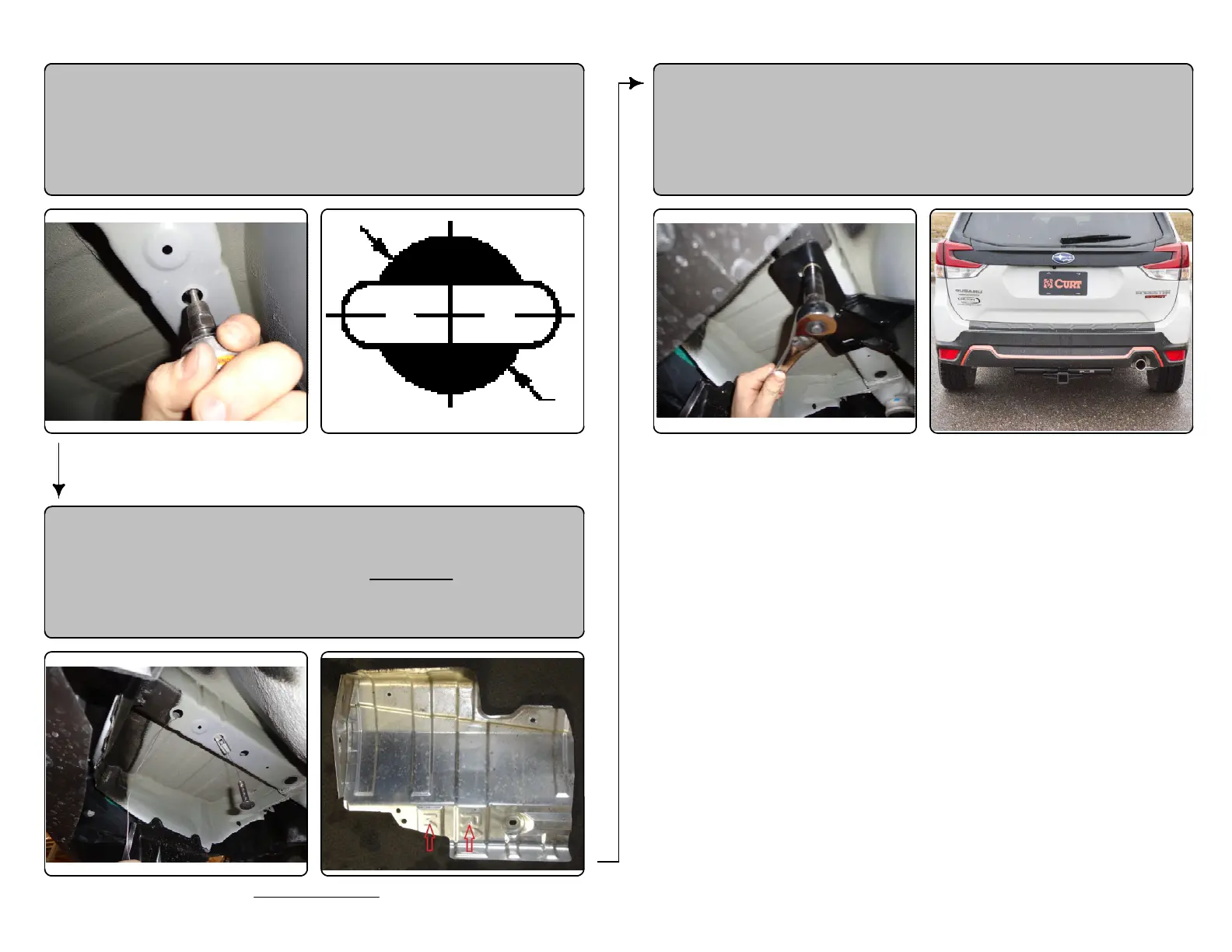

3. Remove (3) hole plugs from each frame rail to expose
mounting holes. Return plugs to customer. Enlarge the
center hole on each frame rail to about 1 1/8" to allow the
mounting hardware to pass though.
4. Fishwire 1/2" carriage bolt and spacer through the front
and rear frame holes in both frame sides then reverse
fishwire the center hole both sides. Optional:
Drill 5/8"
clearance holes in heat shield using dimples as guides and
reinstall heat shield without rear most frame attachment.
5. Raise hitch into place and secure hitch to frame,
using the 1/2" hardware provided. Torque all
hardware to 110 ft-lbs. Reinstall underbody panel
removed in Step 2 and exhaust removed in Step 1.
