HARDWARE INSTALLATION

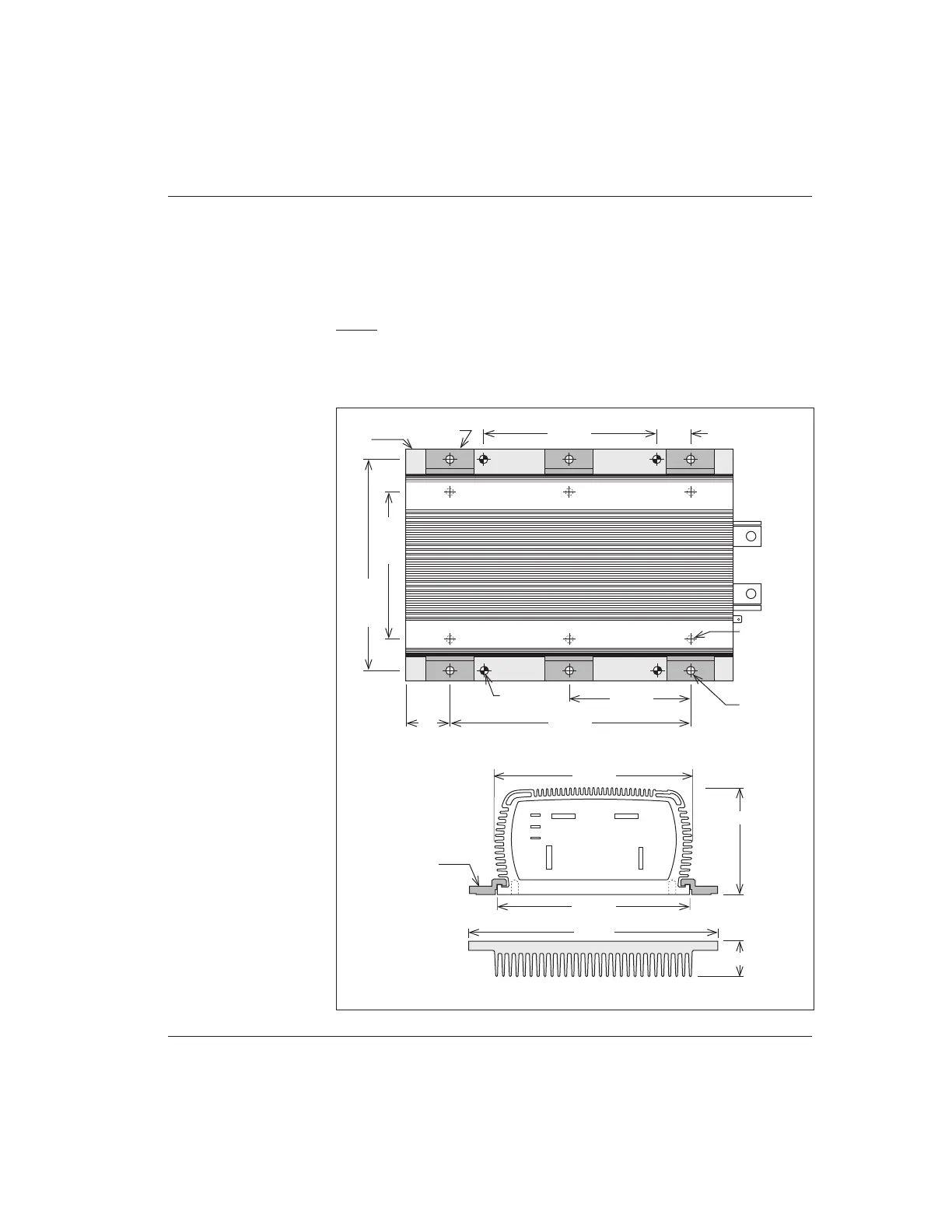

Fig. 3 Mounting
dimensions, Curtis PMC
1231C controller.
Be sure to mount the 1209B/1221B/1221C controller so as to allow access
to the adjustment screws. Although not usually necessary, a thermal joint
compound can be used to improve heat conduction from the case to the
mounting surface.
1231C
The controller should be fastened to a clean, flat metal surface that provides an
adequate heat sink. The mounting surface is an integral part of the overall
heatsinking of the controller, and affects its ability to dissipate heat.
B-
O P T I O N A L H E A T S I N K B A S E
B+
A2
M-
Dimensions in millimeters and (inches)
175 (6.9)
173 (6.8)
220 (8.6)
Mounting Clamp
(6 supplied)
94 (3.7)
Mounting
Clamp
(1/4-20 UNC),
6 places
(1/4-20 UNC)
× 8 (5/16),
6 places
229 (9.0)
114 (4.5)
165 (6.5)
32 (1.25)
200 (7.9)
140 (5.5)
Optional
Heatsink
Base
30 (1.2)
7 (9/32) dia.,
4 places
40
(1.6)
