4. OPERATION
4.1 Display

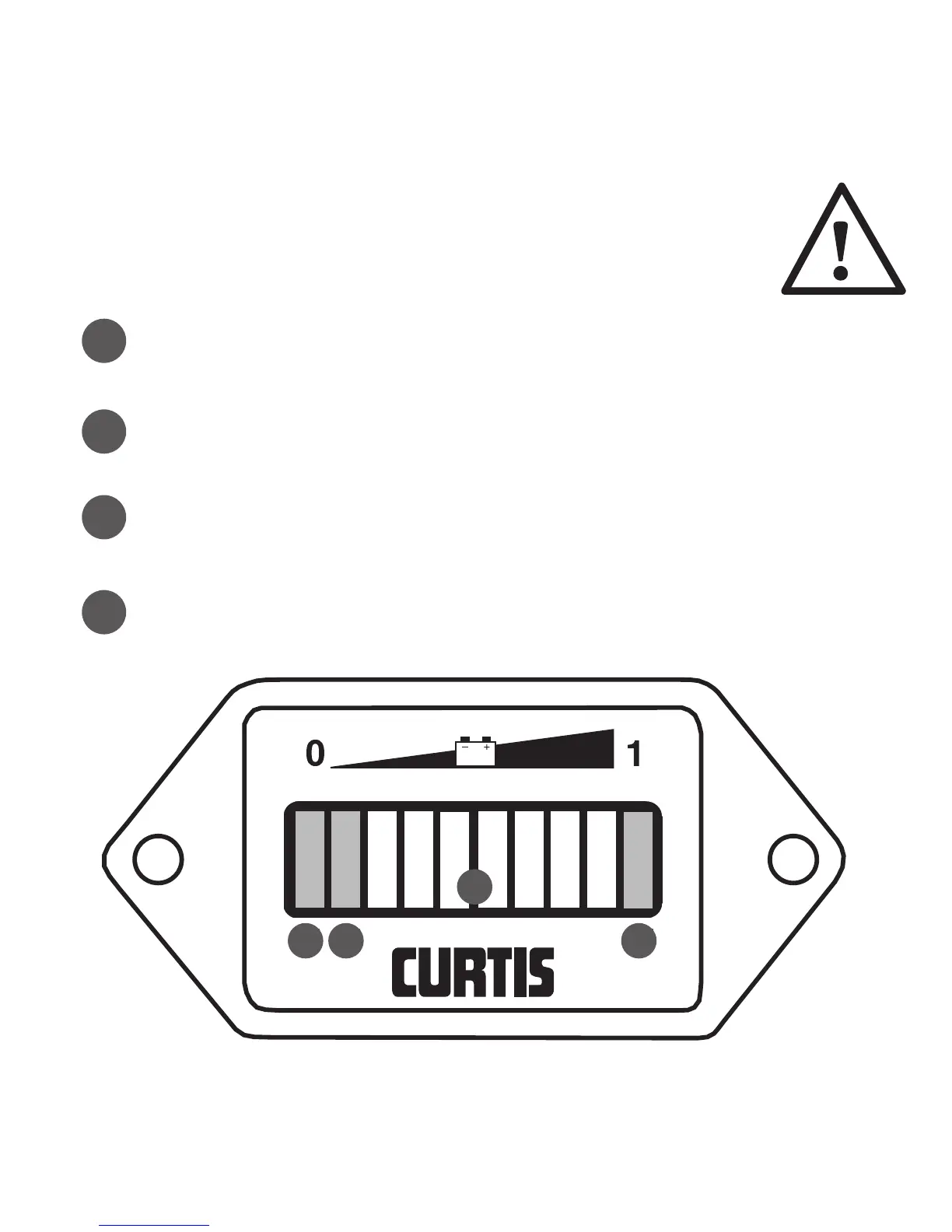

1. Only when the battery is properly charged is the
right-most LED lit.
2. As the battery’s state-of-charge decreases,
successive LEDs light up, only one on at a time.
3. The 2nd-from-left LED flashes, indicating “energy
reserve” (70% depth of discharge).
4. The 2 left-most LEDs alternately flash, indicating
“empty” (80% depth of discharge).
