Curtis CAFE0AP10A000 User Manual

ILLUSTRATED PARTS/RECOMMENDED PARTS IP67
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354 /$
ITEM # PART # DESCRIPTION
1 WC-54117 TANK, COMPLETE 1450W 120V CAFÉ
2 WC-54125-101 COVER, W/A HEATING TANK CAFE
3 WC-43062 GASKET, TANK LID
4 WC-5418 CLIP, RESET THERMOSTAT GEN USE
5 WC-906-04
KIT, ELEMENT, HEATING 2KW 220V W/ JAM NUT &
SILICONE O-RING
6 WC-1438* SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
5 WC-917-04
ELEMENT, HEATING 1.45KW 120V W/JAM NUTS &
SILICONE O-RING
6 WC-1438 SENSOR, TEMPERATURE TANK
7 WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SINGLE
HEATING ELEMENT
WC-54145 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
8WC-521
THERMOSTAT, HI-LIMIT SPST 120V 15A AUTO-RE-
SET
9 WC-2627
BUSHING, CONICAL .583ID X .945 OD .886LG
12mm GEN USE
10 WC-2628
BUSHING, CONICAL.469 ID X .945 OD X .986 LG
8mm GEN USE
ITEM # PART # DESCRIPTION
8WC-521
THERMOSTAT, HI-LIMIT SPST 120V 15A AUTO-RE-
SET
9 WC-2627
BUSHING, CONICAL .583ID X .945 OD .886LG 12mm
GEN USE
10 WC-2628
BUSHING, CONICAL.469 ID X .945 OD X .986 LG
8mm GEN USE
11 WC-29042 HOSE, VENTILATION HEATING TANK CAFÉ
WC-54145 - Tank Assembly
2
3
6
7
4
8
1
5
9

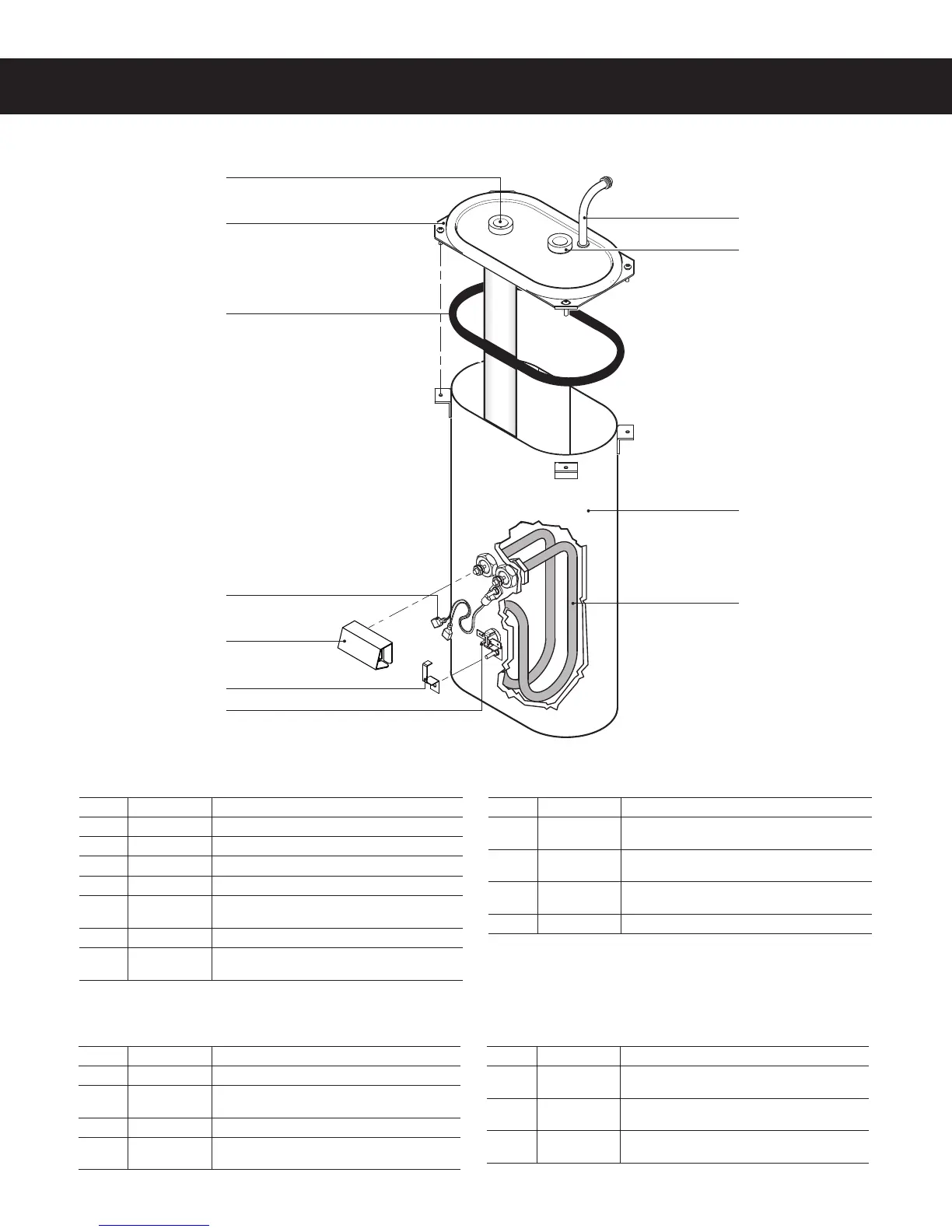

WC-54145 - Tank Assembly - Parts List
11
10
* Not used on models that are equipped with a capillary type thermostat.
