Curtis PCGT3 Troubleshooting Guide

Service & Sales
1-800-421-6150
www.wilburcurtis.com
Service & Sales
1-800-421-6150
www.wilburcurtis.com
PART #
DESCRIPTION

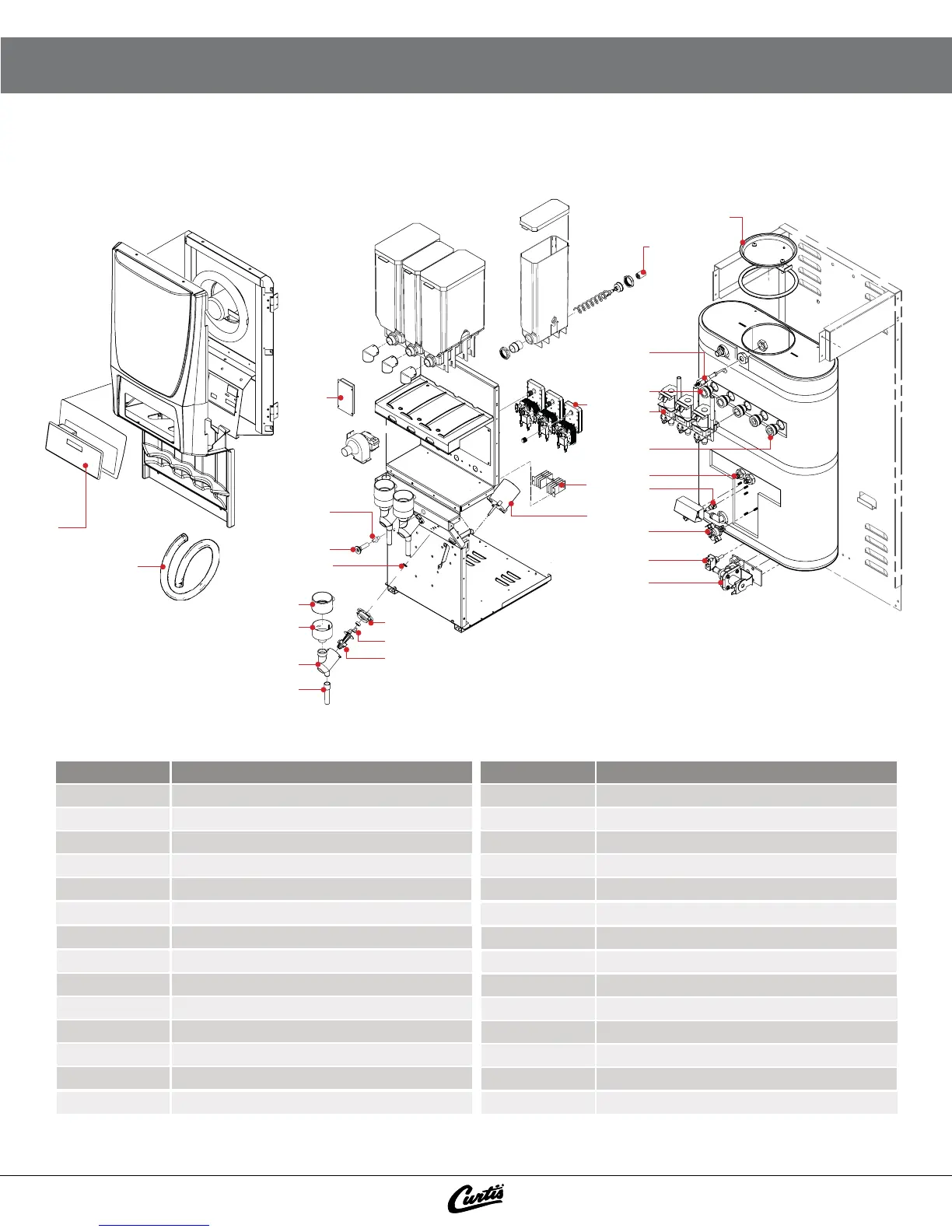

PCGT3 PARTS IDENTIFICATION
1. WC-37126 KIT, UCM BOARD & LABEL PCGT3
2. WC-5310 TUBING, 5/16” ID x 1/8” W SILICONE
3. WC-37054 SOCKET, GEAR
4. WC-37174 KIT, GEAR MOTOR & GEAR
5. WC-780 CONTROL, POWER MODULE CORK BREAK
6. WC-6193-0 HEAT SINK ASSEMBLY
7. WC-3739 WHIPPING MOTOR
8. CA-1095 CONNECTOR, ORIFICE WATER
9. CA-1011-05 BULKHEAD, WATER FITTING
10. WC-43791 RING, MOTOR SHAFT PLASTIC
11. CA-1005-03 STEAM TRAP
12. CA-1009-03 MIXING BOWL
13. CA-1006-06 CHAMBER, WHIPPER OFFSET PCGTs
14. CA-1037-3Y TUBE, EXTENSION YELLOW
PART #
DESCRIPTION
15. WC-37118 KIT, WHIPPER PLATE (3/PKG)
16. CA-1024-05 PILLAR, LOCATION BLACK
17. CA-1008-07K KIT, PROPELLER WHIPPER 6/PKG OFFSET BLD
18. WC-37008 KIT, TANK LID ROUND
19. WC-5502-01 KIT, PROBE, ASSY WATER LEVEL W/HEX
FITTING, O-RING & NUT
20. WC-2627 BUSHING, CONICAL
21. WC-2630 BUSHING, CONICAL BLIND
22. WC-3734 KIT, DUMP VALVE 120V 12W
23. WC-904-04 HEATING ELEMENT 1600W 120V W/JMNUT
24. WC-1438-101 SENSOR, TEMPERATURE TANK
25. WC-523 THERMOSTAT, MNL RESET 120/240V 25A
26. WC-102 SWITCH, TOGGLE NON-LIT 25A 120/240VAC
27. WC-826L VALVE, INLET 1GPM 120V 10W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
21
23
24
25
26
27
FRONT VIEW CHASSIS VIEW HEATING TANK VIEW

Curtis PCGT3 Specifications

General

Brand	Curtis
Model	PCGT3
Category	Coffee Maker
Language	English
