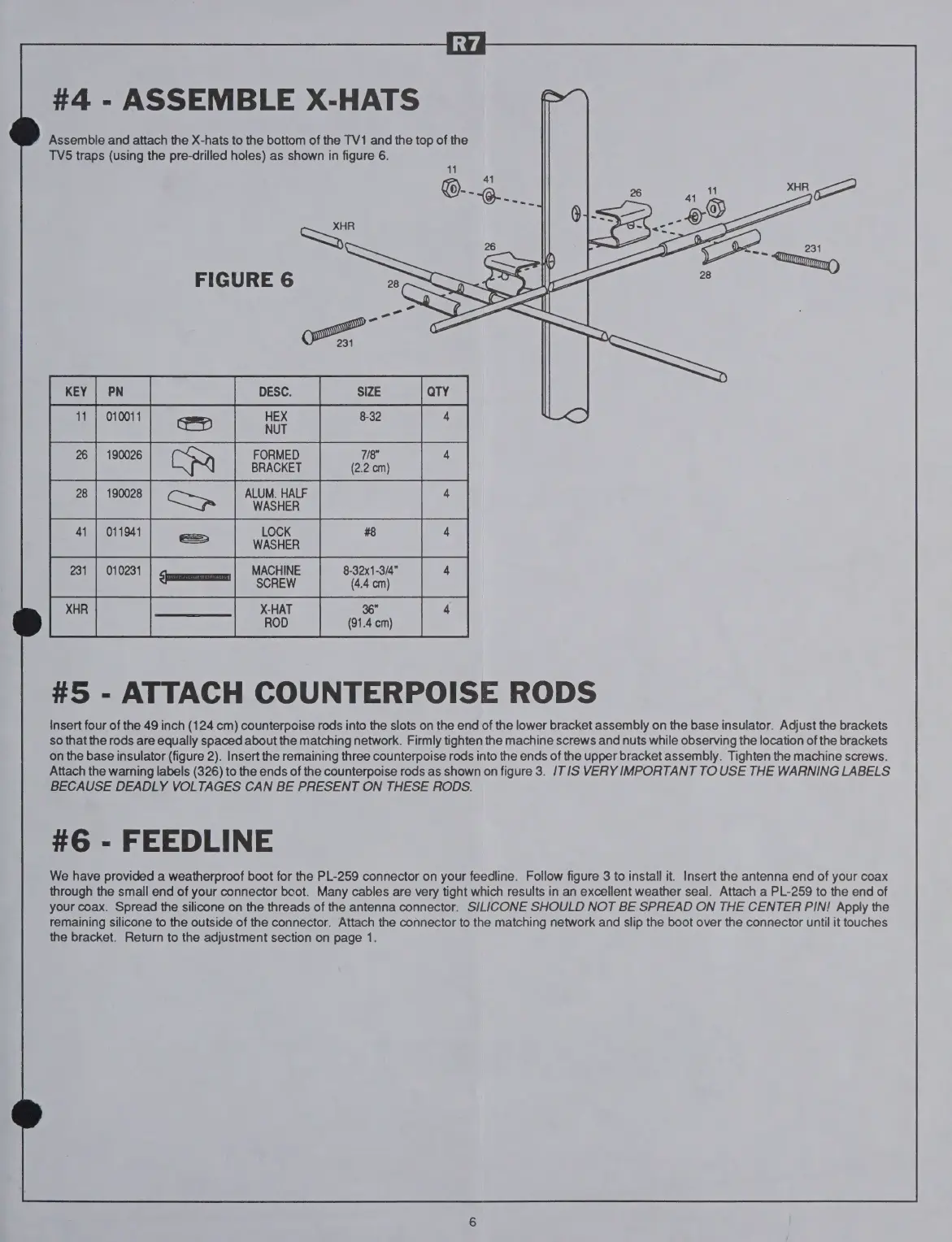

#4
-
ASSEMBLE
X-HATS
Assemble
and
attach
the
X-hats
to
the
bottom
of
the
TV1 and
the
top
of
the
TV5
traps
(using
the
pre-drilled
holes)
as
shown
in
figure
6.
14
HEX
NUT
010231
MACHINE
8-32x1-3/4"
4
XHR
X-HAT
36"
4
ROD
(91.4
cm)
#5
-
ATTACH
COUNTERPOISE
RODS
Insert
four
of
the
49
inch
(124
cm)
counterpoise
rods
into
the
slots
on
the
end
of
the
lower
bracket
assembly
on
the
base
insulator.
Adjust
the
brackets
so
that
the
rods
are
equally
spaced
about
the
matching
network.
Firmly
tighten
the
machine
screws
and
nuts
while
observing
the
location
of
the
brackets
on
the
base
insulator
(figure
2).
Insert
the
remaining
three
counterpoise
rods
into
the
ends
of
the
upper
bracket
assembly.
Tighten
the
machine
screws.
Attach
the
warning
labels
(326)
to
the
ends
of
the
counterpoise
rods
as
shown
on
figure
3.
/T/IS
VERY
IMPORTANT
TO
USE
THE
WARNING
LABELS
BECAUSE
DEADLY
VOLTAGES
CAN
BE
PRESENT
ON
THESE
RODS.
#6
-
FEEDLINE
We
have
provided
a
weatherproof
boot
for
the
PL-259
connector
on
your
feedline.
Follow
figure
3
to
install
it.
Insert
the
antenna
end
of
your
coax
through
the
small
end
of
your
connector
beot.
Many
cables
are
very
tight
which
results
in
an
excellent
weather
seal.
Attach
a
PL-259
to
the
end
of
your
coax.
Spread
the
silicone
on
the
threads
of
the
antenna
connector.
SILICONE
SHOULD
NOT
BE
SPREAD
ON
THE
CENTER
PIN!
Apply
the
remaining
silicone
to
the
outside
of
the
connector.
Attach
the
connector
to
the
matching
network
and
slip
the
boot
over
the
connector
until
it
touches
the
bracket.
Return
to
the
adjustment
section
on
page
1.
