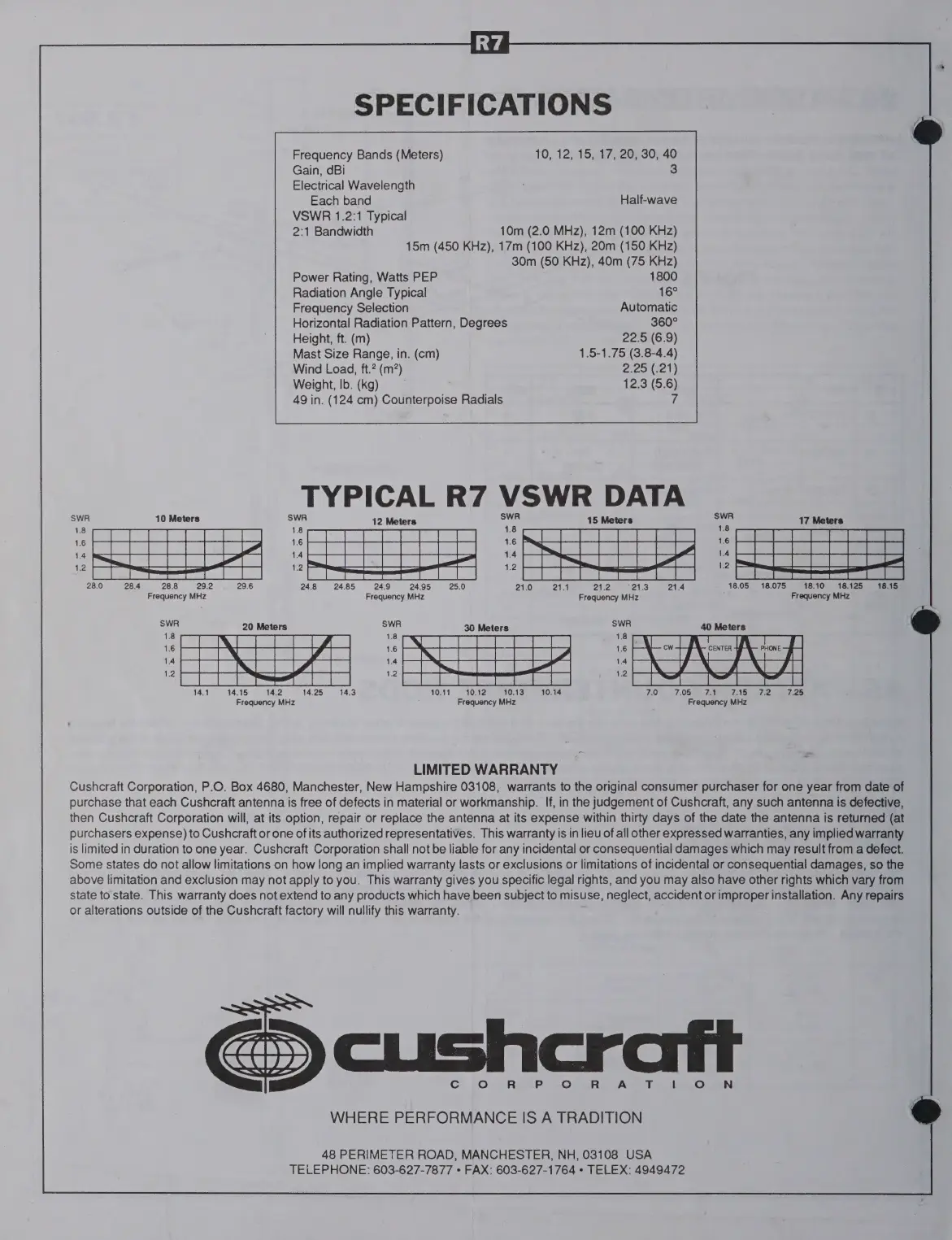

CUSHCRAFT R7 - Specifications and Warranty Information; SPECIFICATIONS; TYPICAL R7 VSWR DATA; LIMITED WARRANTY

R7
-
SPECIFICATIONS
Frequency Bands (Meters) 10, 12, 15, 17, 20, 30, 40
Gain, dBi 3
Electrical Wavelength ;
Each band Half-wave
VSWR 1.2:1 Typical
2:1 Bandwidth 10m (2.0 MHz), 12m (100 KHz)
15m (450 KHz), 17m (100 KHz), 20m (150 KHz)
30m (50 KHz), 40m (75 KHz)
Power Rating, Watts PEP 1800
Radiation Angle Typical 16°
Frequency Selection Automatic
Horizontal Radiation Pattern, Degrees 360°
Height, ft. (m) 22.5 (6.9)
Mast Size Range, in. (cm) 1.5-1.75 (3.8-4.4)
Wind Load, ft.? (m?) 225 (et)
Weight, Ib. (kg) 12.3 (5.6)
49 in. (124 cm) Counterpoise Radials 7
TYPICAL R7 VSWR DATA
SWR 10 Meters SWR 12 Meters 5 de 17 Meters
1.8 1.8 5
1.6 1.6
1.4 1.4
1.2 1.2
28.0 28.4 28.8 29.2 29.6 24.8 24.85 24.9 24.95 25.0 21.0 21.1 919 21.3 21.4 18.05 18.075 18.10 18.125 18.15
Frequency MHz Frequency MHz Frequency MHz Frequency MHz
ce 20 Meters SWR 30 Meters he 40 —
d 1.8 :
1.4 1.4 1.4
ie ie ARR
14.1 14.15 14.2 14.25 14.3 10.11 10.12 10.13 10.14 7.0 7.05 Tat 7.15 a -
Frequency MHz Frequency MHz Frequency MHz
Cushcraft Corporation, P.O. Box 4680, Manchester, New Hampshire 03108, warrants to the original consumer purchaser for one year from date of
purchase that each Cushcraft antenna is free of defects in material or workmanship. If, in the judgement of Cushcraft, any such antenna is defective,
then Cushcraft Corporation will, at its option, repair or replace the antenna at its expense within thirty days of the date the antenna is returned (at
purchasers expense) to Cushcraft or one of its authorized representatives. This warranty is in lieu of all other expressed warranties, any implied warranty
is limited in duration to one year. Cushcraft Corporation shall not be liable for any incidental or consequential damages which may result from a defect.
Some states do not allow limitations on how long an implied warranty lasts or exclusions or limitations of incidental or consequential damages, so the
above limitation and exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. This warranty does not extend to any products which have been subject to misuse, neglect, accident or improper installation. Any repairs
or alterations outside of the Cushcraft factory will nullify this warranty.
