Cushman SHUTTLE 2+2 G - Vehicle Dimensions

10
Owner’s Guide
GENERAL SPECIFICATIONS
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.

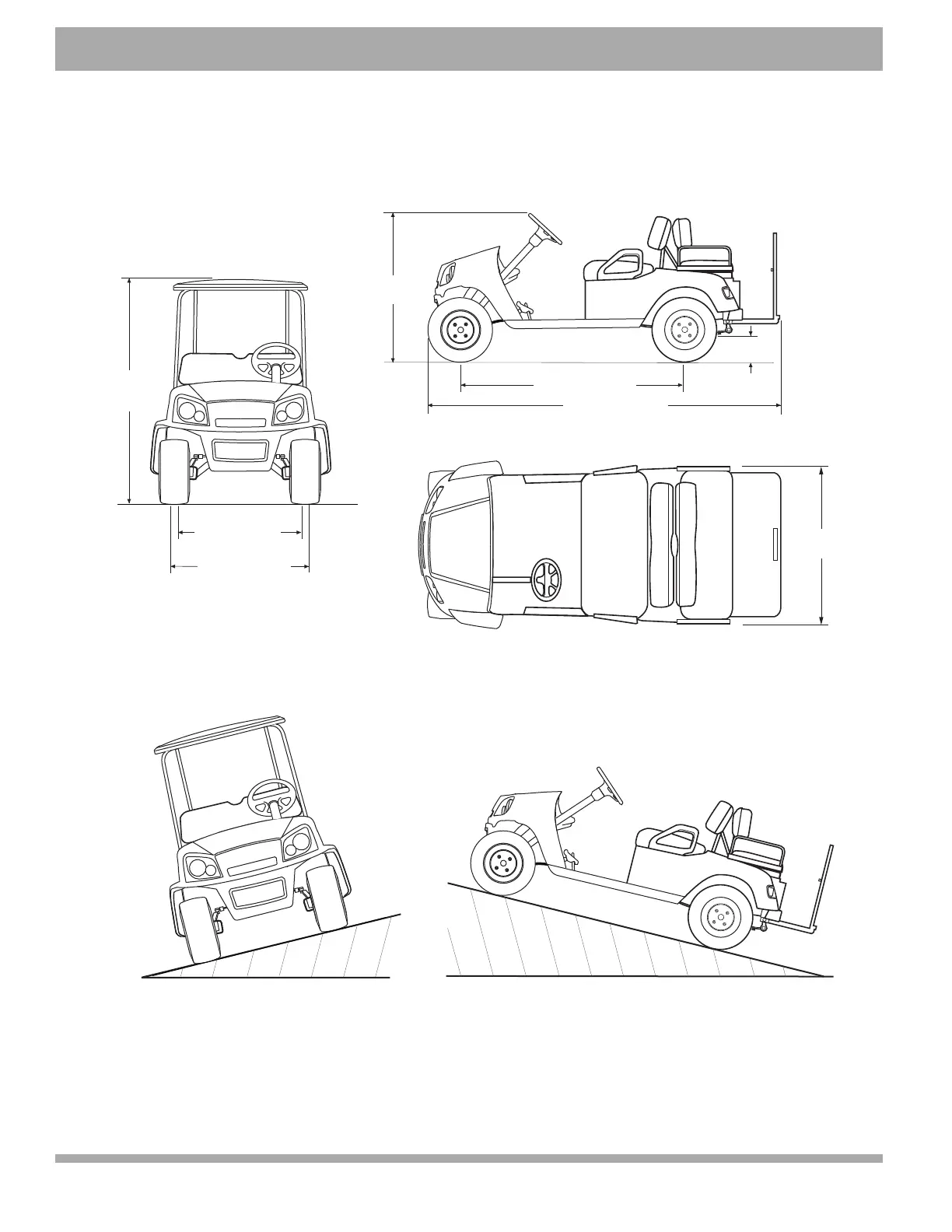

VEHICLE DIMENSIONS
Rear
38 in. (97 cm)
Front
38.5 in. (98 cm)
77 in.
(196 cm)
46.5 in
(118 cm)
108.5 in (276 cm)
65.5 in (166 cm)
4.5 in
(11 cm)
48.5 in
(123 cm)
RECOMMENDED MAX SIDE TILT
25% or 14
o
RECOMMENDED MAX RAMP GRADE
25% or 14 MAX
o
MAX
