Cushman SHUTTLE 2+2 - Page 48

661605 Service Parts Manual
Page E-9
ELECTRICAL
Rear Body
24
25
Light Assembly To Bezel
19
28
26
27
20

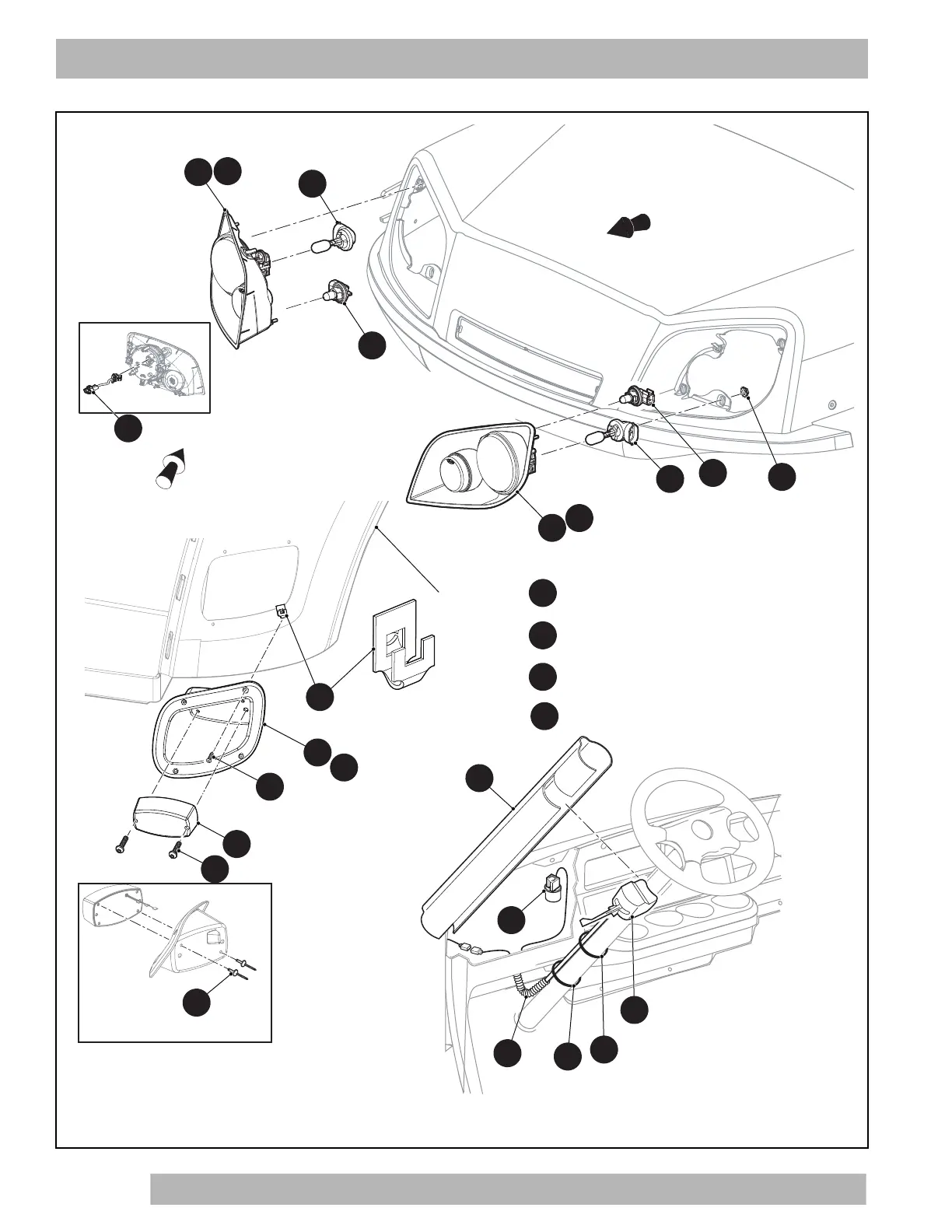

TAILLIGHT ASSEMBLY
Front of Vehicle
1
5
2
4
8
3
7
7
TURN SIGNAL SWITCH ASSEMBLY
includes item 13
12
TAILLIGHT ASSEMBLY, (DRIVER SIDE)
includes item 24, 26 - 28
22
TAILLIGHT ASSEMBLY, (PASSENGER SIDE)
includes item 25 - 28
23
HEADLIGHT ASSEMBLY
Front of Vehicle
8
14
12
15
18
11
13
30
LED HEADLIGHT REPLACEMENT KIT
includes items 29, 30
28
