FUEL SYSTEM, ENGINE, GENERATOR &
WEBASTO FURNACE
16
C28 Volvo D4 260 H.P. Diesel
C26 Volvo D3 220 HP Diesel
Generator 2.7 KW Mase, Webasto Furnace

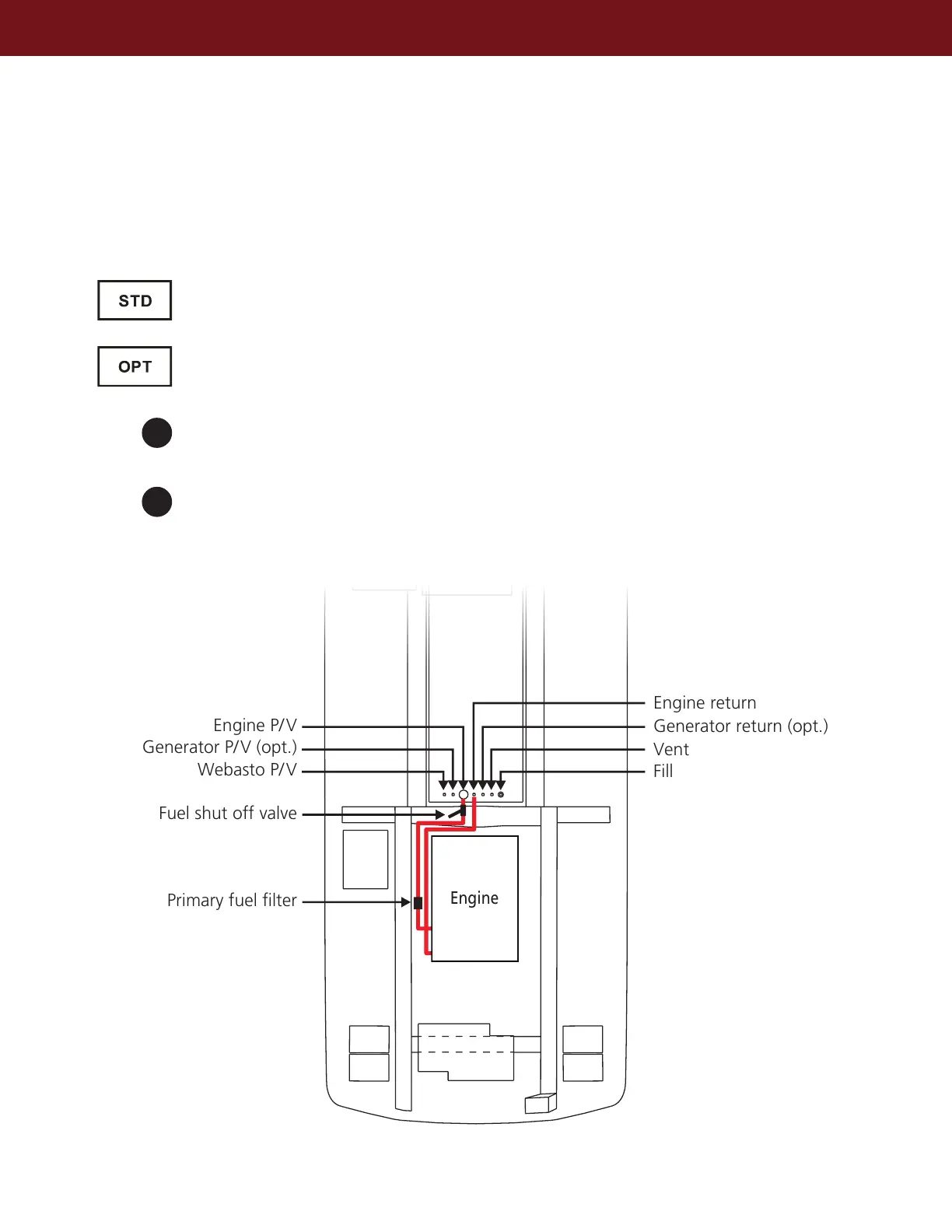

There is a secondary on engine fuel filter that is not shown on this drawing. You will be able to
find information about this filter in the diesel engine manual supplied with your boat.
Fuel shutoff and all fuel fittings are located inside the floor hatch as you enter the main cabin.
Fill
Primary fuel filter
Fuel shut off valve
Webasto P/V
Generator P/V (opt.)
Engine P/V
Vent
Generator return (opt.)
Engine return
Engine
To Next Page
