WASTE SYSTEM WITH MACERATOR PUMP
Waste tank fill level can be checked by lifting the engine access hatch and viewing the translu-
cent waste tank. Pump out can be done with the macerator or standard pump out. The Y-Valve
that switches between the two can be accessed through the Engine Hatch, aft of the engine.
30 Gallon Tank with Macerator Pump Out, Standard Pump Out, and Vent
Waste tank pump out stations are widely available.
Please follow the directions carefully for the pump out equipment you are using to avoid damage
to the waste system.
Boat owner is responsible for following all applicable laws when using the macerator
system to pump out into the surrounding waters.
Macerator
out (optional)
Waste
tank
vent
Pump
out
Check valve
Clamps from soft
hose to ABS
Clamps from soft
hose to ABS

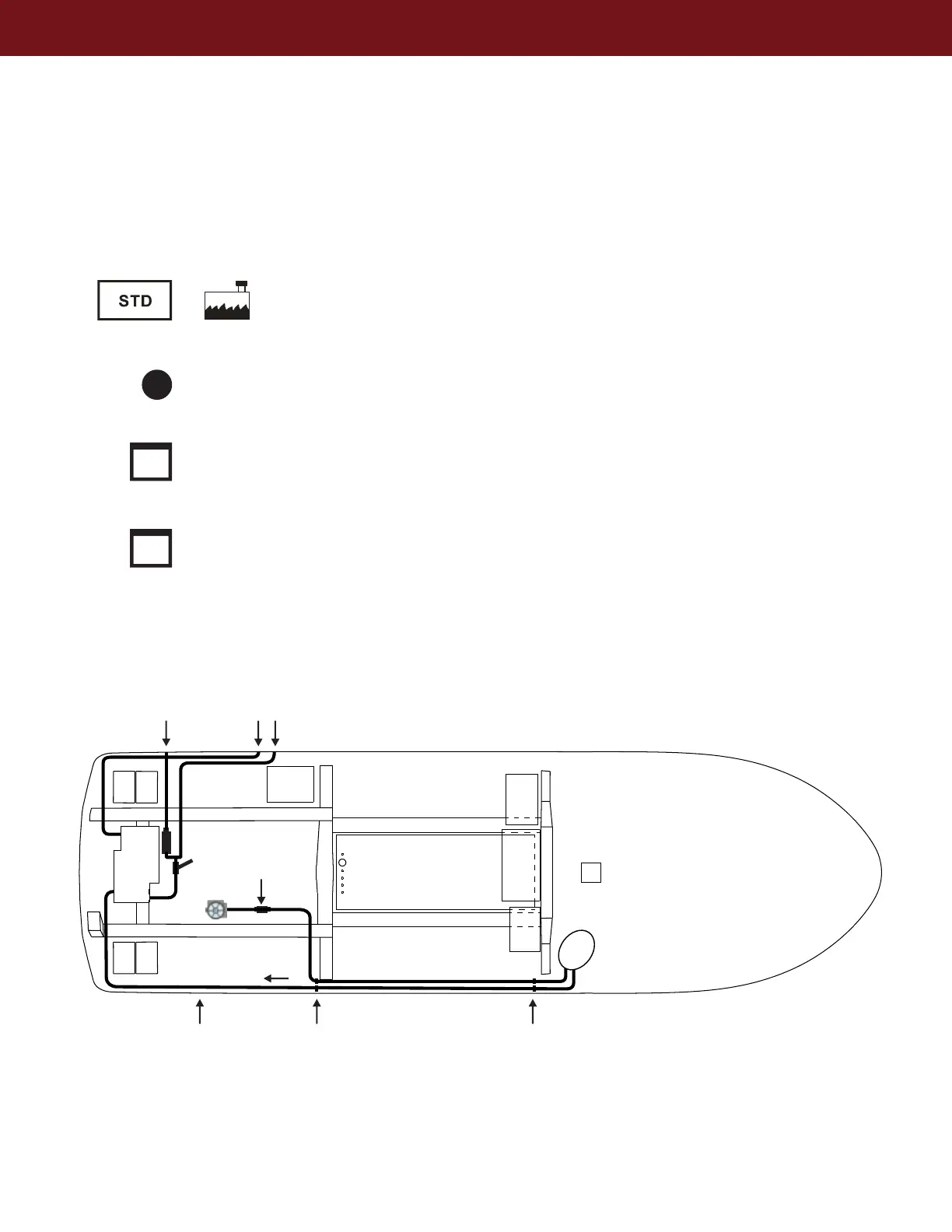

Blackwater
hose
to tank
Waste
Tank
Macerator
Y valve
Marine Head
Sea strainer
