Cutwater 30 - Fuel System, Engine, Generator & Webasto Furnace

FUEL SYSTEM, ENGINE, GENERATOR &
WEBASTO FURNACE
16
D6 Volvo 435 H.P. Diesel
Generator 5.0 KW Onan, Webasto Furnace
There is a secondary on engine fuel fi lter that is not shown on this drawing. You will be able to
fi nd information about this fi lter in the diesel engine manual supplied with your boat.

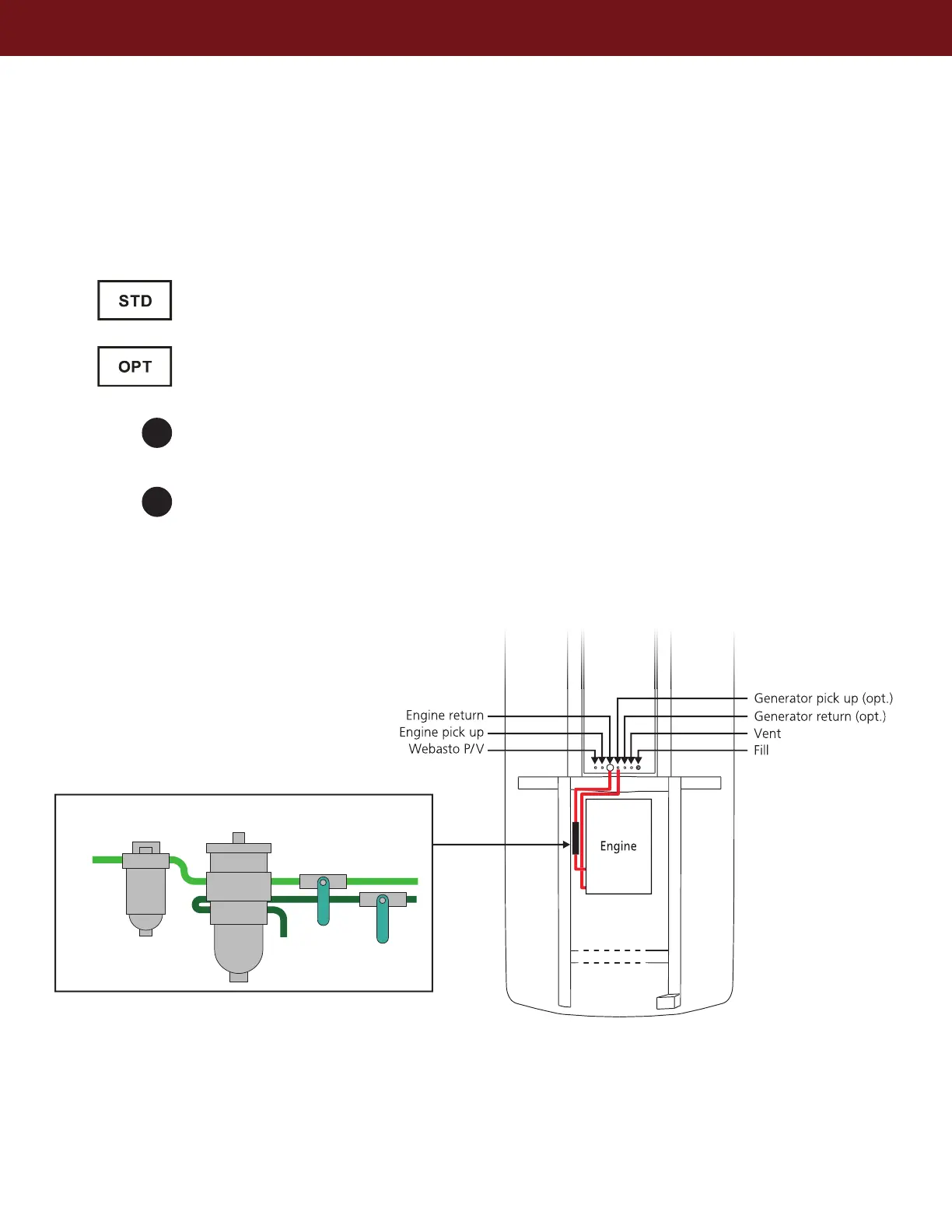

Fuel shutoff and all fuel fi lters are located on the Fuel Management Board,
port side of engine room.
Fuel management board
Fill
Webasto P
/
Webasto P/Webasto P
V
Engine pick up
Engine return
Vent
Generator return (opt.)
Generator pick up (opt.)
Engine
Generator
feed
Generator
shutoff
(off position)
Engine
shutoff
(off position)
Generator
filter
Engine
filter
Engine
feed
