Please follow below steps to implement lead-acid battery connection:
1. Assemble battery ring terminal based on recommended battery cable and terminal size
(same as Lead acid,see section 3.3.2 for details).
2. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure
the bolts are tightened with torque of 2-3Nm.Make sure polarity at both the battery and the
inverter/charge is correctly connected and ring terminals are tightly screwed to the battery
terminals.

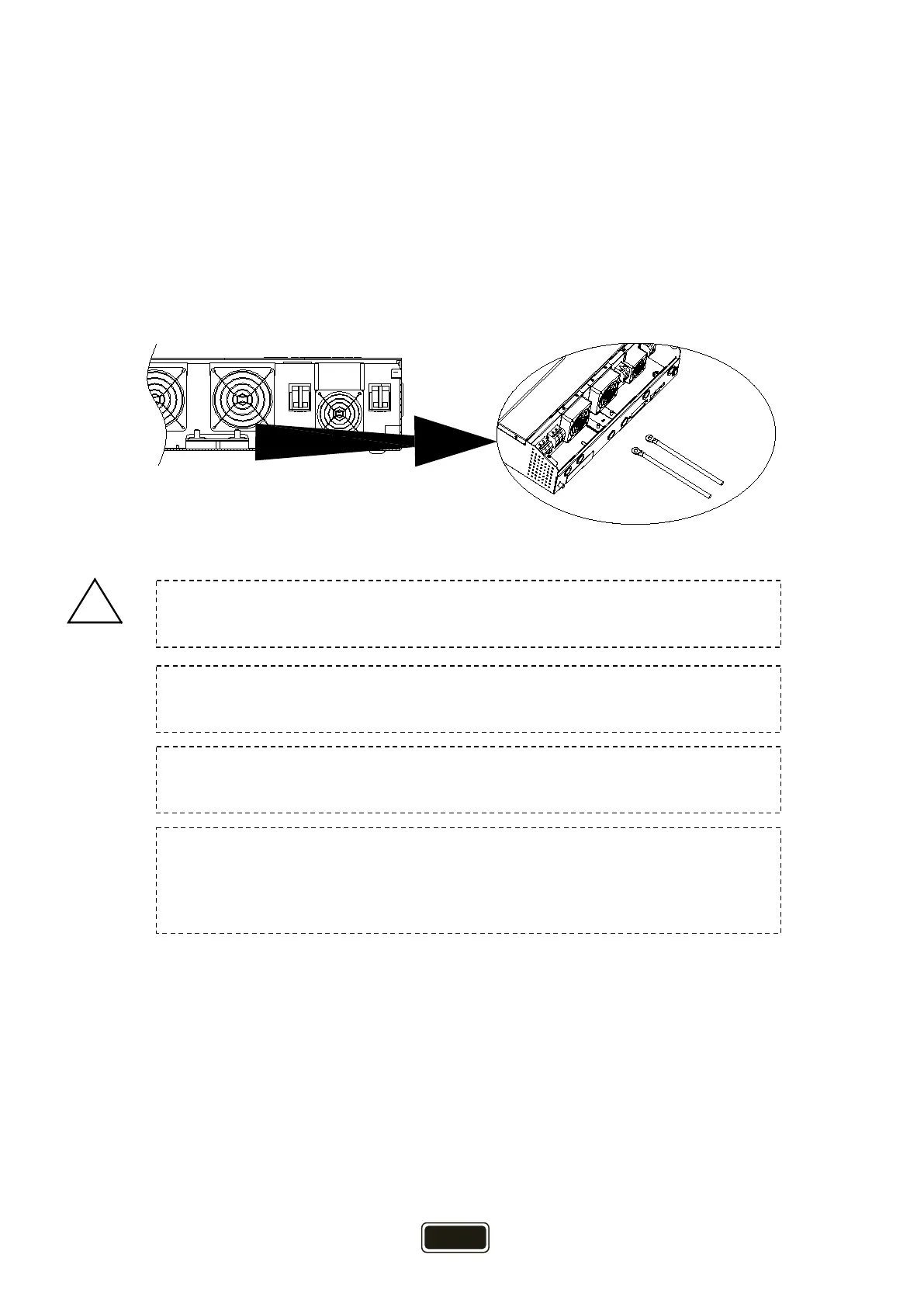

Figure 3-7
CAUTION:
Shock Hazard
Installation must be performed with care due to high battery voltage in series.
Do NOT place anything between the flat part of the inverter terminal and the
ring terminal. Otherwise, overheating may occur.
Do NOT apply anti-
oxidant substance on the terminals before terminals are
connected tightly.
Before making the final DC connection or closing DC breaker, be sure positive
(+) must be connected to positive (+) and negative (-) must be connected to
negative (-).
