3 Installation
3.1 Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You
should have received the following items inside of package:
The unit×1
User manual×1
Setting screws×3
3.2 Basic Installation Requirements
1. The installation location must be suitable for inverter’s weight for a long period time.
2. The installation location must conform to dimension of the inverter.
3. Do not install the unit on structures constructed of flammable or thermo labile materials.
4. The Ingress Protection rate is IP20 and the pollution degree is PD2, The install area shall be generally
conditioned in term of temperature, humidity and air filtration.
5. Battery installation option is not far below the position of inverter.
6. The humidity of the installation location should be 5 ~ 85%.
7. The ambient temperature should be 0℃ ~ 55℃.

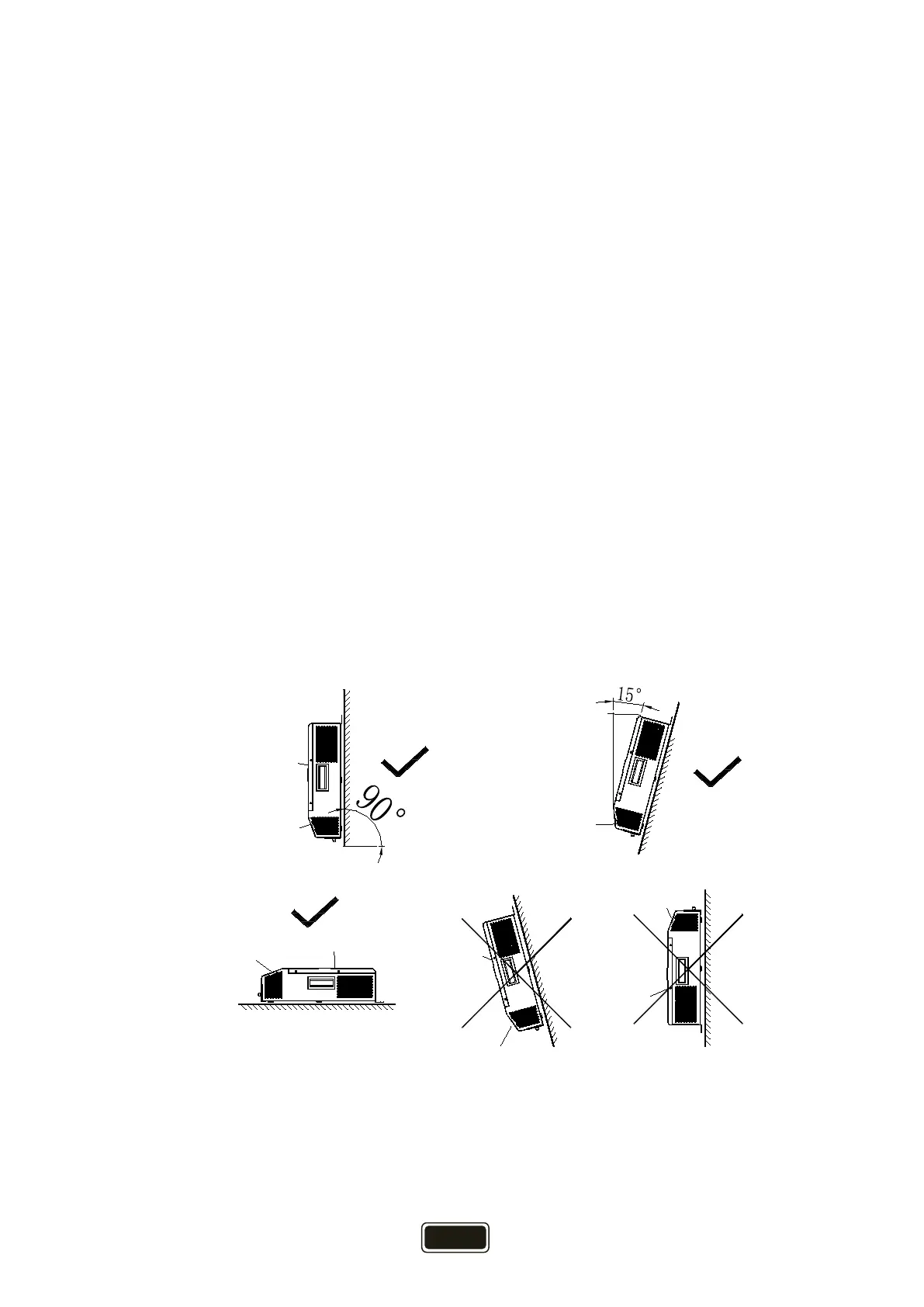

8. The inverter can be installed in vertical or lean back on plane, Please refer to the below. Installation
position shall not prevent access to the disconnecting means.
Monitor
Connector
Connector
Monitor
Monitor
Connector
Monitor
Connector
Connector
Monitor
Figure 3-1
