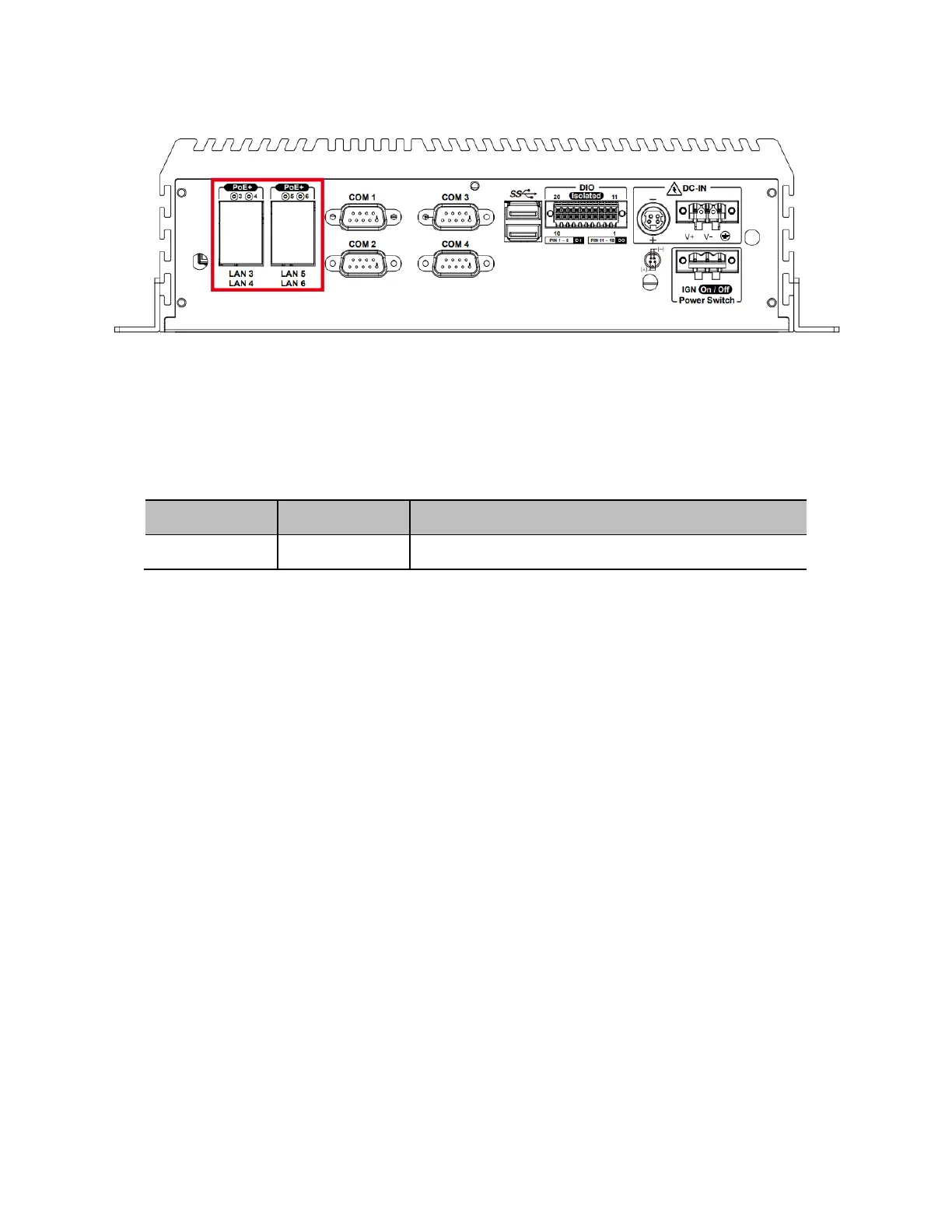

PoE (Power over Ethernet) Ports (IPC-E1s only)
There are 4x Ethernet ports on the IPC-E1s that supports IEEE 802.3at (PoE+) Power
over Ethernet connection, delivering up to 37W / 54V per port and 1000BASE-T GbE
data signals over standard Ethernet Cat 5/6 cable. Each PoE connection is powered by
Intel® i210 GbE Ethernet controller and independent PCI express interface to connect
with multi-core processor for network and data transmit optimization.
Recommendation: When using PoE, make sure DC-IN to the system is over 12V.
Ignition Control
The IPC-R1s / IPC-E1s features an ignition power control for in-vehicle applications.
The built-in MCU monitors the ignition signal and turns on/off the system according to
pre-defined on/off delay periods.
Adjusting Ignition Control Modes
The system provides 16 modes for multiple power on/off delay periods that are
adjustable with the SW5 DIP switch. The default DIP switch position is set to 0, which is
ATX/AT power mode.
