A - Isolated DIO Guide
The E1S offers a 16-bit DIO (Isolated/Non-Isolated) 20-pin terminal block connector, a
watchdog timer, and a 4-port PoE.

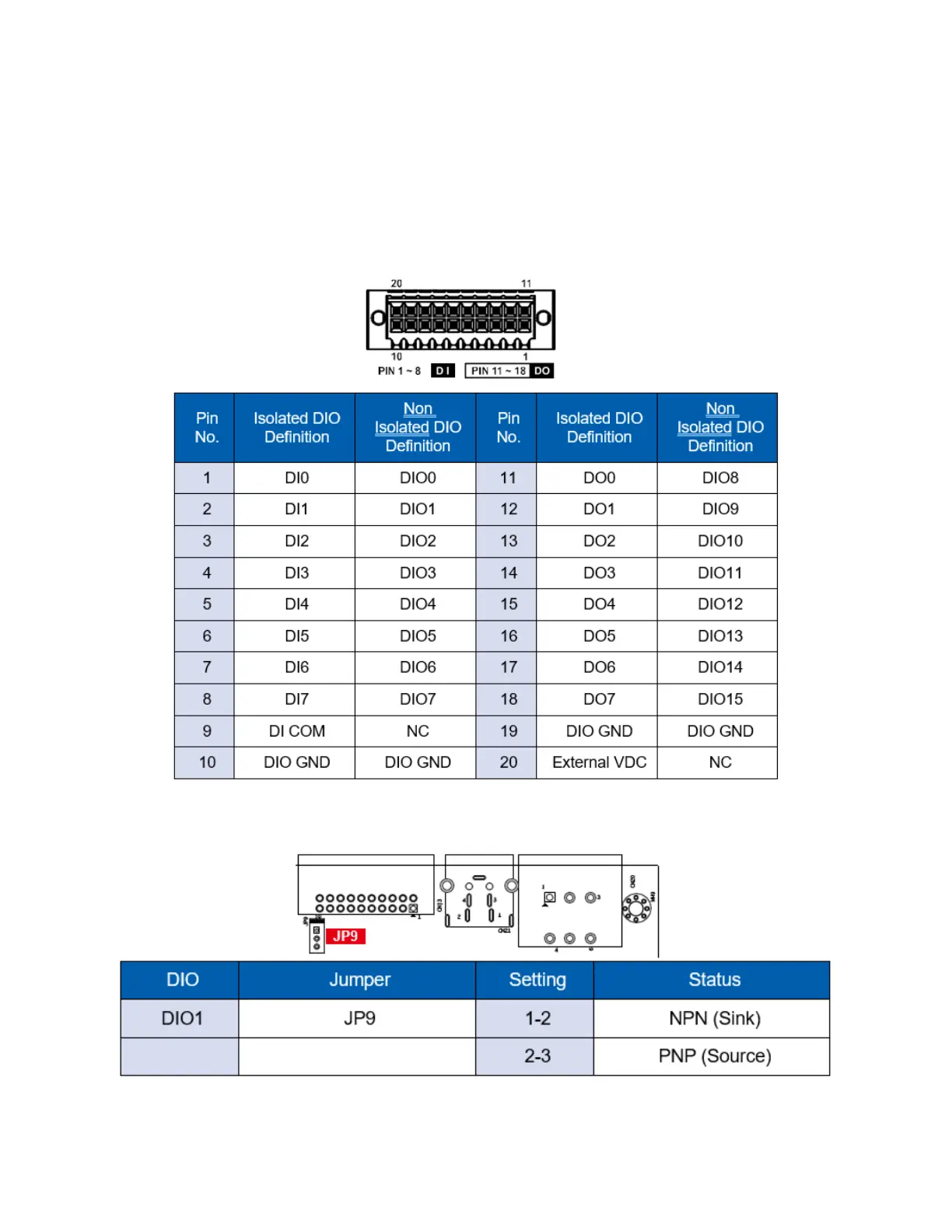

Isolated DIO pins are fix by Hardware design that cannot change in/out direction in
runtime process. DIO definition is shown below:
Isolated DIO jumper setting is shown below:
