Ignition Control Wiring

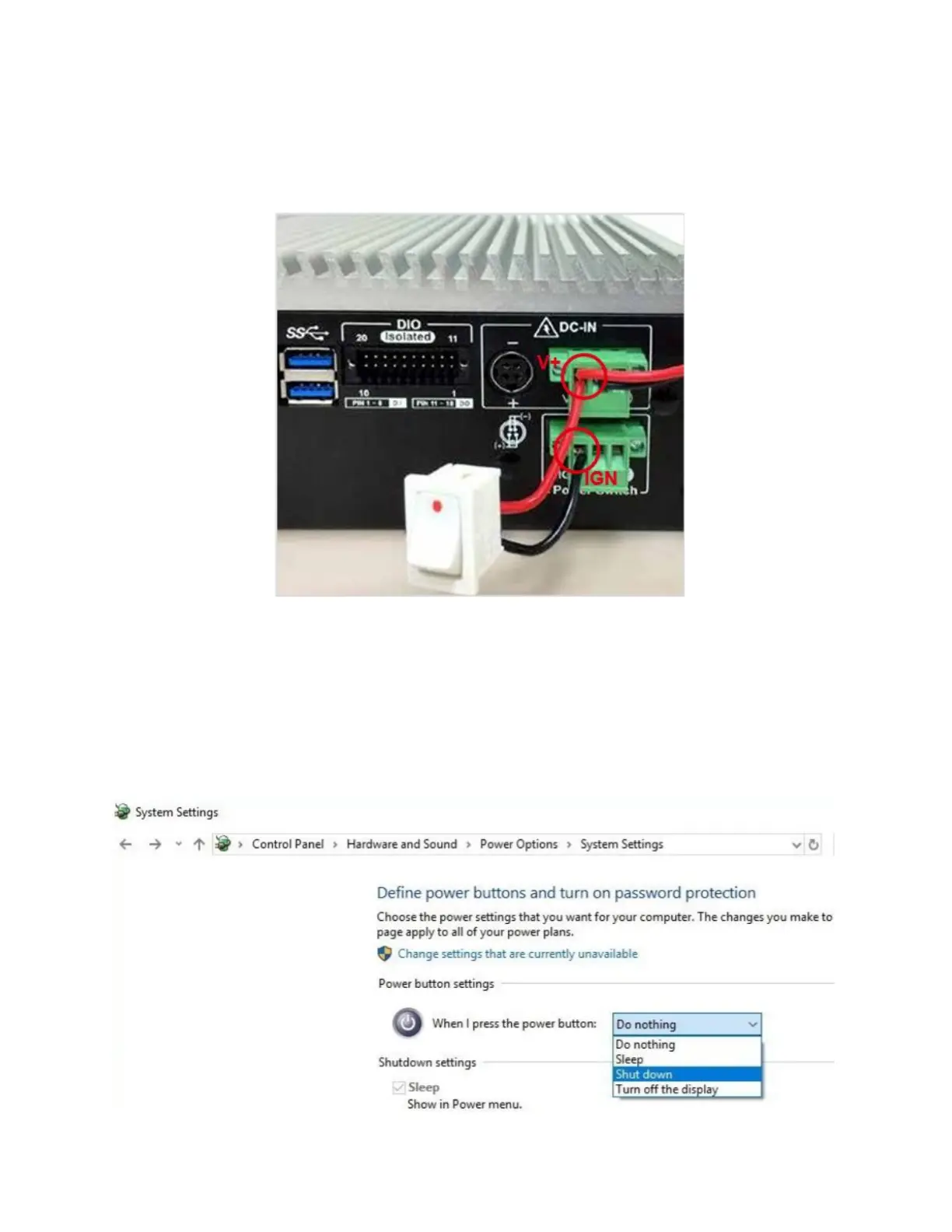

To activate ignition control, you will need to provide IGN signal through the terminal
blocks located on the rear IO. Please see below example.
Note:
• DC Power source and IGN share the same ground.
• The system supports 6V to 36V wide range DC power input while in ATX/AT
mode. When in Ignition mode, the input voltage is fixed to 12V or 24V for car
battery scenario.
• For proper ignition control, the power button setting in Windows should be set to
“Shut down”.
