INSTALLATION - CONTINUED
BASIC OPERATION

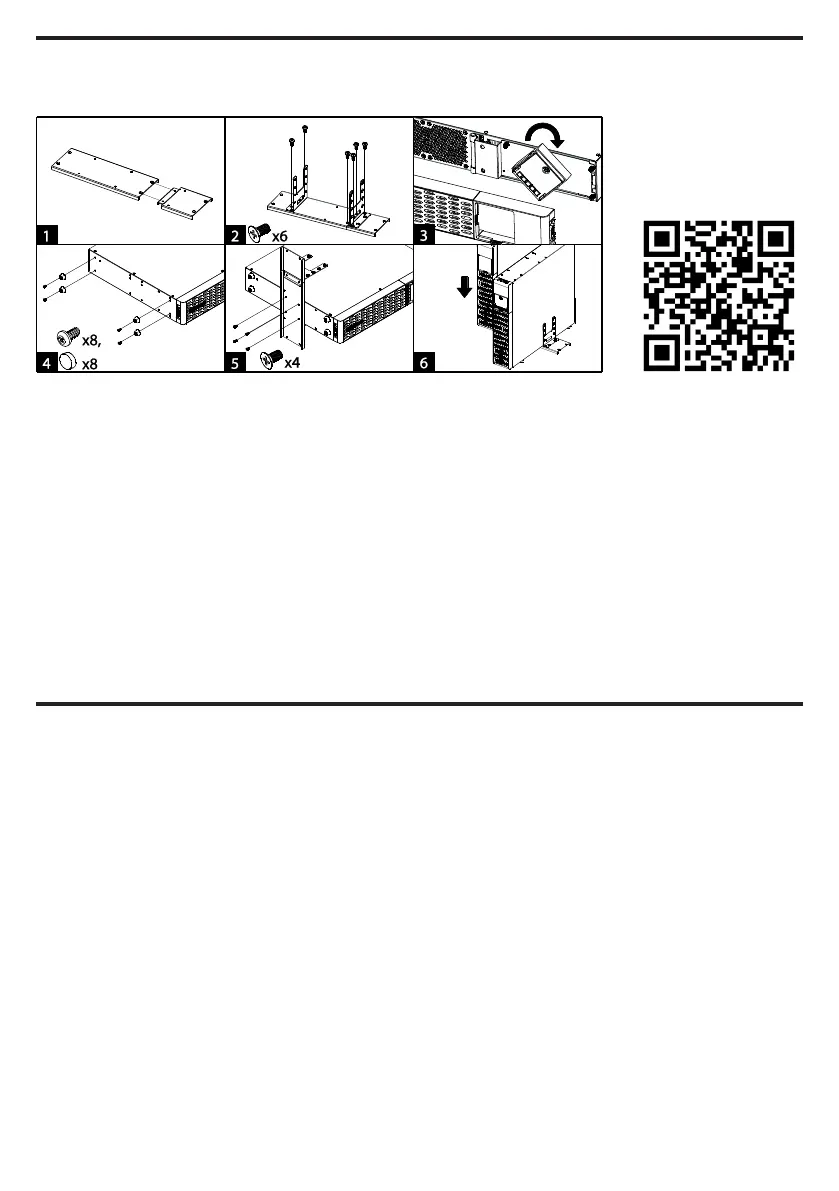

1. Combine the extended baseplate to the tower baseplate that comes with the
UPS accessories.
2. Screw in the baseplates and attach the brackets to the combined baseplate with the
provided M4 flat head screws that come with both the UPS and Extended Battery Module.
3. Remove the faceplate and rotate the LCD module of the UPS, then re-install the faceplate.
4. Screw the rubber feet with provided M4 round head screws that come with both the UPS
and Extended Battery Module.
5. To ensure stability, screw the UPS to the baseplate using provided M5 flat head screws.
6. Put the Extended Battery Module onto the assembled tower stand. You can also put the
dust covers in the screw holes on the top side of the units to prevent dust from falling into
the units.
1. Plug the Extended Battery Module into a grounded receptacle/ wall outlet.
2. Connect the Extended Battery Module to your UPS by plugging the extended battery
module connector plug into the connector socket on the rear panel of the UPS. Ensure the
color coded connector plug lines up correctly with the colors in the UPS socket, such as red
to red, black to black and green to green.
3. Connect the BM/ENV port from UPS rear panel to BM port marked “IN” on the rear panel of
the Extended Battery Module using the provided BM cable.
4. Check and modify the Extended Battery Module Quantity setting on your UPS through the
LCD module, PowerPanel® Business software or RMCARD interface (if installed) to ensure the
UPS reports an accurate runtime.
Tower Installation
Normal Use
To Next Page
