CyberPower LE850G User Manual

INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS unit
(b) User’s manual
(c) USB device cable
PowerPanel® software is available on our website.
Please visit www.cyberpowersystems.com and
go to the Software Section for a free download.

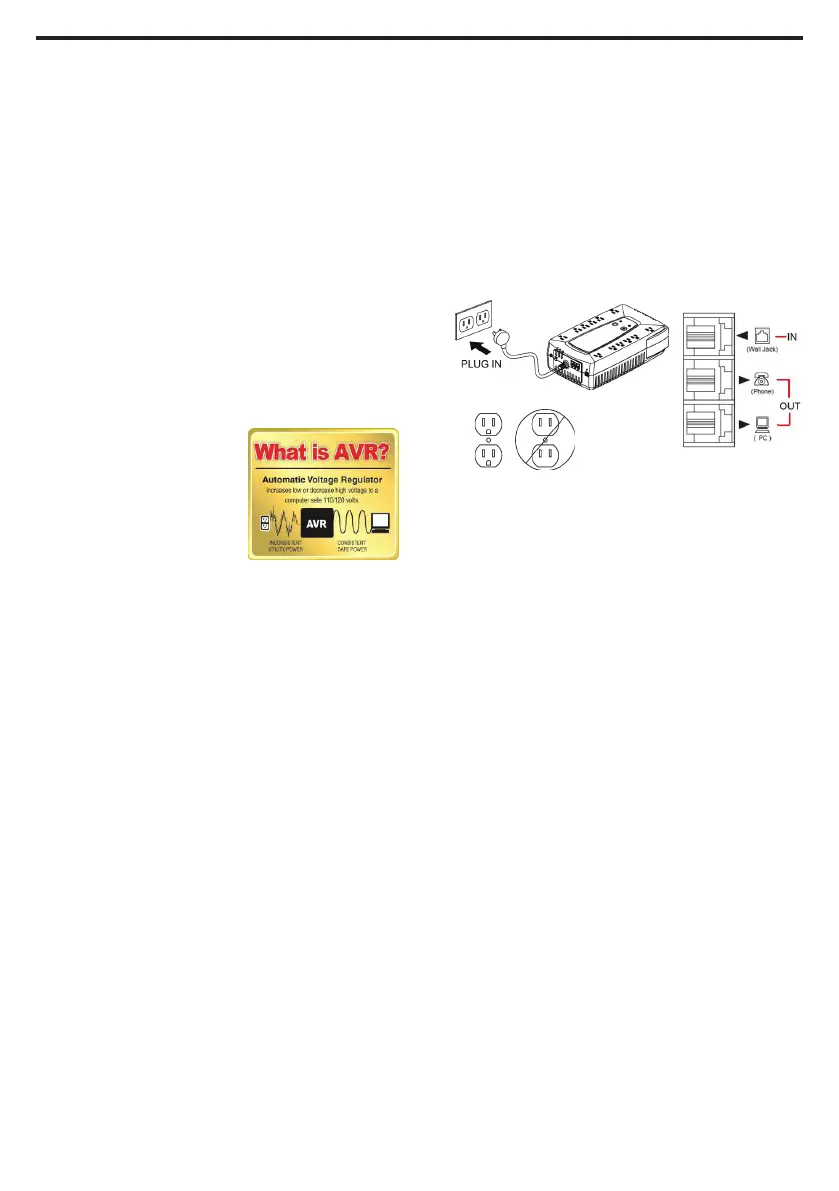

AUTOMATIC VOLTAGE REGULATOR
The LE850G / LE1000DG stabilizes inconsistent
utility power to nominal levels that are safe
for equipment. Unstable utility power can be
damaging to important data and hardware.
With Automatic Voltage
Regulation (AVR),
damaging voltage levels
are corrected to safe
levels. AVR automatically
increases low utility power
to a consistent and safe
110/120 volts.
DETERMINE THE POWER REQUIREMENTS
OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into
the UPS does not exceed the UPS unit’s
rated capacity. If the rated capacities of the
unit are exceeded, an overload condition
may occur and cause the UPS unit to shut
down or the circuit breaker to trip.
2. There are many factors that can aect
the amount of power that your electronic
equipment will require. For optimal system
performance keep the load below 80% of
the unit’s rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery’s maximum
charge capacity, it is recommended that
you charge the battery for at least 8 hours.
Your UPS is equipped with an auto-charge
feature. When the UPS is plugged into an
AC outlet, the battery will automatically
charge whether the UPS is turned on or
turned o.
2. With the UPS unit turned o and unplugged,
connect your equipment requiring
battery backup into the battery power
supplied outlets. Plug the other peripheral
equipment (printer, scanner, speakers) into
the full-time surge protection outlets. DO
NOT plug a laser printer, paper shredder,
copier, space heater, vacuum, sump pump
or other large electrical device into the
“Battery and Surge Protected Outlets”.
The power demands of these devices will
overload and possibly damage the unit.
3. Plug the UPS into a 2-pole, 3-wire grounded
receptacle (wall outlet). Make sure the wall
branch outlet is protected by a fuse or circuit
breaker and does not service equipment with
large electrical demands (e.g. air conditioner,
refrigerator, copier, etc.). The warranty
prohibits the use of extension cords, outlet
strips, and surge strips.
4. Press the power switch to turn the unit on.
The Power On indicator light will illuminate
green and the unit will “beep” twice.
5. If an overload is detected, an audible alarm
will sound and the unit will emit one long
beep. To correct this, turn the UPS o and
unplug at least one piece of equipment
from the battery power supplied outlets.
Make sure the circuit breaker is depressed
and then turn the UPS on.
6. To maintain optimal battery charge, leave the
UPS plugged into an AC outlet at all times.
7. To store the UPS for an extended period
of time, cover it and store with the battery
fully charged. While in storage, recharge
the battery every three months to ensure
optimal battery life.
8. Ensure the wall outlet and UPS are located
near the equipment being attached for
proper accessibility.
9. Lay the UPS horizontally or use the key-
hole mounting slots to ax the UPS to
the wall in the proper orientation. DO NOT
stand the UPS up vertically.

CyberPower LE850G Specifications

General

Waveform	Sine
Output power	460 W
UPS topology	Line-Interactive
Product color	Black
Battery voltage	12 V
Input frequency	57/63 Hz
Audible alarm(s)	Yes
Battery capacity	7.2 Ah
Output frequency	60 Hz
Battery technology	Sealed Lead Acid (VRLA)
Audible alarm modes	Fault, Low battery alarm, Overload alarm
Surge energy rating	1030 J
Battery recharge time	8 h
Output power capacity	0.85 kVA
Short-circuit current (Isc)	15 A
Number of batteries included	1 pc(s)
Input operation voltage (min)	- V
Output operation voltage (min)	120 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Number of batteries supported	1
Form factor	Tower
Cable length	2 m
LED indicators	Power
Power plug	NEMA 5-15P
AC outlet types	NEMA 5–15R
AC outlets quantity	12 AC outlet(s)

Weight and Dimensions

Depth	89 mm
Width	310 mm
Height	178 mm
Weight	6300 g
Package depth	374.65 mm
Package width	127 mm
Package height	247.65 mm
Package weight	6600 g
