CyberPower OLS1000E User Manual

Copyright © 2012 CyberPower Systems, Inc.
BASIC OPERATION
4

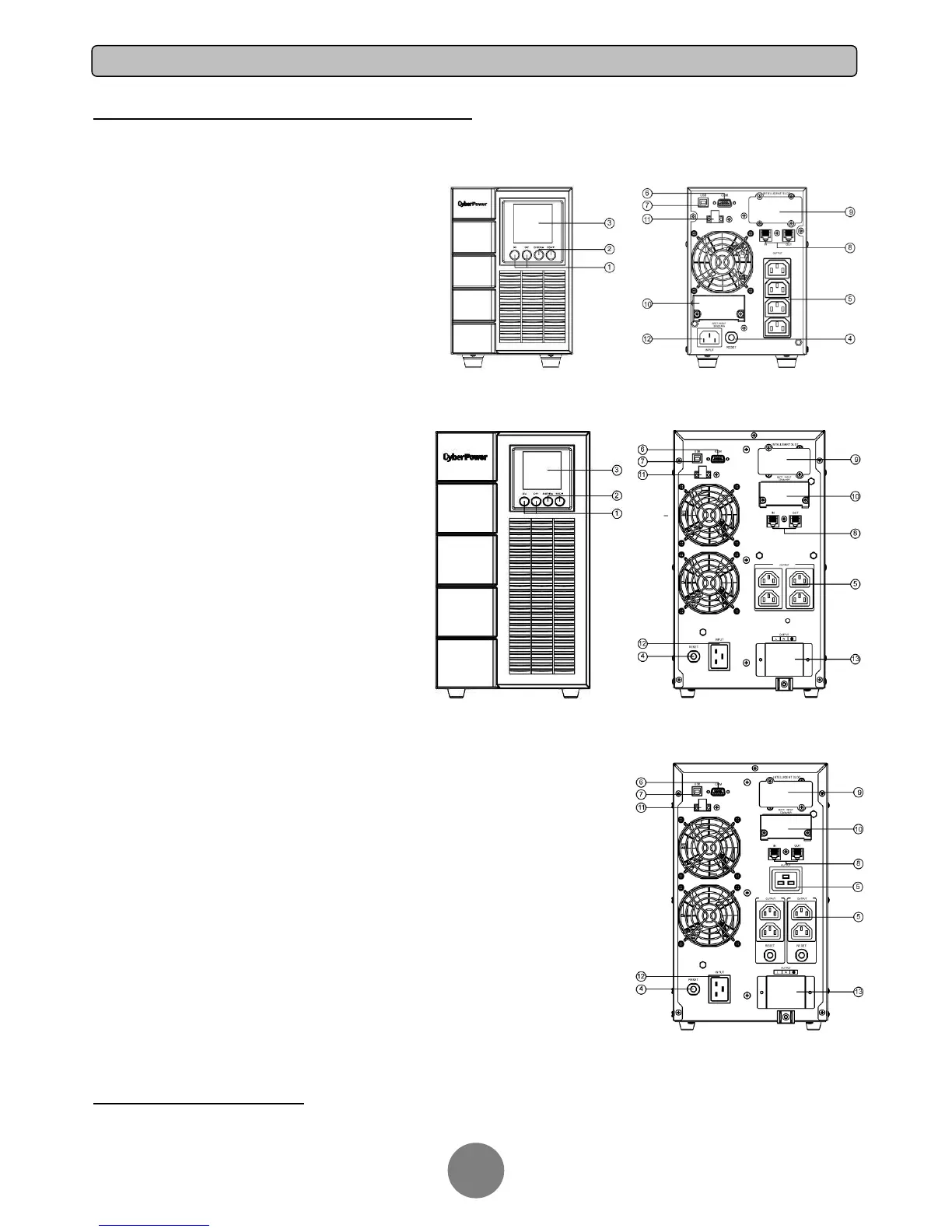

POWER MODULE FRONT/REAR PANEL DESCRIPTION
1. Power On/Off Button
Master ON/OFF for the UPS.
2. Function Buttons
Scroll up, scroll down, select and cancel LCD
menu.
3. Multifunction LCD Readout
Indicate status information, settings and events.
4. Input Circuit Breaker
Provide input overload and fault protection.
5. Battery Backup & Surge Protected Outlets
Provide battery backup and surge protection.
They ensure power is provided to connected
equipment over a period of time during a power
failure.
6. Serial Port
Serial port provides communication between the
UPS and the computer. The UPS can control the
computer’s shutdown during a power outage
through the connection while the computer can
monitor the UPS and alter its various
programmable parameters.
7. USB port
This is a connectivity port which allows
communication and control between the UPS
and the connected computer. It is recommended
to install the PowerPanel® Business Edition
Agent software on the PC/Server connected
with the USB cord.
8. Surge Protected Communication Ports
RJ-45/RJ-11
These ports are used to protect standard
RJ-45/RJ-11 based products (ADSL, LAN,
Phone/ Modem-Lines) and cabling systems from
surges.
9. SNMP/HTTP Network slot
Slot to install the optional SNMP card for remote
network control and monitoring.
10. Extended Runtime Battery Module
Connector
Connect to additional external battery modules.
11. EPO (Emergency Power Off) Connector
Enable Power-Off in emergency from a remote
location.
12. AC Input Inlet
Connect the AC Power cord to a properly wired
and grounded outlet.
13. Output Terminal Block
OLS1000E/EXL, OLS1500E/EXL OLS1000E/EXL, OLS1500E/EXL
OLS2000E/EXL, OLS3000E/EXL OLS2000E/EXL
OLS3000E/EXL
Connect to your equipment.

CyberPower OLS1000E Specifications

General

Waveform	Sine
Efficiency	95 %
Output power	800 W
Input frequency	40/70 Hz
Audible alarm modes	Battery replacement
Output power capacity	1 kVA
Emergency Power Off (EPO)	Yes
Power protection features	Short circuit
Surge protection features	Fax, Modem, Network, Telephone
Input operation voltage (max)	280 V
Input operation voltage (min)	120 V
Output operation voltage (max)	240 V
Output operation voltage (min)	208 V
Power plug	C14 coupler
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Form factor	Mini Tower
Cooling type	Active
Display type	LCD
Product color	Black
Battery voltage	12 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h
Number of batteries supported	3
Typical backup time at full load	6 min
Typical backup time at half load	16 min
Bundled software	PowerPanel BE
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	394 mm
Width	151 mm
Height	225 mm
Weight	13100 g
