If Your Cycle Has a CardioTouch Heart Rate
Monitor
Remove the upper three round plugs from the
display upright. Feed the cable from the
CardioTouch handlebars through the large hole
in the display upright until it emerges through
the hole in the display console mounting plate.
Attach the handlebars to the display upright
with two 1/2" screws (HS-41006). See Figure 5.
Page 2-6
Cybex 700C Cycle and 700R Recumbent Owner’s Manual

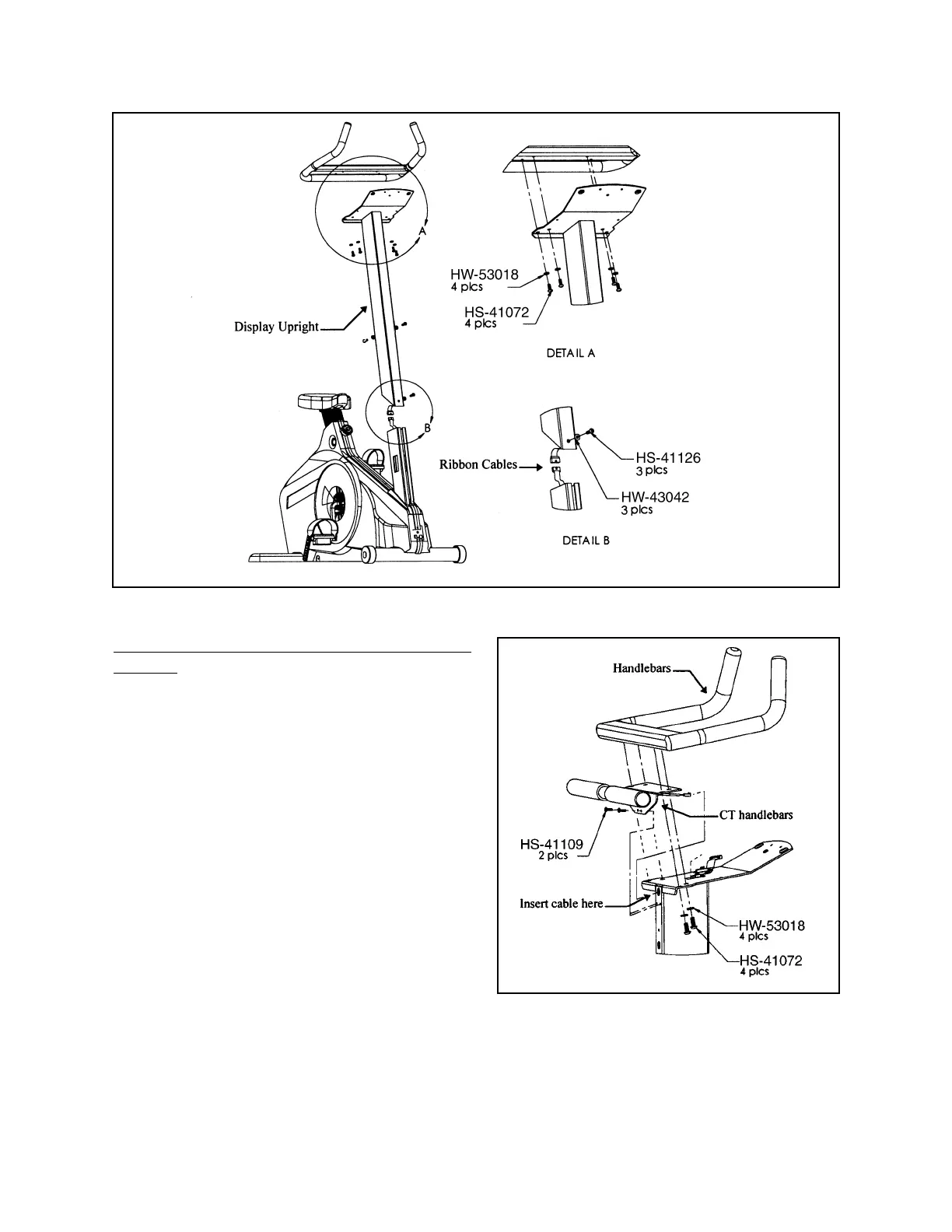

Figure 4
Figure 5
