Cybex Owner’s Manual
26

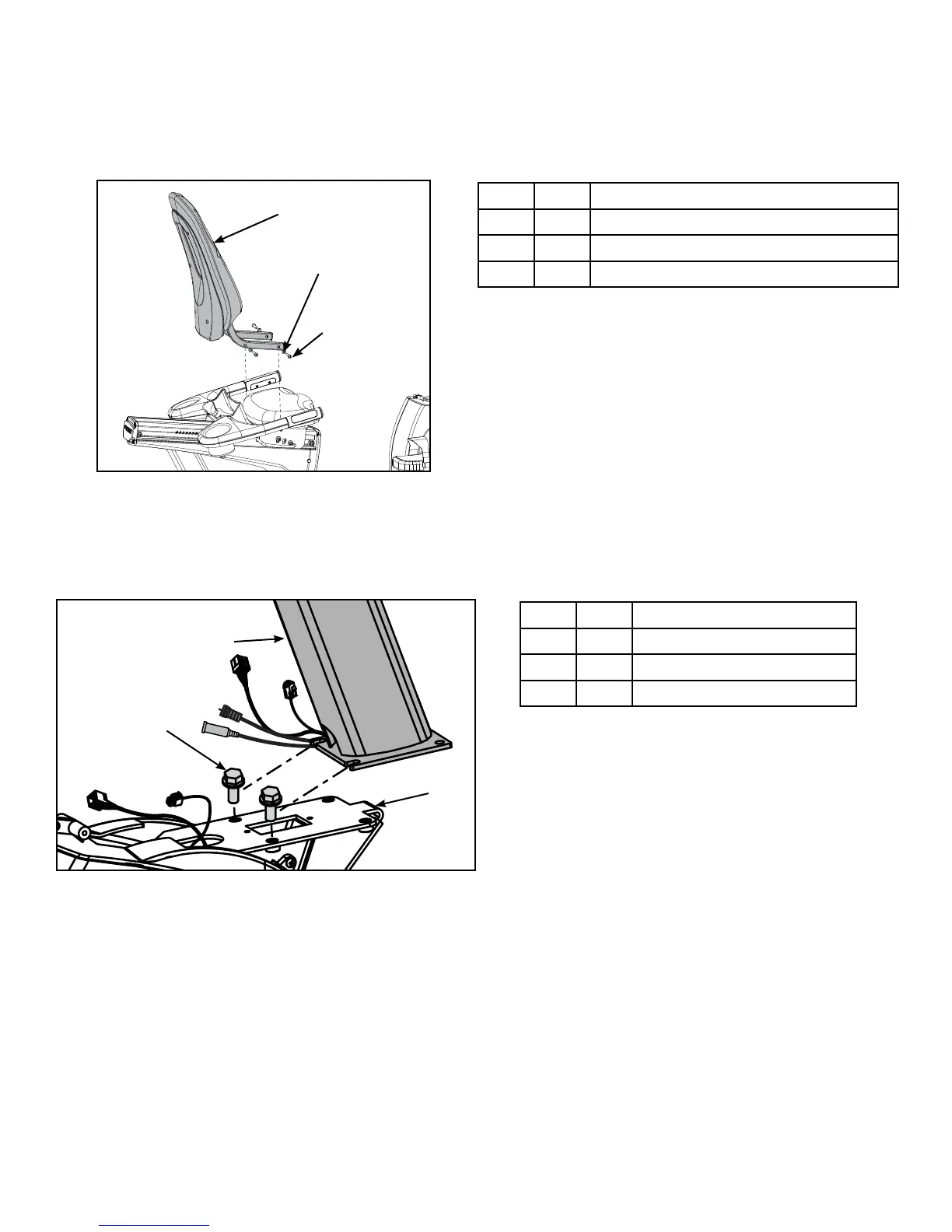

Install seat back assembly.
1. Place the seat back assembly in the correct position and hand thread each of the screws and
four washers.
3
1
2
Item Description
1 5 Seat Back Assembly
2 14 Washers (4)
3 17 Screws (4)
2. Securely fasten the screws with the 3/16” Allen wrench provided.
Attach the console assembly to base assembly.
1. Hand thread two mounting screws into the base assembly.
2
1
3
Item Description
1 2 Console Assembly
2 13 Screws (2)
3 1 Base Assembly
The console assembly will need to be supported during steps 2 through 4.
To Next Page
