CYBEX Arc Trainer 610A Service Manual

Service
Page 4-29
Cybex Arc Trainer 610A Service Manual
4. Remove arm.
A. Using a 7/32” Allen wrench remove the two screws and two washers securing the arm to the
frame.
B. Remove arm from frame.
5. Attach the new arm.
A. Slide the (appropriate) arm into the frame.
B. Using a 7/32” Allen wrench secure the arm to the frame using the screws and washers
removed in step 4A.
C. Using a Phillips head screwdriver or 3/16” Allen wrench, attach handle link with the
(appropriate) screw securing the cap. See Figure 24.

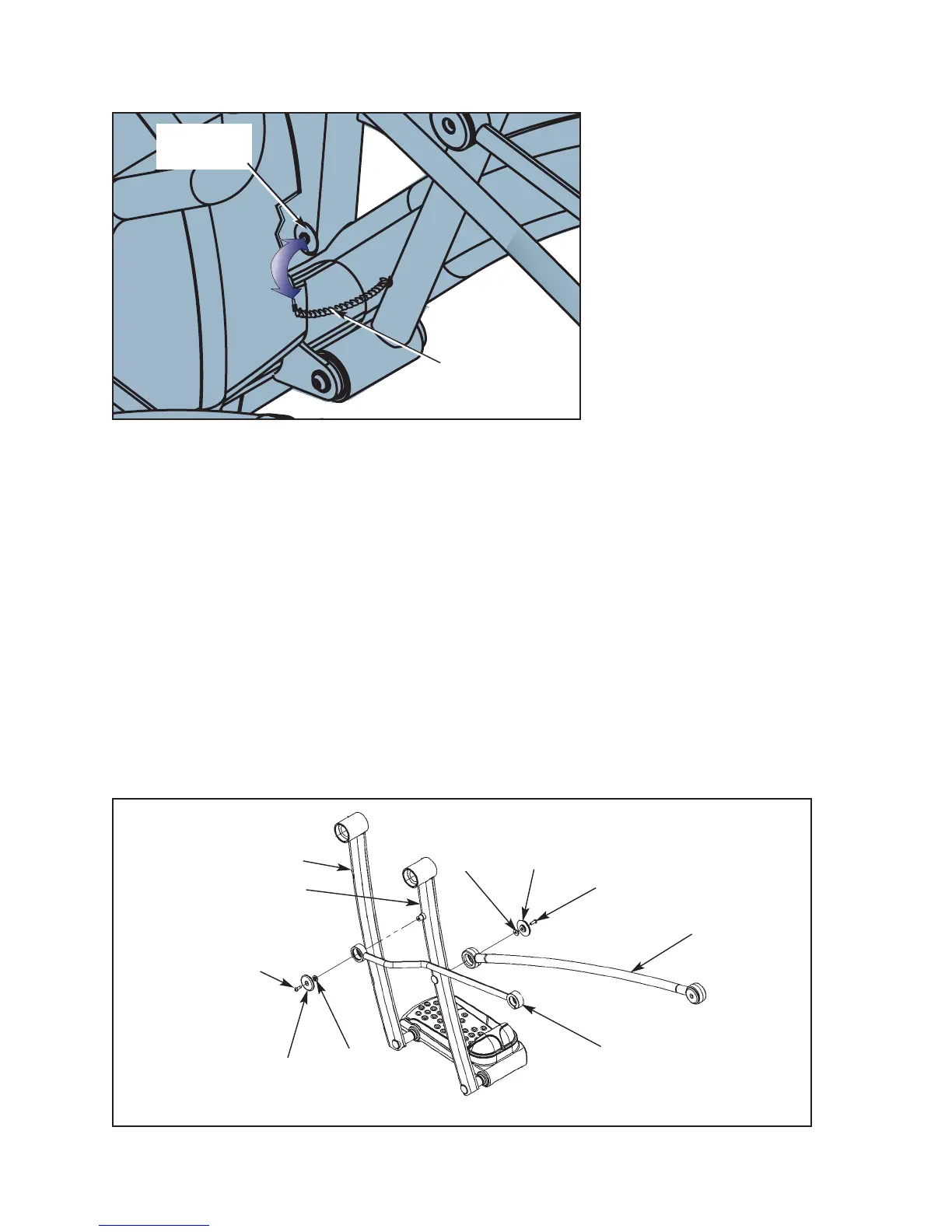

Figure 23
Figure 24
Contact Heart
Rate Cable
Heart Rate
Cable Plug
Linkage Rod
Handle Link
Foot Plate Arm Rear
Foot Plate Arm Front
Cap
Washer
SHCS
Cap
Washer
SHCS

CYBEX Arc Trainer 610A Specifications

General

Brand	CYBEX
Model	Arc Trainer 610A
Category	Elliptical Trainer
Language	English
