CYBEX Arc Trainer 610A Service Manual

4. Remove the side covers.
A. Remove the six screws and six washers
securing each side cover in place. See
Figure 5.
B. Remove both side covers. NOTE: The
gasket will come off with one of the side
covers. See Figure 5.
5. Remove the crank covers.
A. Using a Phillips head screwdriver, remove
the three screws securing each crank
cover in place. See Figure 6.
B. Remove both crank covers.
! WARNING: Failure to release the drive belt
tension may cause personal injury
and may damage the unit.
6. Remove the lower pivot assembly.
A. Using a 7/16” socket wrench, remove
the two screws, two lock washers and
two flat washers from the lower pivot
shaft. See Figure 7. NOTE: The tension is
now released. The primary belt can be
replaced without loosening the idler pulley.
NOTE: If you are not replacing the secondary
belt, leave the lower pivot assembly loose
in its place, skip steps 6B-8E and
continue with step 9.
B. Remove the lower pivot assembly out
of the secondary belt and from the frame.
See Figure 8.
7. Remove the secondary belt (if applicable).
A. Slide the secondary drive belt off the unit
and discard it.
Cybex Arc Trainer 610A Service Manual
Service
Page 4-8

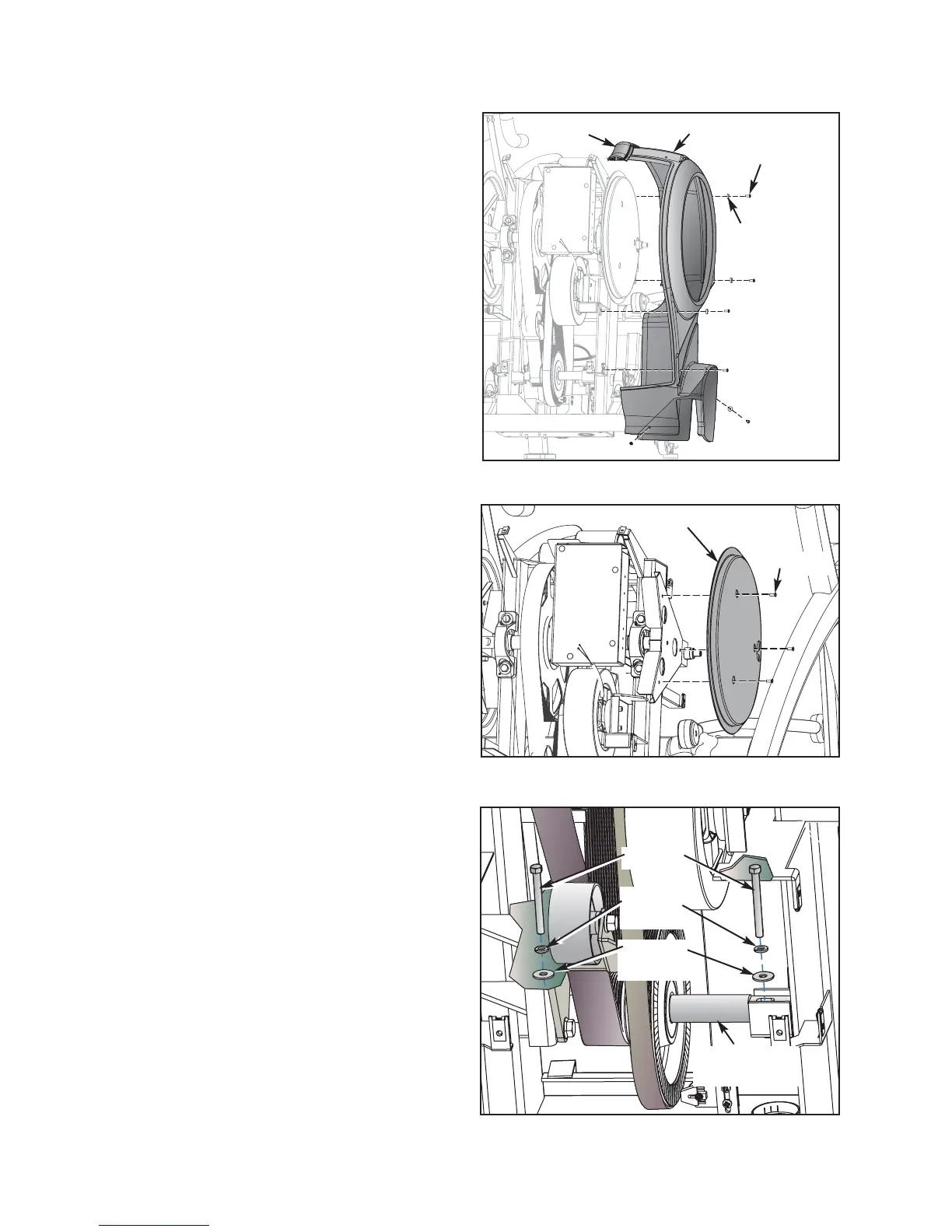

Figure 5
Figure 6
Screw (6)
Side Cover
Crank Cover
Screw (3)
Figure 7
Screw
Lock
Washer
Flat
Washer
Lower Pivot
Shaft
Gasket
Washer (6)
