Service
Page 4-9
NOTE: If you are not replacing the primary belt skip to
step 14.
! WARNING: Do not touch components on the lower
board. A charge can remain after
unplugging the power cord and turning off
the unit.
8. Remove the lower board assembly (if applicable).
A. Pull out on the lower board shield. See Figure 9.
NOTE: It will snap out.
B. Disconnect the elevation motor cable from the
lower board. See Figure 10.
C. Using a 3/8” nutdriver, remove the nut, washer
and ground wire from the stud above the
lower board. See Figure 10.
D. Using a Phillips head screwdriver,
remove the top two screws from the
lower board assembly and loosen the
bottom two screws. See Figure 11.
E. Slide the lower board assembly to the
left and off the two screws, then gently
let it suspend by the cables.
9. Remove the crank shaft assembly (if
applicable).
A. Using a 9/16” socket wrench and a 9/16”
open end wrench, remove the two bolts,
four flat washers and two nuts from each
of the top pillow blocks. See Figure 12.

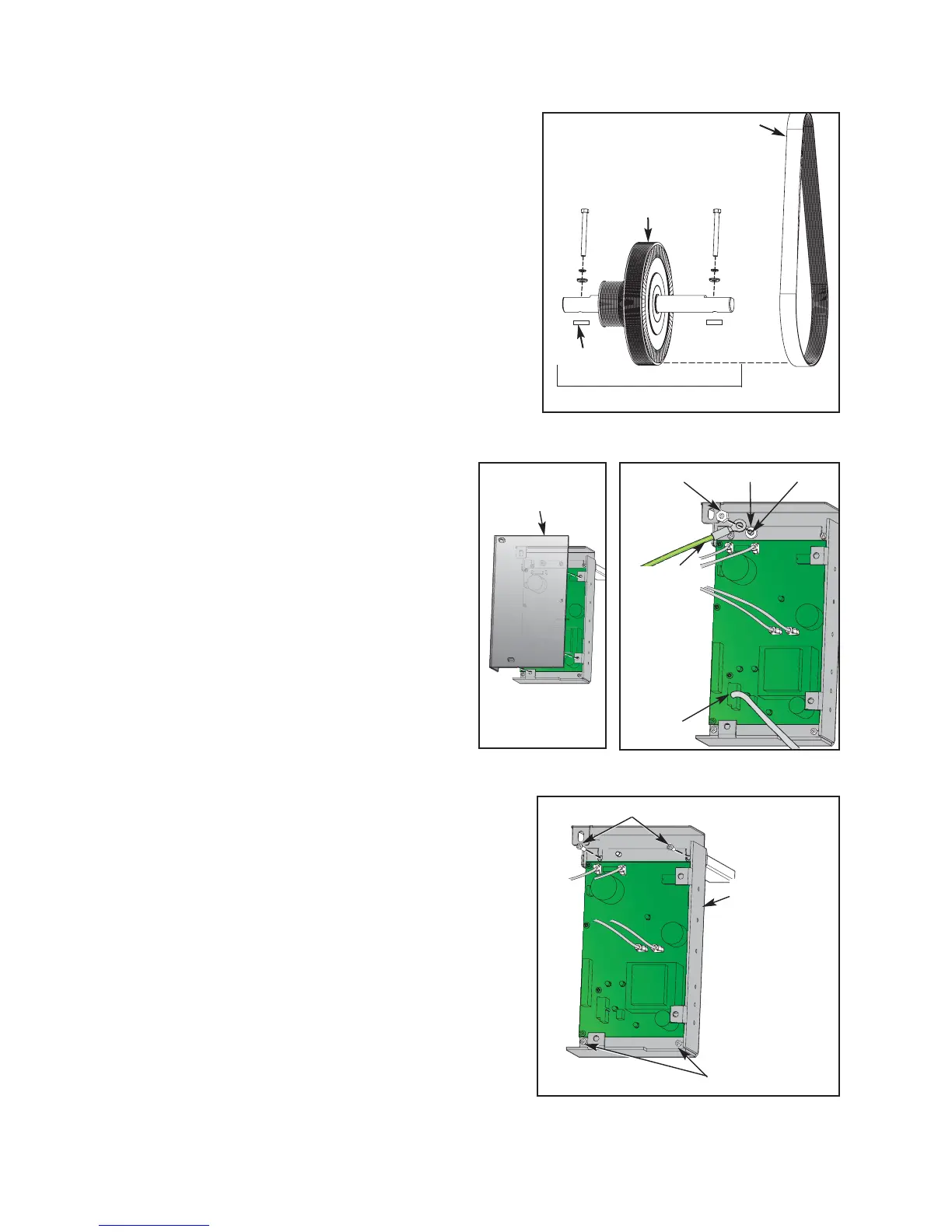

Figure 9
Lower Board
Shield
Figure 10
Nut
Elevation
Cable
Washer Stud
Ground
Wire
Figure 11
Remove Top Screws
Loosen Bottom
Screws
Figure 8
Lower Pivot Assembly
Lower
Pulley
Secondary Drive Belt
(Removed in Step 7)
Lower Board
Assembly
Spacer (2)
