Setup
and Assembly
Page 5-7
Cybex Arc Trainer 620A/629A Owner’s Manual
#3
#12
Figure 8
#4
Figure 6

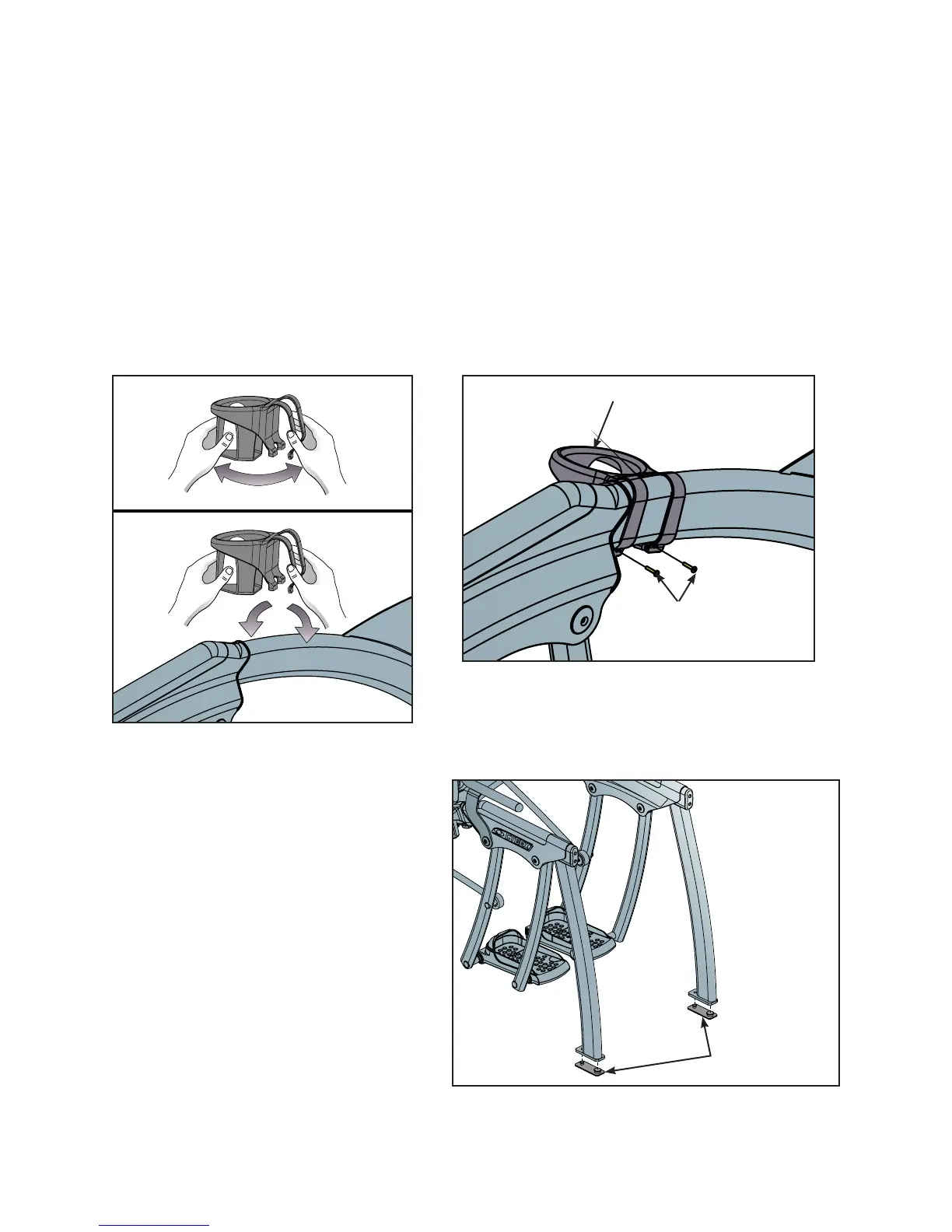

7. Attach the water bottle holder.
A. Hold the water bottle holder (#3) with two hands and gently pull outward and continue to pull
(hold open) during step 7B. See Figure 6.
B. Place the water bottle holder (#3) over the frame with the larger side outside of the frame as
shown in Figure 6.
NOTE: Water bottle holder may be placed on either side.
C. Using a Phillips head screwdriver, attach the water bottle holder (#3) to the frame with the two
8-16 x 0.75 screws (#12). See Figure 7. NOTE: Do not overtighten.
Figure 7
8. Attach the foot covers.
A. Have one person lift the unit
while a second person places
a foot cover (#4) under each
of the two back feet.
See Figure 8.
To Next Page
