CYBEX ATON 3S User Manual

14

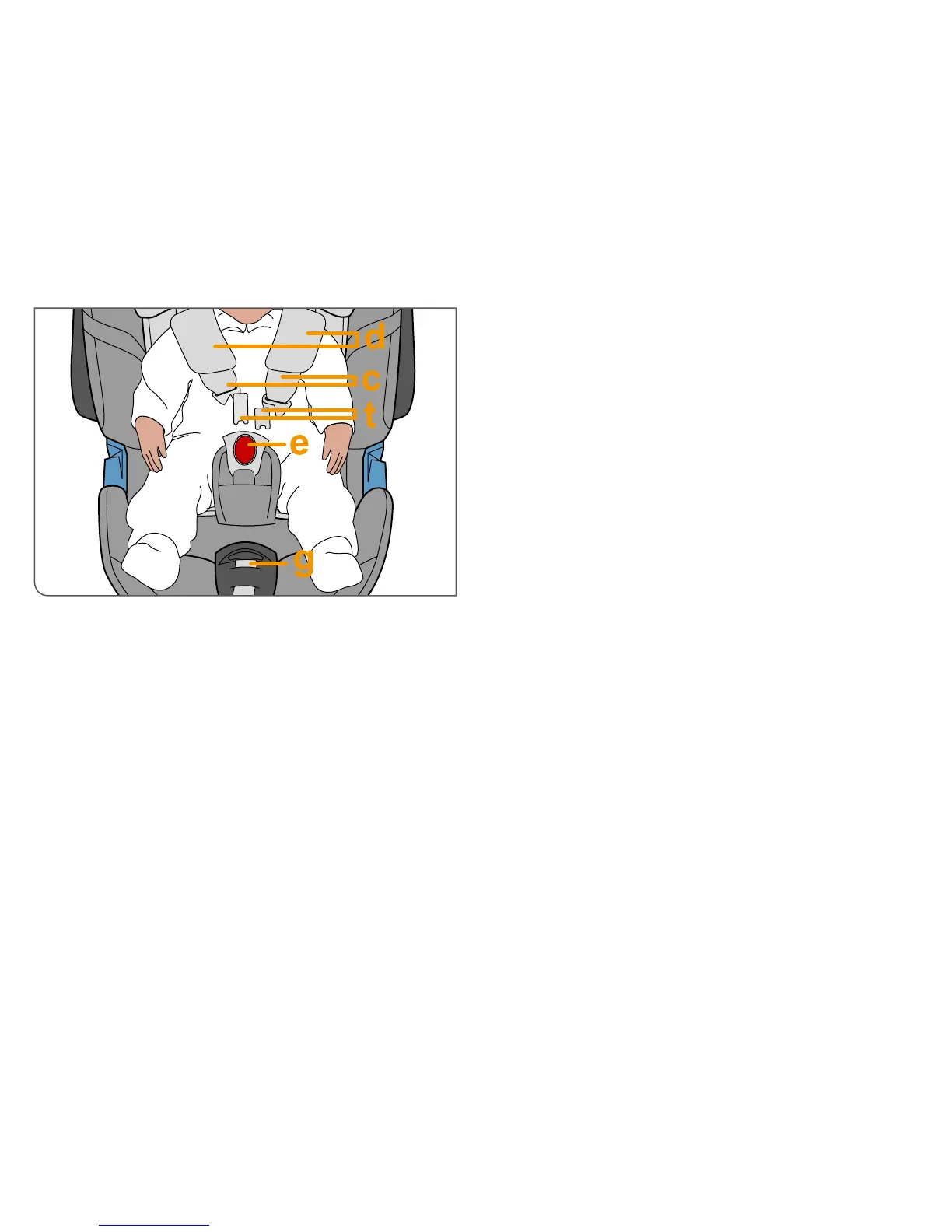

NOTE! Always pull on the shoulder belt c never pull on
the shoulder pads d.
NOTE! Make sure that the shoulder belts c are not
twisted or crossed over.
• Put the child in the child seat.
• Adjust the shoulder belts c to t exactly over your
child`s shoulders.
• Bring both belt tongues t together and lock them into
place in the belt buckle e with an audible “CLICK”.
• Gently and cautiously pull on the central adjuster belt g,
in order to tighten the shoulder belts c until they lie
against the body of your child.
NOTE! In order to gain optimum protection from the
Cybex ATON 3S, the shoulder belts c should lie as close
as possible to the body.

CYBEX ATON 3S Specifications

General

Product color	Charcoal
Car seat group	0+ (0 - 13 kg; 0 - 15 months)
Adjustable headrest	Yes

Weight and Dimensions

Depth	639 mm
Width	515 mm
Height	558 mm
Weight	4800 g
