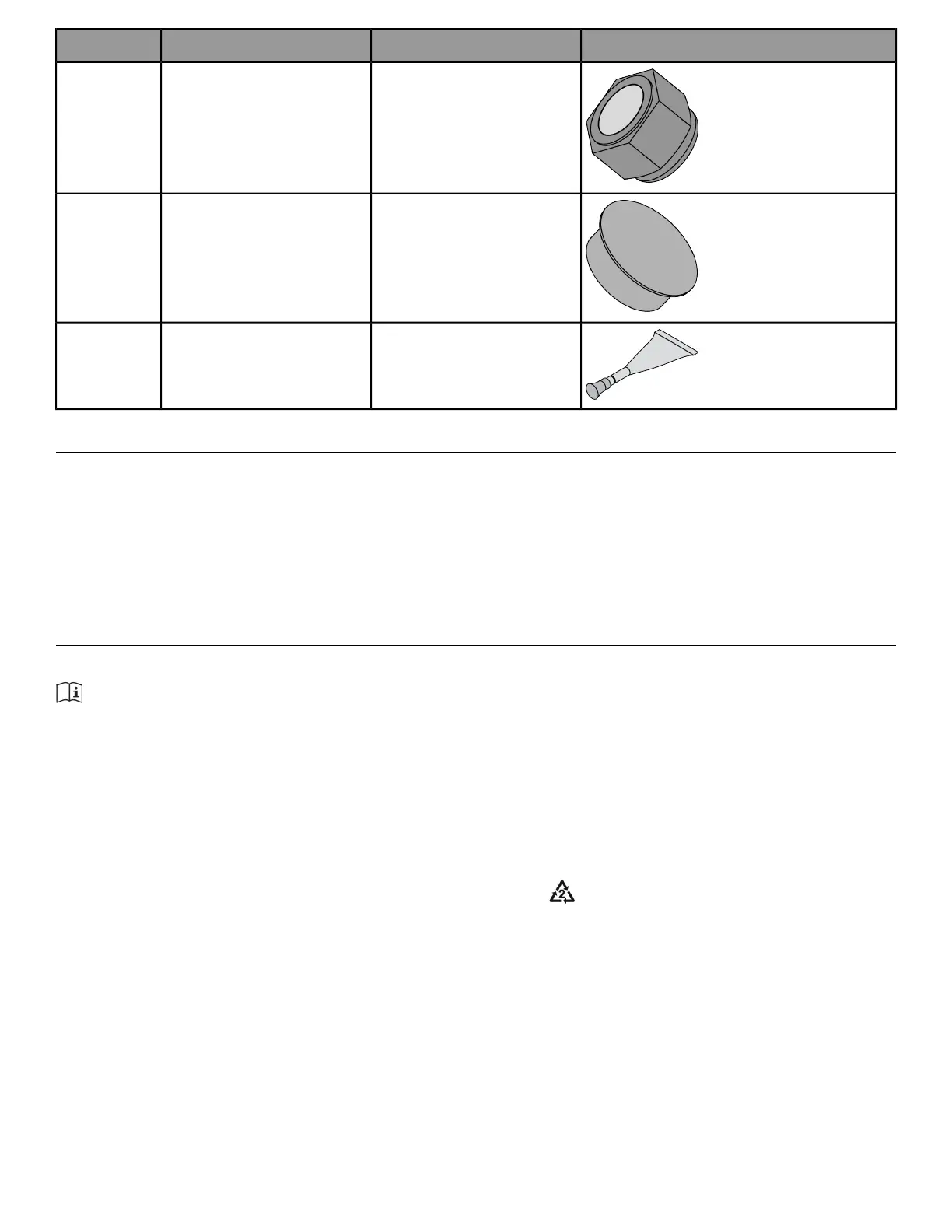

DiagramDescriptionPart NumberQty
Locknut .375-16, Nylon (Included
with 8810-101)
HN7049012
Insert, Plastic 1.00 Dia-11G
(Included with 8810-101)
PN6602002
Loctite #242 (Included with
8810-101)
YA0002011
Tools Required
• 9/16" Wrench
• 7/32” Allen wrench
• 3/4” Socket wrench
• Hammer
• 3/16” Pin punch
• Loctite
®
#242
Assembly Procedure
Two people will be required for this procedure.
TIP: Read and understand all instructions thoroughly before assembling this unit. Check all items carefully.
If there is damage, see the Customer Service section of this manual for proper procedure to return, replace,
or reorder parts.
If machine CAN fit through doorway
Two people will be required for this procedure
1. Move to desired location.
2. Remove shipping cones using a 3/4” socket or wrench.
3.
Remove bolt from shipping cone with hammer. Recycle cone.
4. Attach foot pads to each foot of frame.
5. If weight stack needs to be installed, follow procedure for installing weight plates and weight plate decal.
Securely anchor machine to floor
Owner should not allow equipment to be used until it is properly anchored as described below.
Page 11 of 27
