CYBEX Bravo 8800 User Manual

Yearly Procedures
Replace all cables and belts annually
Cable Adjustment
Tools Required
• 9/16" Wrench (2)
• Hammer
• 3/16” Pin punch
Four types of cable tension adjustment are used on Cybex Strength Systems:

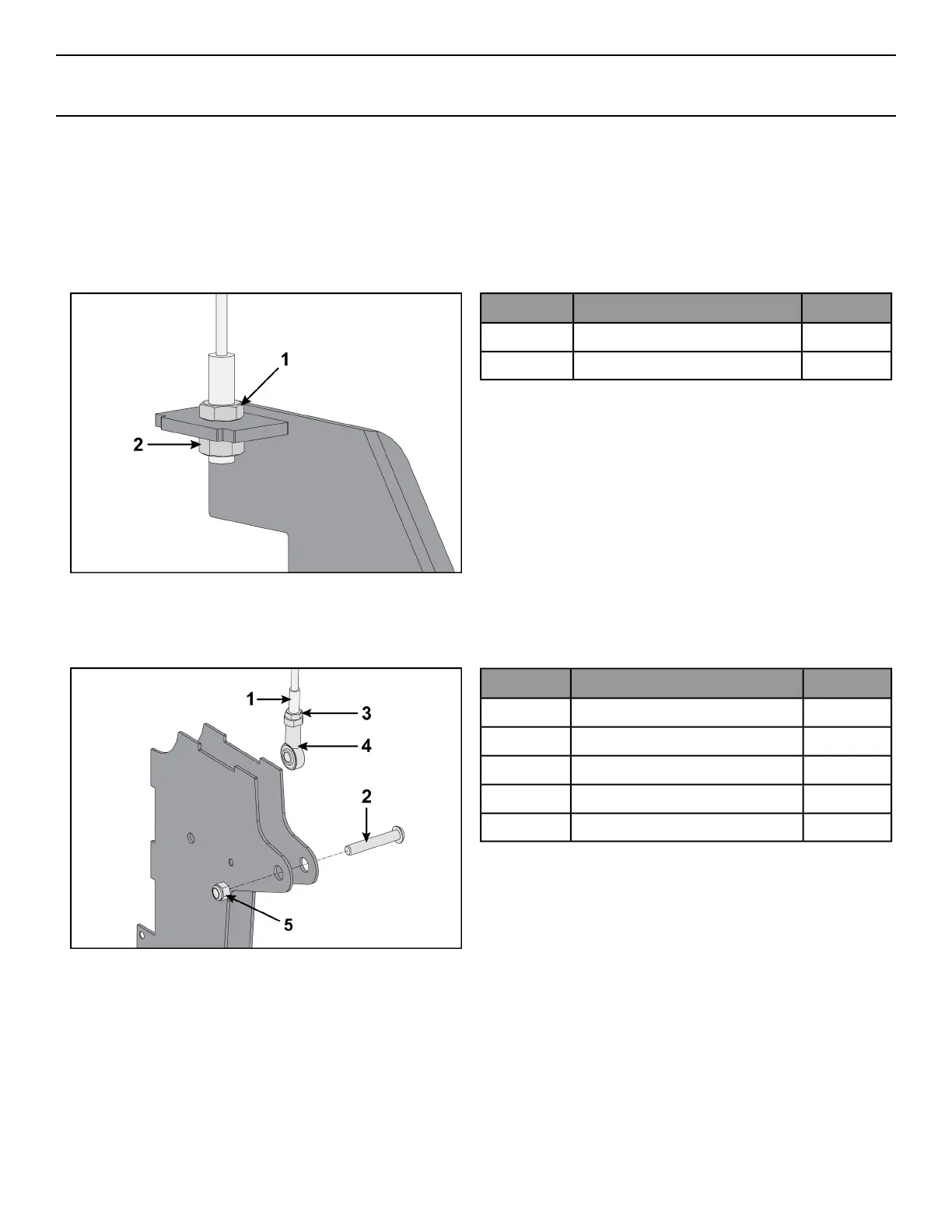

Jam Nut Adjustment
This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary
adjustment. The other end of the cable usually contains a roll pin adjustment.
Qty.DescriptionItem
1Jam nut1
1Tension adjustment nut2
Rod End Adjustment
This type of adjustment uses a socket head cap screw (SHCS) securing a cable rod end bearing to the machine.
Primary adjustment is by turning the rod end bearing. The other end of the cable usually contains a roll pin cable
adjustment.
Qty.DescriptionItem
1Cable end1
1SHCS2
1Jam nut3
1Cable rod end bearing4
1Nylon locknut5
Roll Pin Adjustment
This type of adjustment uses a roll pin and series of holes in the weight stack top weight connector.
Page 23 of 27
