CYBEX VR1 User Manual

Cybex VR1 Owner’s Manual
Assembly
Page 4-2
5. Securely anchor machine to the fl oor.
Securely anchor machine to the fl oor using the anchor holes provided in each machine.A.
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional
contractor.
NOTE: Use fasteners having a minimum of 500 lbs tensil capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame
not in contact with surface using fl at washers.
6. Verify proper operation.
7. Removing weight plates.
Using a 7/32” Allen wrench, remove the two Button Head Socket Cap Screws (BHSCS) A.
securing the top cap to the frame. See Figure 1.

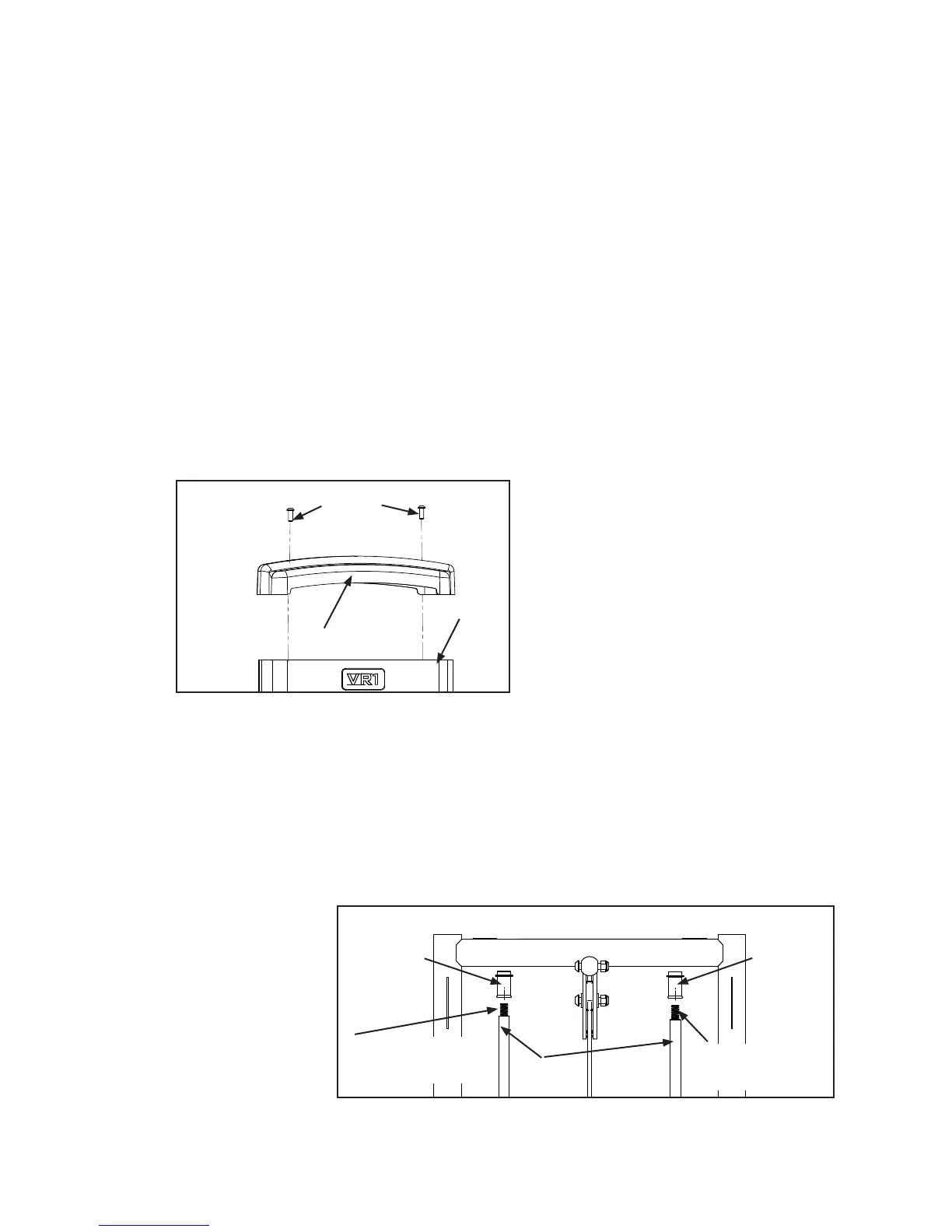

Figure 1
BHSCS
Top Cap
Remove top cap and BHSCS and set aside.B.
Carefully lift shroud up and out of machine. C.
Slide spring loaded guide rod cap down guide rod until cap is clear of frame. D. NOTE: Guide rod
cap is spring loaded.
Figure 2
Shroud
Compression
Spring
Guide
Rod Cap
Guide
Rods
Guide
Rod Cap
Compression
Spring
Slowly release E.
grasp of guide rod
cap. See Figure 2.
NOTE: Guide rod
cap contains a
compression spring
that will fl y if grasp
is not released
slowly.
