CYBEX VR1 User Manual

Assembly
Page 4-3
Cybex VR1 Owner’s Manual
Figure 3
Remove guide rod cap and spring and set aside.F.
Repeat steps 7D - 7F for other guide rod.G.
Using a 3/16” pin punch and hammer, carefully remove roll pin securing cable end to top weight H.
connector. See Figure 3.
Carefully lean guide rods slightly outward. I. NOTE: Excessive pressure on guide rods may
damage lower guide rod caps.
Slide top weight up and out of machine and carefully set aside.J.
Have an assistant hold guide rods vertical.K.
Carefully remove each weight plate and set aside.L.
Wipe guide rods clean over entire length. Lubricate with light coating of medium weight M.
automotive engine oil.
8. Installing weight plates.
Have an assistant hold guide rods vertical.A.
Carefully align weight plates (removed in step 7M) over guide rods and slowly lower each weight B.
plate. NOTE: Install weight plates in reverse order as removed in step 7M. NOTE: When
installing weight plates, position plates so wide edges of bushings face upward and narrow
edges of bushings face downward. See Figures 4A and 4B.

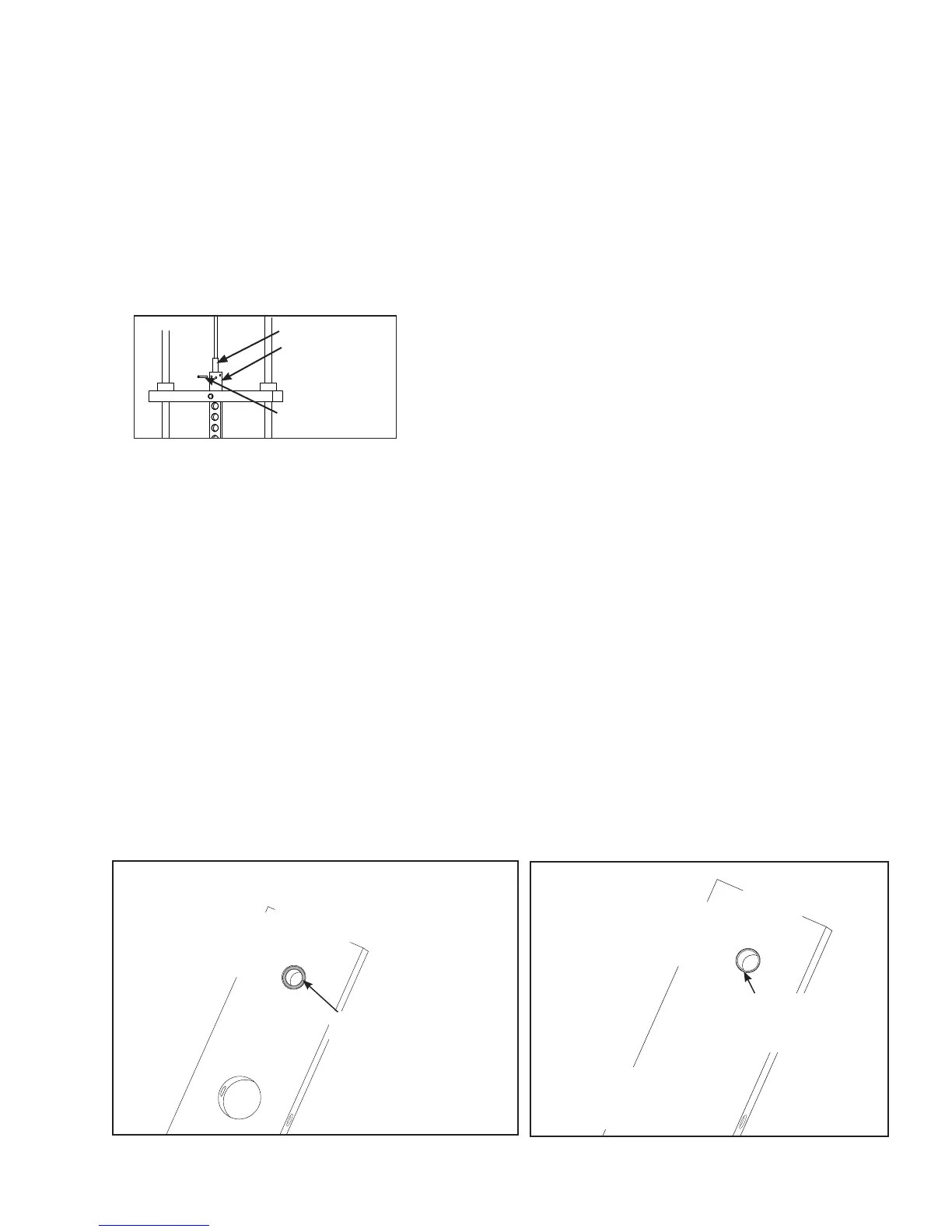

Cable End
Top Weight
Connector
Roll Pin
NARROW
bushing edge
WRONG
WIDE bushing
edge faces
upward
CORRECT
NOTE: The narrow
bushing edge must face
downward.
Figure 4A Figure 4B
