40
!
The red and green variation is not available if the selected output
resolution is 4K. This version of the pattern can’t display single pixel lines
in 4K resolutions, please use the Line On/Off-V 4K pattern.

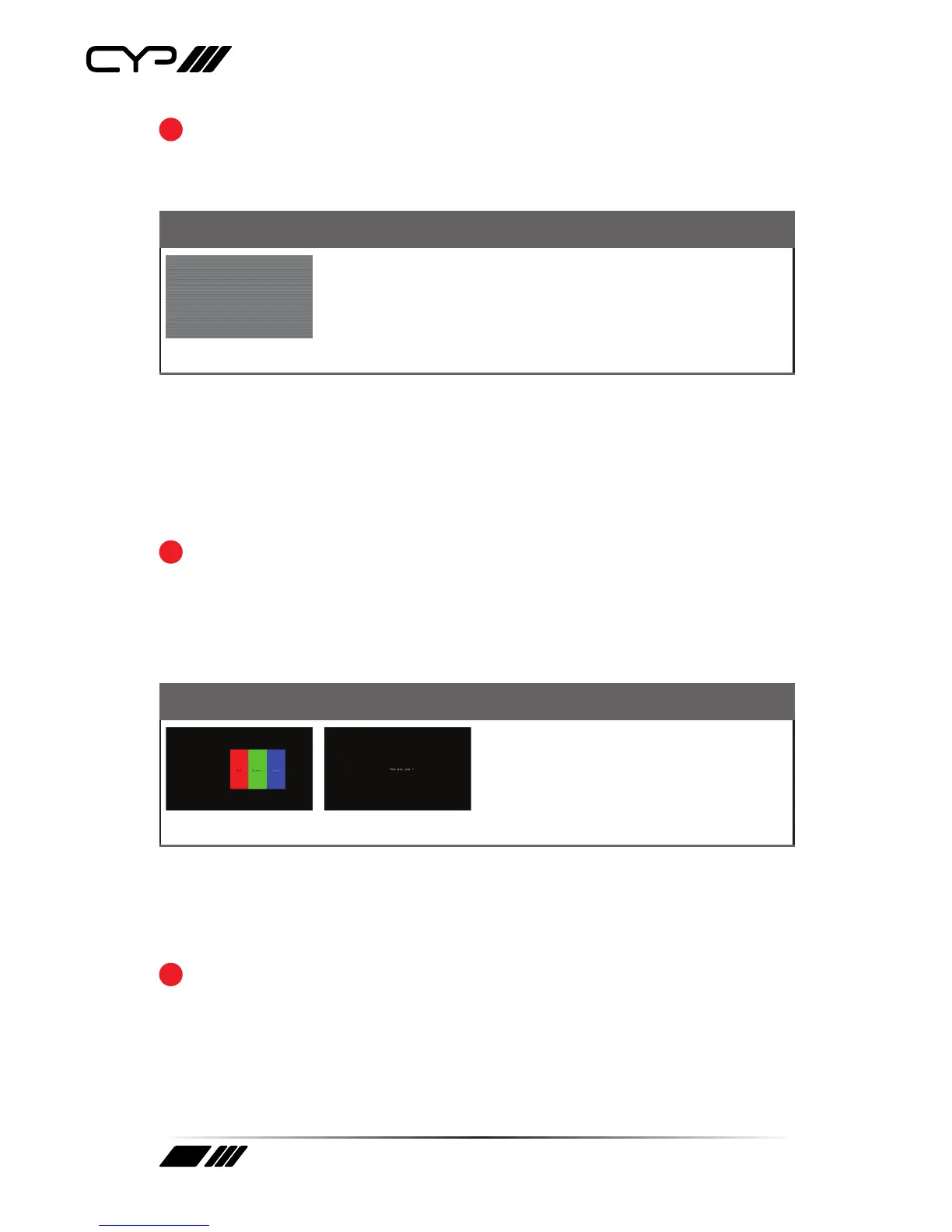

40. Line On/Off-V 4K
White & Black Lines
The Line On/Off-V 4K pattern generates an alternating pattern of single-
pixel vertical lines. This pattern can be used to analyse the horizontal pixel
resolution of your display. If the output appears to have mosaic patterns,
or appears to be a solid field (grey, white or black), then it is possible
that your display does not fully support the resolution you are currently
sending to it.
!
This pattern is only available for the following resolutions:
3840×2160@24/25/30Hz & 4096×2160@24Hz, and the colour space
will be forced to output as RGB with a colour depth of 8-bit. If a non-
supported resolution is selected the pattern will automatically change to
Line On/Off-V.
41. Motion-H (4 variations)
Slow/Fast RGB Block Slow/Fast String
The Motion-H patterns are a collection of horizontal motion tests. These
can be used to test your display’s pixel on/off response time. There are 4
variations: Slow red/green/blue block, fast red/green/blue, slow moving
sample text, fast moving sample text.
!
The contents of the text can be modified using an RS-232 or telnet
command and can be up to 20 characters long.
