III. Introduction to the GL60 Plus Gimbal Searchlight
The GL60 Plus Gimbal Searchlight weighs 750 grams and is rated
at 120 W. The optical imaging structure consists of multiple lenses,
with a 15° angle of illumination and an effective irradiation
distance of 150 m. With uniform brightness and high colour
consistency, it provides unprecedented aerial illumination for
drone operations at night. With the DJI SKYPORT V2 adapter ring, it
can be directly mounted on the DJI M300 RTK. By connecting to the
DJI Pilot APP, you can control the power switch, switch between
“normally on” and “Sharp flash” modes, and the light will
automatically follow the movement of the gimbal camera. The
GL60 Plus is the perfect partner for the DJI M300 RTK as it is
waterproof and dustproof and can work reliably in harsh weather
conditions; with an advanced automatic temperature control
system, the light attenuation is less than 5% after 1000 hours of
operation.

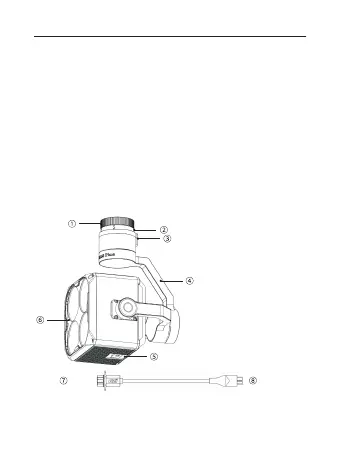

1.Dust cover
2.DJI SKYPORT V2 adapter ring
3.OSDK power supply port
4.Tri-axis stabilized gimbal
5.TF card slot cover
6.Light outlet
7.Power cable port 1 (connects to the OSDK end on top of the DJI M300 RTK)
8.Power cable port 2 (connects to the OSDK power supply port ③ of the GL60 Plus)
Port 1 Port 2
01 02 03 04 05 06
07 08 09 10 11 12 13 14
15 16 17 18
19 20 21 22
23 24 25 26 27 28 29 30
31 32 33
